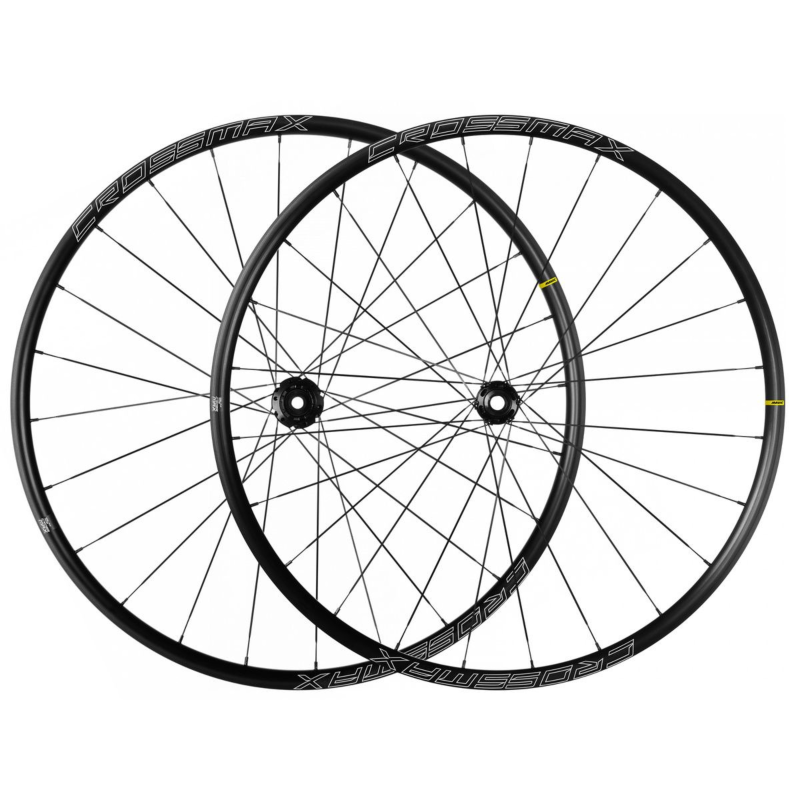

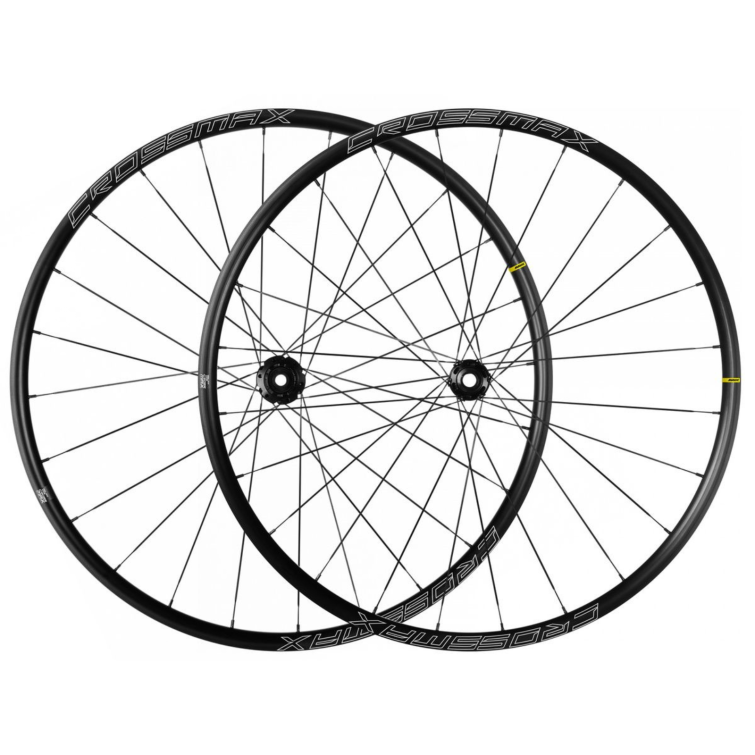

Mavic Crossmax 27.5 Boost Wheelset

The name Crossmax reflects a long history in the world of cross-country. The Mavic wheel Crossmax 27.5 is therefore strong, reliable, and tubeless-compatible thanks to its Maxtal rim, which is tubeless ready and equipped with an airtight rim tape.

Its hookless, asymmetric 25 mm-wide rim features numerous patented technologies, including SUP welding, which provides an even stronger, cleaner joint.

For the spokes, Mavic opted for a total of 24 straight, bladed, butted spokes, laced in pairs

Finally, the Crossmax is equipped with the new Infinity hub with an ID360-type double-ratchet freehub body, which is highly reliable and provides quick engagement for efficient acceleration. Designed to accommodate 6-bolt or Center Lock brake rotors, depending on the version selected, these hubs are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come configured for 12x148 mm Boost thru-axles.

Rim

• Material: Maxtal
• Material: S6000 aluminum
• Hookless asymmetric rim profile
• Tire: UST Tubeless and inner tube
• Internal width: 25 mm
• 27.5" size ETRTO: 584x25TSS
• SUP technology (welded and machined joint)

Spokes

• Material: steel
• Shape: straight, bladed, butted
• Nipples: ABS steel
• Count: 24
• Cross-laced in pairs, without spoke contact

Hub

• Hub available with 6-bolt or Center Lock (R) rotor mount
• Front axle: 15 x 110 mm Boost
• Rear axle: 12 x 148 mm Boost
• Ratchet tooth count: 24
• Instant Drive 360 freehub body
• QRM Auto (automatic bearing adjustment)
• Available freehub bodies
    - Standard Aluminum (Shimano-Sunrace 9-10-11-speed / Sram 9-10-speed, NX 11-speed, and NX Eagle 12-speed)
    - XD (Sram 11-speed and 12-speed / E13 10-speed and 11-speed)
    - Microspline (Shimano 12-speed)

Use:

• ASTM CATEGORY 3: CROSS COUNTRY
• Recommended tire sizes: 50 to 76 mm (2.00" to 3.0")
• Max. weight: 150 kg (including rider and bike)

Key technologies

• QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic adjustment)
• ID360 (faster engagement)
• SUP (machined weld)

Warranty

• 2 years
• Extendable to 3 years by registering for the Mavic Care program within two months of purchase

Included

• UST valves and accessories
• Pre-installed tubeless rim tape
• 2 replacement spokes per wheel

Manufacturer weight: 1680 g
