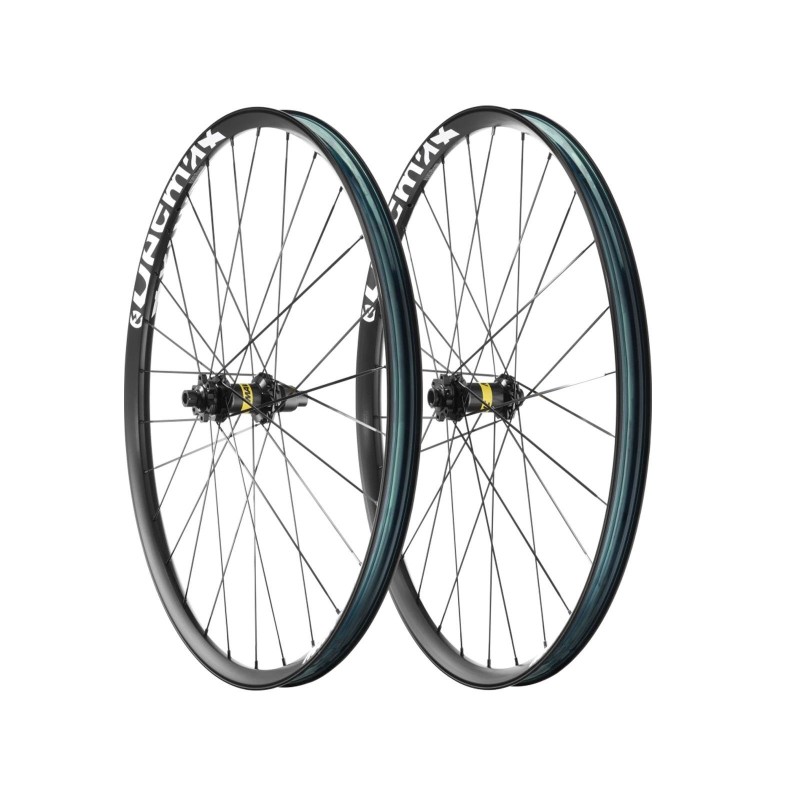

Mavic E-Deemax 29 Boost Wheelset

Mavic E-Deemax 29 is designed and engineered for the demands of 29" E-MTB. This Tubeless ready wheel is delivered with pre installed tubeless tape and comes with a tubeless valve and 2 replacement spokes for a very interesting price

Its 30 mm inner width alloy rim includes a lot of patended technologies. PFP (Pinch Flat Protection) offer a wider contact surface at the top of sidewall to significantly reduce the risk of tire cuts and punctures and Black Shield treatment protects the rims against impacts and scratches.

Mavic opted for a total of 28 straight-pull, flat, double butted, steel spokes and laced per 3 with no contact

E-Deemax 29 is built around the new Infinity hub that includes ID360 double ratchet system for quick engagement and acceleration.  You can purchase the wheel in either 6 bolts or either Centerlock disc mount and in one of the 3 free hub compatibilty Shimano HG9, XD or Micro Spline. It comes in Boost 12x148 mm spacing

Rim

• Material: Maxtal
• Material: S6000 Aluminum
• E-Bike specific rim profile
• Tire: UST Tubeless and tubetype
• Internal width: 30 mm
• Black Shield treatment (protects your rim against impacts and scratches)
• ETRTO size 29": 622x30TC
• Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
• Asymmetrical rim design
• SUP

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: aluminum
• Count: 28
• Lacing: crossed 3, contactless

Hub

• Hub available with 6-bolt or center lock (R) brake rotors
• Axle front : 15x110 Boost
• Axle rear : 12X148 Boost
• 24 teeth ratchet
• Instant Drive 360
• QRM Auto
• Freehub options
    - Standard Aluminum (Shimano-Sunrace 9-10-11S / Sram 9-10S, NX 11S and NX Eagle 12S)
    - XD (Sram 11S and 12S / E13 10S and 11S)
    - Microspline ( Shimano 12S)

Use :

• ASTM CATEGORY 5 : GRAVITY RIDING FOCUSED ON THE DESCENT
• Recommended tyre sizes : 52mm to 76mm (2.35" to 3.00")
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 180kg, Ebike included

Technologies

• QRM Auto (cartridge bearing with double sealed with C3 internal clearance)
• ID360 (double ratchet system for quick engagement and acceleration)
• Black Shield (protects the rims against impacts and scratches)
• PFP (Pinch Flat Protection) with wider contact surface at the top of sidewall to significantly reduce the risk of tire cuts and punctures
• SUP (Stronger and smoother joint)

Warranty

• 2 years
• Can be extended to 3 years by registring in the Mavic Care Program (max 2 month after the purchase)

Comes with

• UST valves and accessories
• 2 replacement spokes with each wheel
• Tubeless rim tape pre installed

Mavic weight : 2160 gr
