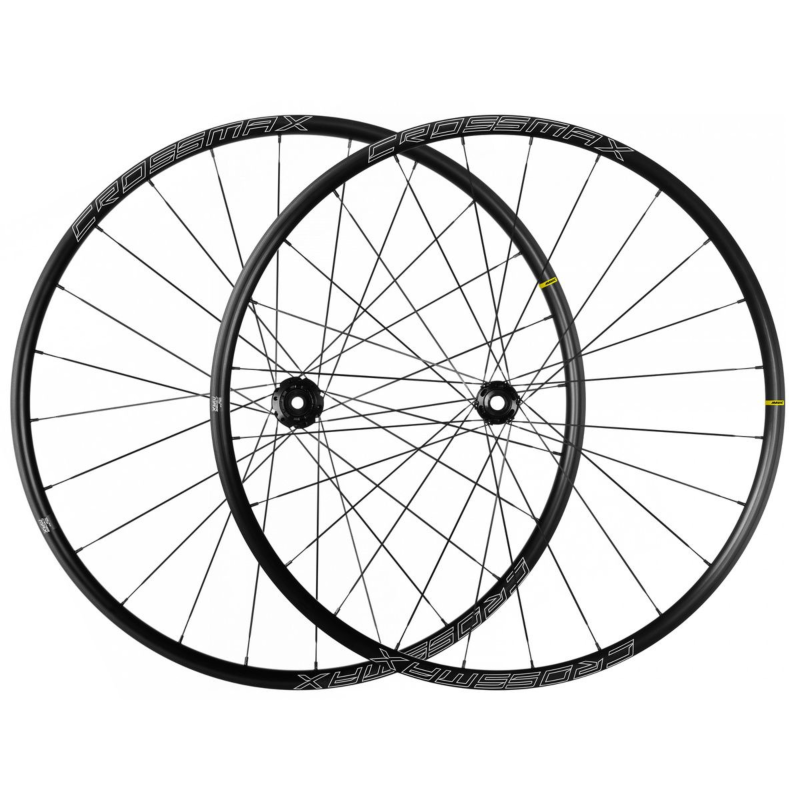

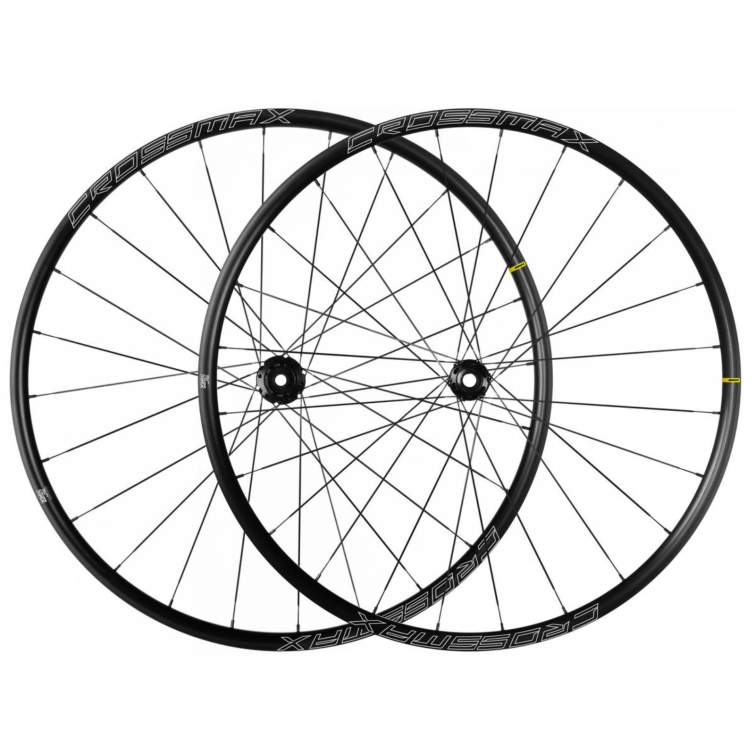

Mavic Mavic Crossmax 29 Wheelset

The name Crossmax echoes a long history in the world of cross-country. The Mavic wheel Crossmax 29 is therefore strong, reliable, and tubeless-ready thanks to its Maxtal rim tubeless ready fitted with airtight rim tape.

Its hookless, asymmetric rim with a 25 mm width benefits from numerous patented technologies, including SUP welding, which provides an even stronger, better-finished joint .

For the spoke pattern, Mavic chose a total of 24 straight, flat, butted spokes, laced in a 2-cross pattern

Finally, the Crossmax features the new Infinity hub with an ID360-type double-ratchet freehub body, which is highly reliable and offers fast engagement for efficient acceleration. Designed for 6-bolt brake rotors,  these hubs are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come configured for 12x142 mm thru-axles and 9x135 mm quick-release axles,  with adapters sold separately.

Rim

• Material: Maxtal
• Material: S6000 aluminum
• Hookless, asymmetric rim profile
• Tire: UST Tubeless and tube-type
• Internal width: 25 mm
• Size 29" ETRTO: 622x25TSS
• SUP technology (machined welded joint)

Spokes

• Material: steel
• Shape: straight, flat, butted
• Nipples: ABS steel
• Count: 24
• 2-cross lacing, no contact

Hub

• Hub available with 6-bolt disc mount
• Front axle: 15 x 100 mm  and 9x100 mm (with adapters sold separately)
• Rear axle: 12 x 142 mm and 9x135 mm (with adapters sold separately)
• Ratchet tooth count: 24
• Instant Drive 360 freehub body
• QRM Auto (automatic bearing adjustment)
• Available freehub bodies
    - Standard Aluminum (Shimano-Sunrace 9-10-11-speed / Sram 9-10-speed, NX 11-speed and NX Eagle 12-speed)
    - XD (Sram 11-speed and 12-speed / E13 10-speed and 11-speed)
    - Microspline ( Shimano 12-speed)

Use:

• ASTM CATEGORY 3: CROSS COUNTRY
• Recommended tire sizes: 50 to 76 mm (2.00" to 3.0")
• Max. weight: 150 kg (including rider and bike weight)

Key technologies

• QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic adjustment)
• ID360 (faster engagement)
• SUP (machined weld)

Warranty

• 2 years
• Extendable to 3 years by registering for the Mavic Care program within two months of purchase

Included

• UST valves and accessories
• 12x142 mm and 15x100 adapters included (installed)
• Pre-installed tubeless rim tape
• 2 spare spokes per wheel

Manufacturer weight: 1770 gr
