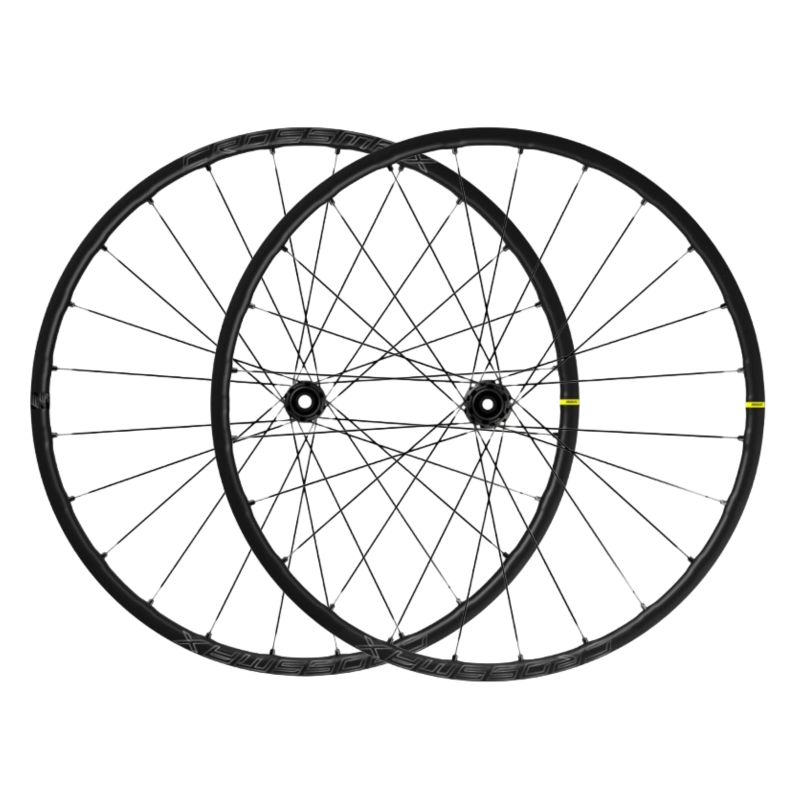

The Crossmax SL S 29 is designed for Cross Country (XC) riding. Made from aluminum alloy with ISM 4 D machining, this wheel is lightweight, efficient, and features the world’s simplest tubeless system.
Crossmax SL S 29": lightweight, efficient, and built with aluminum alloy for Cross Country riding
The Crossmax SL S 29 is designed for Cross Country riding. Made from aluminum alloy, this wheel is lightweight and efficient, and features the world’s simplest tubeless system, plus ISM machining to save even more weight.
Its rim has a 25 mm internal width and benefits from numerous patented technologies. FORE construction makes the rim completely airtight without adding a specific rim strip, while ISM machining removes material from strategic areas to reduce weight without sacrificing strength. Finally, the Black Shield treatment offers increased protection against impacts and scratches.
For the spoke layout, Mavic has opted for a total of 24 straight, flat, bladed spokes with Fore technology, laced in pairs without contact.
Finally, the Crossmax SL S is equipped with the new Infinity hub with an ID360 double-ratchet freehub body. It’s highly reliable and provides fast engagement for efficient acceleration. Designed for 6-bolt or Center Lock brake rotors, depending on the version selected, these hubs are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come configured for Boost 12x148 mm thru-axles.
Technical specifications
Rim
Material: Maxtal
Material: S6000 aluminum
Weight reduction: ISM
Asymmetric hookless rim profile
Tire: UST Tubeless and tube type
Internal width: 25 mm
Black Shield treatment (rim protection against impacts and scratches)
29" size ETRTO: 622x25TSS
Fore technology (the rim doesn’t need rim tape to be airtight)
SUP technology (welding process with machining)
Customization sticker kit available separately
Spokes
Material: steel
Shape: straight, flat, bladed
Nipples: integrated Fore aluminum
Quantity: 24
2-cross lacing, no contact
Hub
Hub available with 6-bolt or Center Lock (R) rotor mount
Front axle: 15x110 mm Boost
Rear axle: 12 x 148 mm Boost
Ratchet tooth count: 24
Instant Drive 360 freehub body
QRM Auto (automatic bearing adjustment)
Freehub bodies available - Standard Aluminum (Shimano-Sunrace 9-10-11-speed / Sram 9-10-speed, NX 11-speed, and NX Eagle 12-speed) - XD (Sram 11- and 12-speed / E13 10- and 11-speed) - Microspline (Shimano 12-speed)
Use
ASTM CATEGORY 3: CROSS COUNTRY
Recommended tire sizes: 50 to 76 mm (2.00" to 3.0")
Max weight: 150 kg (including rider and bike)
Key technologies
Fore (completely airtight rim that eliminates the need for specific rim tape when installing a tubeless tire)
QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic adjustment)
ID360 (faster engagement)
ISM (reduced wheel weight and inertia through precision rim machining)
Black Shield (treatment that provides twice the rim protection against impacts and scratches)
SUP (machined weld)
Warranty
2 years
Extendable to 3 years by registering for the Mavic Care program within two months of purchase
