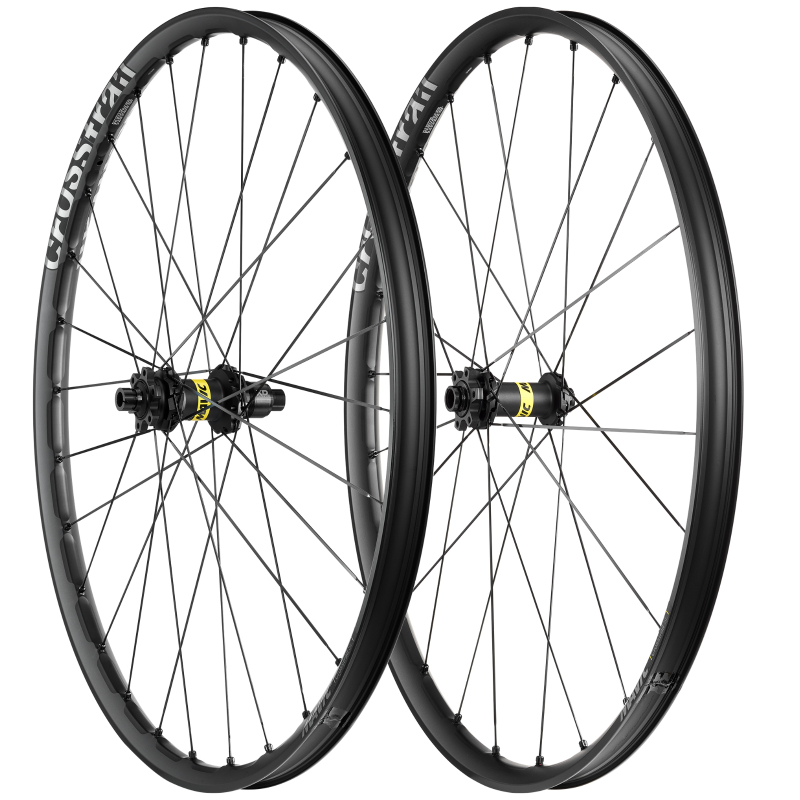

Mavic Crosstrail SL 29" Wheelset

The new Mavic Crosstrail SL 29 is an ultra-versatile, ultra-durable trail wheelset

Its rim has a 30 mm internal width and features numerous patented technologies. FORE construction makes the rim completely airtight without the need for a rim strip, while ISM machining removes material in strategic areas to reduce weight without sacrificing strength. Finally, the Black Shield finish provides extra protection against impacts and scratches.

For the spokes, Mavic opted for a total of 24 (front) and 28 (rear) straight, flat, butted spokes with Fore technology, crossed in pairs (front) and in threes (rear) without contact

Finally, the Crosstrail SL is equipped with the new Infinity hub with a ID360-type double ratchet freehub body. It's highly reliable and offers fast engagement for efficient acceleration. Designed to accommodate 6-bolt or Center Lock brake rotors, depending on the version selected, these hubs are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come set up for Boost 12x148 mm thru-axles

Rim

• Material: Maxtal
• Material: S6000 aluminum
• Weight reduction: ISM
• Asymmetrical rim profile
• Tire: UST Tubeless and tube-type
• Internal width: 30 mm
• Black Shield finish (rim protection against impacts and scratches)
• Size 29" ETRTO: 622x30TC
• Fore technology (the rim does not require a rim strip to be airtight)
• SUP technology (machined weld process)
• Customization sticker kit available separately

Spokes

• Material: steel
• Shape: straight, flat, butted
• Nipples: integrated M7 Fore aluminum
• Quantity: 24 (front) and 28 (rear)
• Spokes crossed in pairs (front) and in threes (rear) without contact

Hub

• Hub available with 6-bolt or Center Lock (R) rotor mounting
• Front axle: 15 x 110 mm Boost
• Rear axle: 12 x 148 mm Boost
• Ratchet tooth count: 24
• Instant Drive 360 freehub body
• QRM Auto (automatic bearing adjustment)
• Available freehub bodies
    - Standard Aluminum (Shimano-Sunrace 9-10-11-speed / Sram 9-10-speed, NX 11-speed, and NX Eagle 12-speed)
    - XD (Sram 11-speed and 12-speed / E13 10-speed and 11-speed)
    - Microspline (Shimano 12-speed)

Use:

• ASTM CATEGORY 4: ENDURO AND TRAIL
• Recommended tire sizes: 60 to 76 mm (2.35" to 3.0")
• Max. weight: 135 kg (including rider and bike)

Key technologies

• Fore (completely airtight rim that eliminates the need for a specific rim strip when installing a tubeless tire)
• QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic bearing adjustment)
• ID360 (faster engagement)
• ISM (reduces wheel weight and inertia through precision rim machining)
• Black Shield (finish that protects the rim twice as well against impacts and scratches)
• SUP (machined weld)

Warranty

• 2 years
• Extendable to 3 years by registering for the Mavic Care program within two months of purchase

Included

• UST valves and accessories
• 2 spare spokes per wheel
• Fore spoke wrench

Manufacturer's weight: 1980 gr
