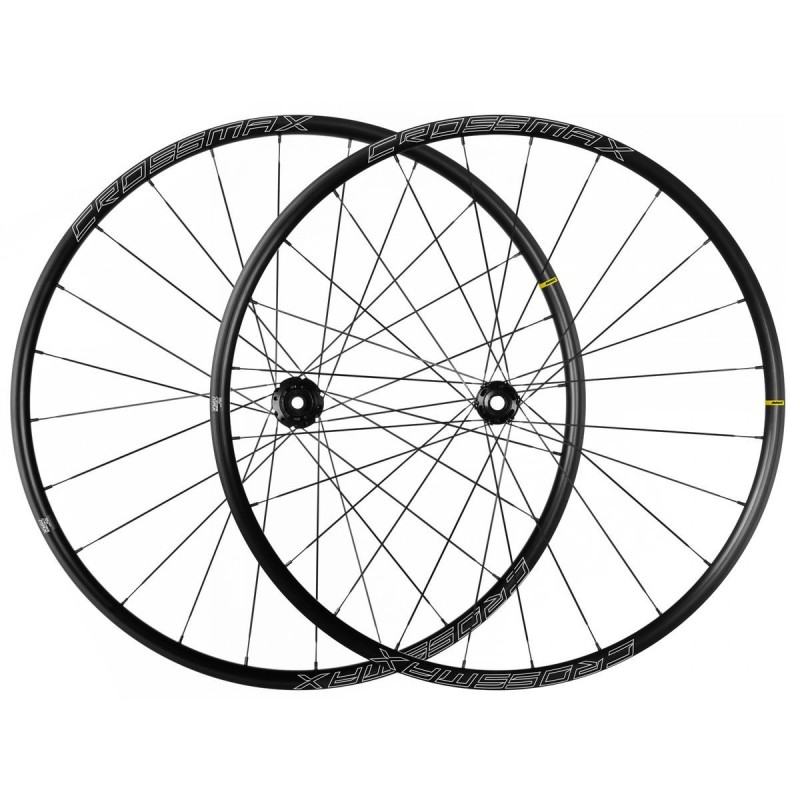

Mavic Mavic Crossmax 29 Boost Wheelset

The Crossmax name echoes a long history in the world of cross-country. The Mavic wheel Crossmax 29 is therefore strong, reliable, and tubeless-ready thanks to its Maxtal tubeless ready rim fitted with an airtight rim tape.

Its hookless, asymmetric rim with a 25 mm width features numerous patented technologies, including SUP welding, which provides an even stronger, better-finished joint .

For the spokes, Mavic opted for a total of 24 straight, flat, bladed spokes, laced in pairs

Finally, the Crossmax features the new Infinity hub with an ID360 double-ratchet freehub body, which is highly reliable and delivers fast engagement for efficient acceleration. Designed for 6-bolt or Center Lock brake rotors, depending on the version selected, these hubs are compatible with Shimano HG9, XD, and Micro Spline freehub bodies and come set up for 12x148 mm Boost thru-axles

Rim

• Material: Maxtal
• Material: S6000 aluminum
• Hookless asymmetric rim profile
• Tire: UST Tubeless and tube-type
• Internal width: 25 mm
• 29" size ETRTO: 622x25TSS
• SUP technology (machined welded joint)

Spokes

• Material: steel
• Shape: straight, flat, bladed
• Nipples: ABS steel
• Quantity: 24
• Paired cross-lacing, no contact

Hub

• Hub available with 6-bolt or Center Lock (R) rotor mount
• Front axle: 15  x 110 mm Boost
• Rear axle: 12 x 148 mm Boost
• Ratchet tooth count: 24
• Instant Drive 360 freehub body
• QRM Auto (automatic bearing adjustment)
• Available freehub bodies
    - Standard Aluminum (Shimano-Sunrace 9-10-11v / Sram 9-10v, NX 11v and NX Eagle 12v)
    - XD (Sram 11v and 12v / E13 10v and 11v)
    - Microspline ( Shimano 12-speed)

Use:

• ASTM CATEGORY 3: CROSS COUNTRY
• Recommended tire sizes: 50 to 76 mm (2.00" to 3.0")
• Max. weight: 150 kg (including rider and bike weight)

Key technologies

• QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic adjustment)
• ID360 (faster engagement)
• SUP (machined weld)

Warranty

• 2 years
• Extendable to 3 years by registering for the Mavic Care program within two months of purchase

Includes

• UST valves and accessories
• Pre-installed tubeless rim tape
• 2 spare spokes per wheel

Manufacturer weight: 1770 gr
