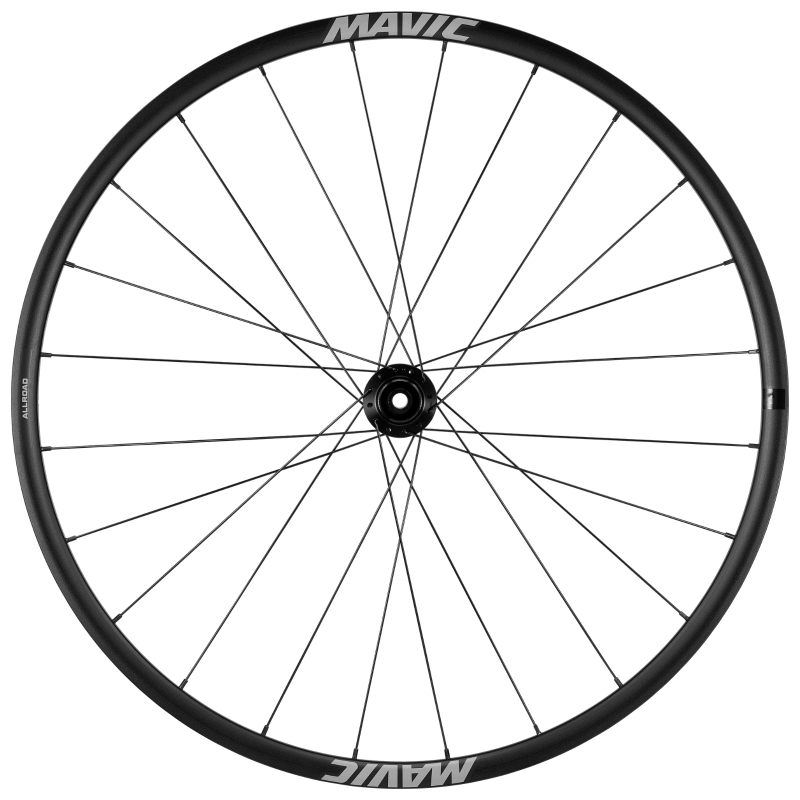

Mavic Allroad Rear Wheel

The Mavic Allroad rear wheel is the ideal choice for refreshing or upgrading the rear end of your gravel or endurance road bike. Featuring a wide 25 mm internal-width aluminum rim, the ultra-responsive Instant Drive 360 freehub system, and a pre-installed tubeless rim tape, this wheel combines durability, comfort, and optimal power transfer on both pavement and rough trails.

Mavic Allroad rear wheel highlights

• 25 mm internal width: Provides ideal tire support for mounting wide tires (29 mm to 64 mm) at lower pressures, delivering more grip and comfort.
• Instant Drive 360 freehub body: Dual-pawl system delivers ultra-fast engagement (9°) and maximum torque transfer during accelerations.
• Tubeless-ready: Traditional rim bed equipped with pre-installed airtight rim tape and supplied with its UST valve.
• Strong, durable construction: S6000 aluminum alloy rim paired with 24 double-crossed steel spokes to absorb impacts and withstand heavy braking forces.
• Center Lock disc brake: Ensures consistent, controllable braking power in all weather conditions.
• French Mavic reliability: Built to last with self-adjusting QRM sealed cartridge bearings.

Technical specifications

• Position: Rear.
• Use: Gravel, All-Road, Endurance, Bikepacking.
• Rim material: S6000 aluminum.
• Rim depth: 21 mm.
• Internal width: 25 mm
• Freehub system: Instant Drive 360 (ID360).
• Disc mount: Center Lock (AFS).
• Thru-axle: 12x142 mm (convertible to 9x135 mm quick release with adapters).
• Manufacturer's weight: 1,035 g.

Construction and materials

• Rim: S6000 aluminum
• Spokes: 100% steel (round and J-bend)
• Hub: Aluminum body and axle
• Bearings: Sealed cartridge (QRM technology)

Maintenance tips

• Clean the wheel with fresh water and a sponge or soft cloth (avoid directing a high-pressure spray at the hub and freehub).
• Regularly check the condition of the tubeless sealant (replace every 3 to 6 months).
• Lubricate the ID360 freehub mechanism only with the recommended Mavic-specific grease.

Compatibility and installation

To get the most out of your Mavic Allroad rear wheel, follow the recommended installation and tire guidelines.

• Recommended tire size: 28 mm to 64 mm (1.1" to 2.5").
• Tire type: Tubeless Ready (UST) or Tube Type (with inner tube).
• Rim tape: Tubeless rim tape pre-installed at the factory.
• Freehub body:
    - Shimano Standard HG for Shimano 10/11-speed and SRAM 10/11/12-speed cassettes
    - SRAM XDR for Sram 12- and 13-speed cassettes in XDR format
    - MicroSpline for Shimano 12-speed cassettes
    - Campagnolo for the brand's cassettes
• Weight limit: Maximum supported bike weight: 135 kg (including bike).

Tubeless installation (UST)

• Installing the tire: Install the supplied UST valve, mount your Tubeless Ready tire, add the recommended amount of sealant, and inflate using a floor pump or compressor.
• Inflation pressure: Never exceed the maximum pressure indicated on the rim and tire.
