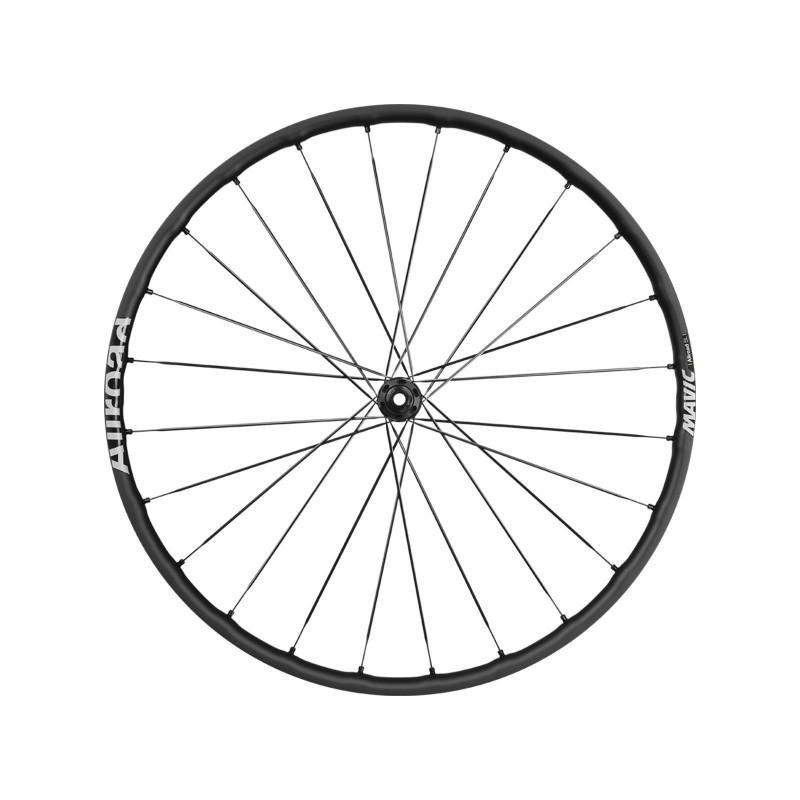

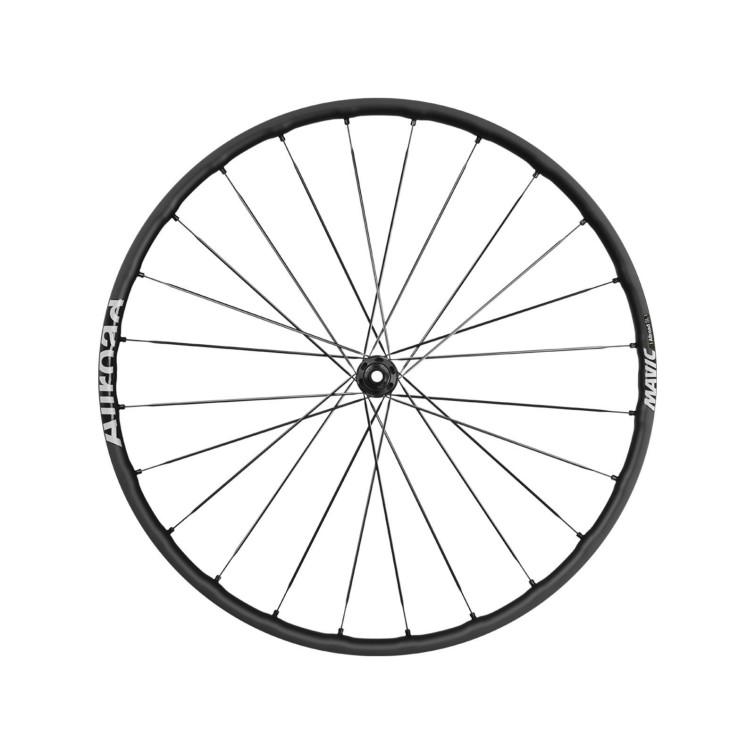

Mavic Allroad SL 700 Rear

The Mavic Allroad SL rear wheel is designed to deliver an ultra-smooth, fast, and responsive ride on challenging gravel trails, rough roads, and bumpy paths. Featuring a Maxtal aluminum rim machined with ISM4D technology, a 25 mm hookless internal width, and a native Fore Tubeless design that requires no rim tape, this rear wheel combines exceptional lightness, maximum strength, and instant power transfer.

Mavic Allroad SL rear wheel highlights

• ISM4D machining & Black Shield treatment: Removes excess material to maximize peripheral weight savings while providing enhanced protection against rock impacts and scratches.
• Fore technology (tubeless, no rim tape): Un-drilled upper rim bridge makes the rim 20% stiffer, fully airtight, and saves 30 g of rim tape per wheel.
• 25 mm hookless internal width (TSS): Hookless profile optimized to accommodate a wide range of tubeless tires from 29 mm to 64 mm at low pressures.
• Patented aerodynamic spokes: Straight, bladed aero spokes deliver exceptional responsiveness and optimal torque transfer during accelerations.
• Instant Drive 360 freehub & Infinity hub: Ultra-fast 9° engagement via a dual-pawl system and optimized, non-contact spoke lacing.
• QRM Auto bearings: Sealed cartridge bearings with automatic adjustment ensure play-free rotation and long-lasting performance.

Technical specifications

• Position: Rear.
• Riding style: Gravel, All-Road, Bikepacking, Endurance (ASTM Category 2).
• Rim material: Maxtal aluminum alloy (SUP welded).
• Rim height: 22 mm.
• Internal width: 25 mm (ETRTO 622x25TSS, hookless profile).
• Rim construction / drilling: Fore technology (24 holes, no drilling through the upper rim bridge).
• Freehub technology: Instant Drive 360 (ID360, 9° engagement / 40 teeth).
• Freehub body included: Shimano / SRAM HG Road.
• Rotor mount: Center Lock® only.
• Thru-axle: 12x142 mm (convertible to a QR quick release with adapters, not included).
• Spoke type: 24 straight, bladed, butted, anti-rotation stainless steel spokes (2-cross).
• Manufacturer weight: 882 g.

Materials and construction

• Rim: 100% Maxtal aluminum alloy with matte Black Shield finish
• Spokes: 100% stainless steel (M7 brass nipples)
• Hub: Aluminum body and axle (Infinity design)
• Bearings: Sealed cartridge bearings (QRM Auto technology)

Care instructions

• Clean the wheel with fresh water and a sponge or soft cloth (avoid spraying high-pressure water directly at the hub and freehub).
• Check and replace the tubeless sealant regularly (every 3 to 6 months).
• Lubricate the ID360 freehub mechanism only with the recommended Mavic-specific grease.

Compatibility, tires, and installation

To ensure optimal performance and safety on your gravel rides, follow the tubeless installation and tire pressure recommendations.

• Approved tire width: Tubeless Ready tires from 29 mm to 64 mm (recommended widths: 30 mm to 64 mm).
• Tire compatibility: Tubeless Ready tires only (TSS / Hookless profile). Make sure your tires are approved for hookless rims by the tire manufacturer.
• Maximum approved pressures: 29 mm tire: max. 4.19 Bar / 60.8 PSI — 64 mm tire: max. 2.45 Bar / 36 PSI.
• Freehub body: Shimano/SRAM HG Road or SRAM XDR.  (Compatible with Campagnolo or Micro Spline via optional freehub bodies).
• Weight limit: Maximum bike weight capacity: 135 kg (including bike).

Package contents and tubeless installation

• Included accessories: User guide, UST valve (not installed), and 2 multifunction adjustment wrenches.
• Fore Tubeless advantage: No rim tape required. Install the included UST valve directly, mount your Tubeless Ready tire, and add the recommended amount of sealant.
