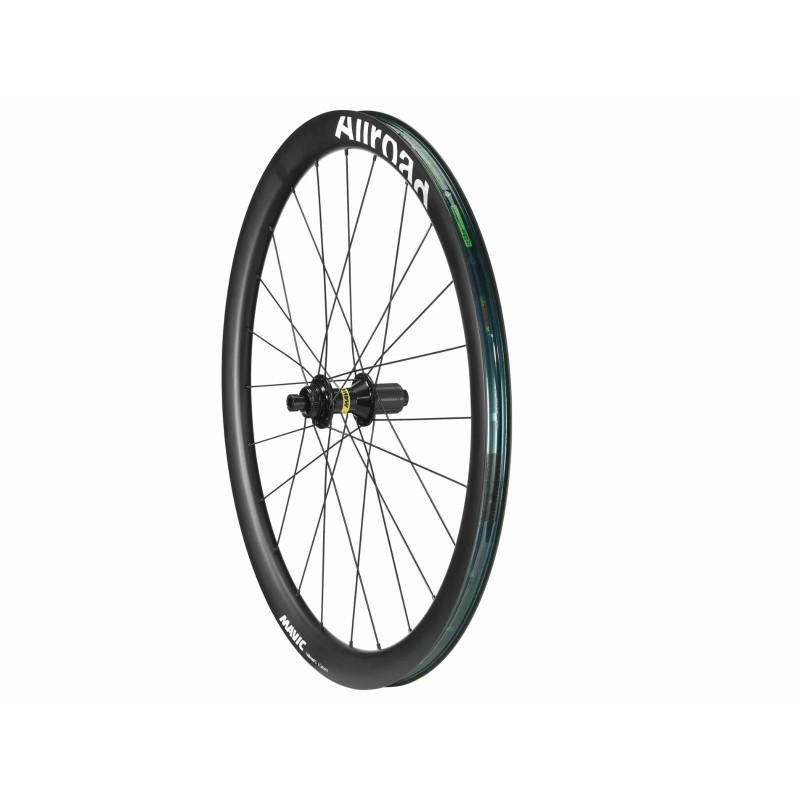

Mavic Allroad S Carbon: With an optimized aero profile and a 25 mm wide carbon rim, Mavic performance becomes more accessible and lets you ride faster on all your gravel adventures
Mavic Allroad S Carbon: With an optimized aero profile and a 25 mm wide carbon rim, Mavic performance becomes more accessible and lets you ride faster on all your gravel adventures
The lightweight carbon rims feature Adaptive Layup technology, optimizing strength in specific areas and lightness everywhere else. By using just the right number of fibers in less stressed zones of the rim to reduce weight without compromising reliability, the result is a livelier, more responsive wheel on climbs and accelerations.
The Mavic UST system (Universal Standard for Tubeless) improves traction, control, and comfort while reducing inertia and the risk of punctures.
As for the hub, the Allroad S Carbon comes with QRM Auto bearing preload technology and the Instant Drive 360 freewheel system, ensuring fast engagement, high stiffness, and increased durability. The wheels feature Center Lock brake disc mounts and are available with either Shimano or SRAM XD-Road freewheel bodies, convertible to Campagnolo with an optional freehub body. The rear hub, in 12 x 142, can also be converted to quick release using separately sold adapters.
Rim
Material: Unidirectional carbon fiber
Hookless rim profile
Tire: UST Tubeless and tube-type
Height: 42 mm
Internal width: 25 mm
ETRTO: 622x25TSS
Adaptive Layup Technology
UST Tubeless Technology
Aero Wide Rim Technology
Spokes
Material: Steel
Shape: J-bend, round
Nipples: ABS steel
2-cross lacing without contact
Hub
Hub with Center Lock disc mount (R)
Axle: 12 x 142 mm - Quick release compatibility with separately sold adapters
Instant Drive 360 freewheel body
QRM Auto (self-adjusting bearing preload)
Available freewheel bodies - Standard (Shimano-SRAM where the smallest cassette cog is ≥ 11 teeth) - Standard light (Shimano-SRAM where the smallest cassette cog is ≥ 11 teeth) - XD-R (SRAM where the smallest cassette cog is < 11 teeth) - Campagnolo ED11 - Campagnolo N3W
Usage:
ASTM CATEGORY 2: ROAD AND TRACK, JUMPS UNDER 15 CM
Recommended tire sizes: 30 to 64 mm
Max weight: 135 kg (including rider and bike)
Key Technologies
Adaptive Layup (reinforced carbon layup in key areas and lighter elsewhere)
QRM Auto (Mavic C3 high-quality bearings, double-sealed, self-adjusting preload)
ID360 (faster engagement)
Aero Wide Rim (high speed and control performance)
Warranty
2 years
Extendable to 3 years by registering in the Mavic Care program within two months of purchase
