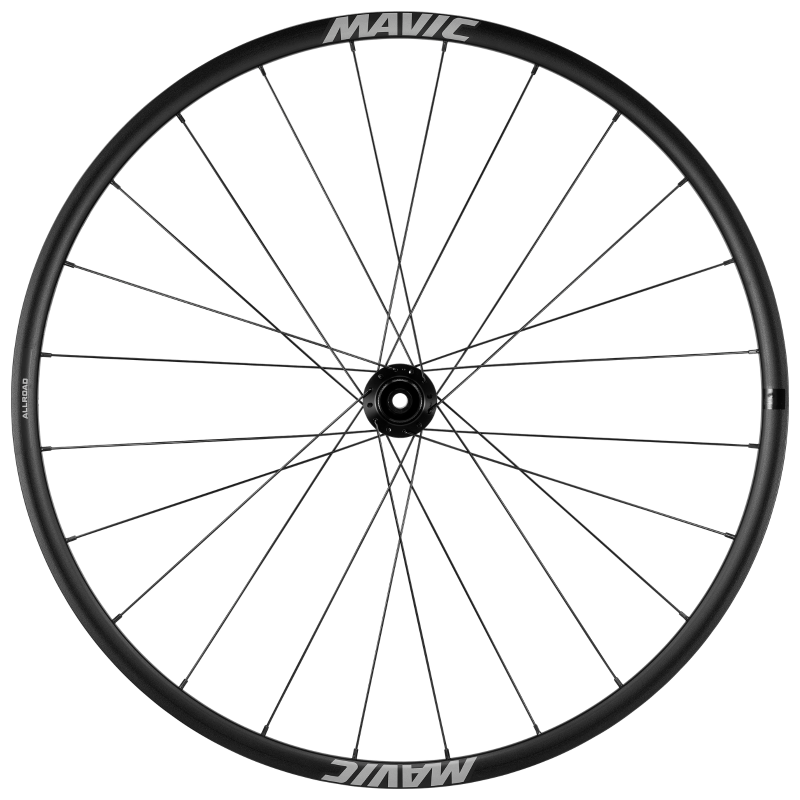

The Mavic Allroad front wheel is the ideal choice for replacing or upgrading the front end of your gravel or endurance road bike. Featuring a wide aluminum rim with a 25 mm internal width and supplied with pre-installed tubeless rim tape, this wheel delivers precise handling, optimal comfort, and outstanding durability on both asphalt and rough trails.
Mavic Allroad Front Wheel Highlights
- 25 mm internal width: Provides ideal tire support for fitting wide tires (29 mm to 64 mm) at lower pressure, ensuring a larger contact patch and greater comfort.
- Tubeless-ready: Traditional drilled rim equipped with pre-installed airtight rim tape and supplied with a UST valve.
- Precise, smooth steering: Two-cross lacing provides excellent lateral stiffness to hold your line on technical sections.
- Center Lock disc brake: Delivers consistent, controllable braking power in all weather conditions.
- French Mavic reliability: Built to last, with QRM self-adjusting sealed cartridge bearings.
Technical Specifications
- Position: Front.
- Riding style: Gravel, All-Road, Endurance, Bikepacking.
- Rim material: S6000 aluminum.
- Rim depth: 21 mm.
- Internal width: 25 mm
- Disc mount: Center Lock (AFS).
- Thru axle: 12x100 mm (convertible to 9x100 mm quick release with adapters).
- Manufacturer's weight: 915 g.
Materials and Components
- Rim: S6000 aluminum
- Spokes: 100% steel (round, butted)
- Hub: Aluminum body and axle
- Bearings: Sealed cartridge (QRM technology)
Maintenance Tips
- Clean the wheel with fresh water and a sponge or soft cloth (avoid directing a high-pressure spray at the hub).
- Check the tubeless sealant regularly (replace every 3 to 6 months).
Compatibility and Installation
To get the most out of your Mavic Allroad front wheel, be sure to follow the installation and tire recommendations.
- Recommended tire size: 29 mm to 64 mm (1.1" to 2.5").
- Tire type: Tubeless Ready (UST) or Tube Type (with inner tube).
- Rim tape: Factory-installed tubeless rim tape.
- Fork axle: 12x100 mm standard and compatible with 9x100 mm using optional adapters (compatible with 15x100 mm by replacing the internal axle with part number V2373501).
- Weight limit: Maximum weight supported by the bike: 135 kg (bike included).
Tubeless (UST) Installation
- Installing the tire: Install the included UST valve, mount your Tubeless Ready tire, add the recommended amount of sealant, and inflate with a floor pump or compressor.
- Inflation pressure: Never exceed the maximum pressure indicated on the rim and tire.
