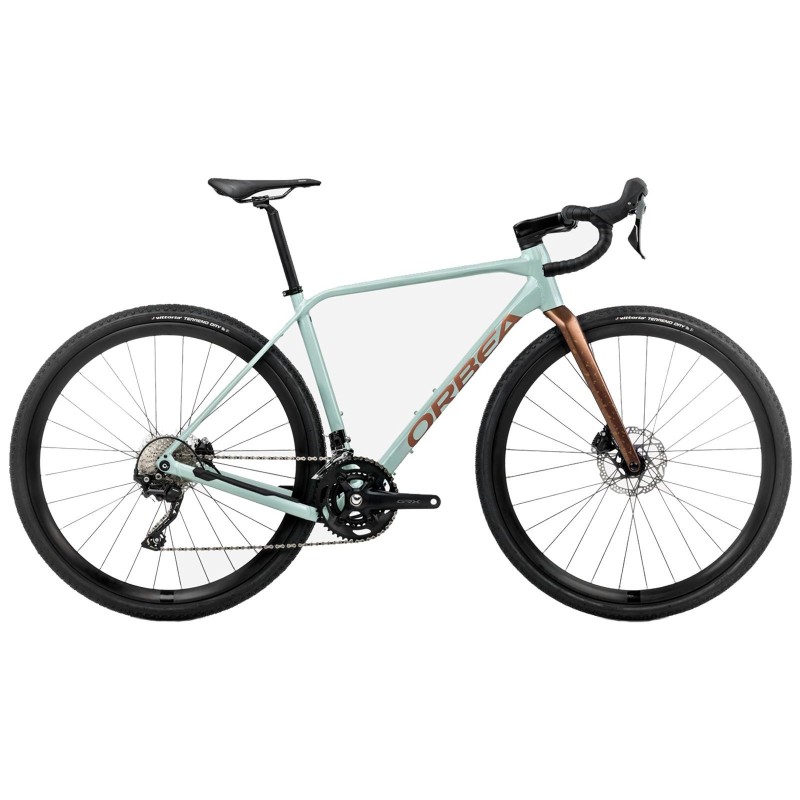

Orbea Gravel Terra H40 - Blue Stone / Copper Mat

Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Orbea Terra H40 isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

The main features

• Versatile aluminium frame with dedicated gravel geometry
• Integrated rear rack mounting points allow you to fit a variety of rear panniers
• Compatible with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads
• Precise and reliable SHIMANO 2x10 speed drivetrain
• Compatibility with 1x and 2x drivetrain system

Features

• FRAME : Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
• FORK : Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
• CRANKSET : Shimano GRX RX600-10 30x46t
• HEADSET : FSA 1-1/2" Integrated Aluminium Cup
• HANDLEBAR : OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
• STEM : OC Road Performance RP22, -5º
• SHIFTERS : Shimano ST-RX400
• BRAKES : Shimano RX400 Hydraulic Disc
• CASSETTE : Shimano Tiagra HG-500 11-34t 10-Speed
• REAR DERAILLEUR : Shimano RD-RX400
• Front DERAILLEUR : Shimano GRX-RX400
• CHAIN : KMC 10-Speed
• WHEELS : Alloy, Tubeless, 700c, 21c
• TYRES : Vittoria Terreno Dry Gravel 700x38c
• SEATPOST : SP 0.2 Carbon, 27.2mm, Setback 20
• SADDLE : Prologo Akero AGX  size 155mm
• HANDLEBAR PLUGS : Orbea Eva
• FRONT WHEEL AXLE : Orbea Thru Axle 12x100mm M12x2 P1 Solid
• REAR WHEEL AXLE : Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Size infos (for help)

• XS - 155 cm to 166 cm
• S  - 167 to 172 cm
• M - 173 to 179 cm
• L  - 180 to 185 cm
• XL - 186 to 191 cm
• XXL - 192 to 207 cm
