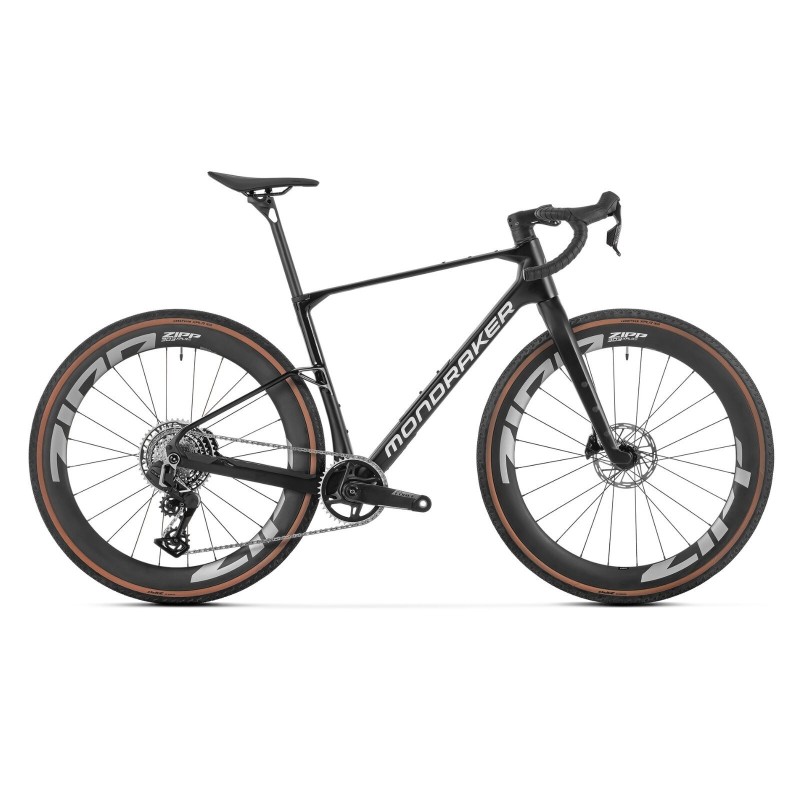

Mondraker Gravel Bike Arid Carbon RR Superblack

Mondraker Arid Carbon RR Superblack – The premium gravel bike built for performance

The Mondraker Arid Carbon RR marks a turning point in the Spanish brand’s gravel range. This high-end model is equipped with a SRAM Force XPLR AXS 1x13 electronic drivetrain, featuring a 40T chainring and a 10-46 cassette, for ultra-precise and smooth gear changes regardless of load or terrain profile. For the wheels, Mondraker trusts Zipp with its 303 XPLR S carbon rims, 32 mm internal width, fitted with Goodyear XPLR Inter 700x45 mm tyres, delivering efficiency and comfort on all types of surfaces.

But the Arid truly stands out for its integrated storage space: its down tube is designed to hold up to three modular pouches, allowing you to carry clothing, tools, food or travel documents without adding external bags. A minimalist, efficient and perfectly integrated solution, designed for the modern adventurer.

Its clean, racy design reflects the elegance and innovation of this bike built for performance.

Key features

• A high-end Stealth carbon frame
• Numerous mounting points for rear racks and panniers
• Compatibility with tyres up to 50 mm wide
• SRAM Force XPLR AXS 1x13-speed electronic drivetrain
• A pair of Zipp 303 XPLR S carbon wheels
• Hydraulic disc brakes SRAM Force eTAP AXS HRD
• Carry On Bag system: storage space inside the down tube, concealing 3 small pouches to store an inner tube, a pump or a CO2 cartridge, as well as a selection of tools
• Carbon RR version available in 4 different colours at PureBike

Specifications

• Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, internal cable routing HHG, 12x142 rear axle, single chainring drivetrain, Flatmount brake compatible.
• Fork: Tapered Stealth Air Carbon steerer, HHG, flat-mount integrated fork
• Headset: ONOFF IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8 mm clamp, -7° rise, length: size S: 60 mm, size M: 70 mm, size ML: 70 mm, size L: 80 mm, size XL: 90 mm
• Handlebar: ONOFF S9 GR CARBON, 16° flare. Width size S: 420 mm, size M: 420 mm, size ML: 440 mm, size L: 460 mm, size XL: 460 mm
• Bar tape: ONOFF HEX handlebar tape
• Seatpost: ONOFF S9 Carbon 15-R, 15 mm offset, diameter 27.2 mm, length 400 mm
• Saddle: FIZIK Vento Argo X5 140 mm
• Front brake: SRAM Force AXS HRD 2-piece caliper, Paceline 160 mm Centerlock rotor, organic pads on steel
• Rear brake: SRAM Force AXS HRD 2-piece caliper, Paceline 160 mm Centerlock rotor, organic pads on steel
• Brake lever: SRAM Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever
• Rims: Zipp 303 XPLR S, carbon, 32 mm internal width, 54 mm depth, hookless, Infinity hubs, 24 spokes
• Spokes: CX-Sprint - Black
• Front hub: Disc brake 76, 12x100 mm, Centerlock
• Rear hub: Disc brake 176, 12x142 mm, XDR 3 pawls, compression springs, Centerlock, XDR body
• Front tyre: Goodyear XPLR Inter 700x45
• Rear tyre: Goodyear XPLR Inter 700x45
• Crankset: SRAM Force XPLR AXS carbon, power meter, DUB WIDE axle, size S: 165 mm, size M: 165 mm, size ML: 170 mm, size L: 172.5 mm, size XL: 172.5 mm, CL 47.5
• Chainring: SRAM 40T Direct Mount, Narrow Wide
• Bottom bracket: SRAM DUB T47 BSA, sealed bearings, 85.5 mm
• Chain: SRAM Force, Flattop, 13s, Powerlock
• Rear derailleur: SRAM Force XPLR AXS, 13s
• Shift levers: SRAM Force AXS HRD, 13s
• Cassette: SRAM XG-1371, 10-46T, 13s
• Derailleur hanger: SRAM UDH
• Other: Carry On Bag – in-tube storage concealing 3 small pouches for an inner tube, pump or CO2 cartridge, and a selection of tools

Weight: 8.8 kg

Size guide (indicative)

• S – 157 to 167 cm
• M – 165 to 178 cm
• ML – 173 to 185 cm
• L – 183 to 193 cm
• XL – 190 to 200 cm
