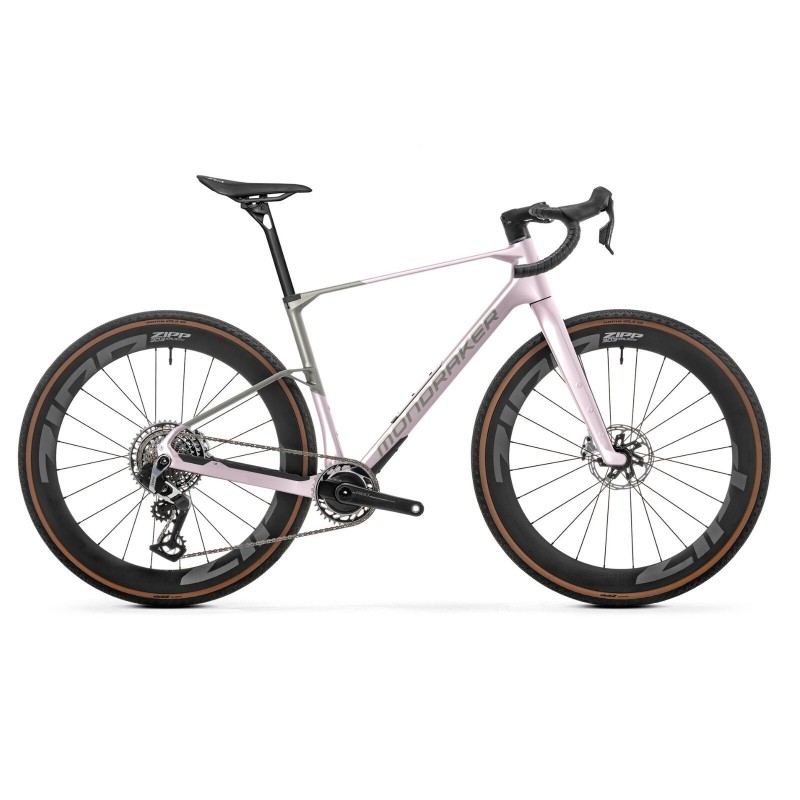

Mondraker Gravel Bike Arid Carbon RR SL Mirage Silver
CR19788
Mondraker Arid Carbon RR SL Mirage Silver - Less than 8kg for this Gravel bike equipped with a power meter, built for performance. Available at PureBike
Mondraker Arid Carbon RR SL Mirage Silver – Less than 8kg for this Gravel bike equipped with a power meter, built for performance
The Mondraker Arid Carbon RRSL marks a turning point in the brand's gravel universe. This high-end model features a SRAM Red XPLR AXS 1x13 electronic drivetrain, with a 40-tooth chainring and a 10-46 cassette, delivering ultra-precise and smooth shifting regardless of load or terrain profile. On the wheel side, Mondraker trusts Zipp with its 303 XPLR S carbon rims with a 32 mm internal width, fitted with Goodyear XPLR Inter 700x45 mm tires, ensuring efficiency and comfort on all surfaces.
But the Arid truly stands out thanks to its integrated storage space: its down tube is designed to hold up to three modular pouches for carrying clothing, tools, food, or travel documents without adding external bags. A minimalist, efficient, and perfectly integrated solution, designed for modern adventurers.
Its sleek and sporty design reflects the elegance and innovation of this bike built for performance.
Key strengths
A premium Stealth carbon frame
Multiple mounting points for a rear rack and panniers
Compatibility with tires up to 50 mm wide
SRAM Red XPLR AXS 1x13 electronic drivetrain with power meter
A pair of Zipp 303 XPLR S carbon wheels
Hydraulic disc brakes Sram Red AXS 2
Carry On Bag system: a storage space in the down tube hiding 3 small pouches to store an inner tube, a pump or a CO2 cartridge, as well as a selection of tools
Weight under 8 kg
Carbon RR SL version available in 4 colors at PureBike
Specifications
Frame: Arid Stealth Air Carbon, storage in tube, T47 bottom bracket shell, tapered head tube, HHG internal cable routing, 12x142 rear axle, single chainring drivetrain, Flatmount brake compatible.
Stem: Onoff Semi-Integrated, 31.8 mm clamp, angle: -7°, length: size S: 60 mm, size M: 70 mm, size ML: 70 mm, size L: 80 mm, size XL: 90 mm
Handlebar: ONOFF S9 GR CARBON 16° flare. Width size S: 420 mm, size M: 420 mm, size ML: 440 mm, size L: 460 mm, size XL: 460 mm
Bar tape: ONOFF HEX bar tape
Seatpost: ONOFF S9 Carbon 15-R, 15 mm offset, diameter 27.2 mm, length 400 mm
Saddle: FIZIK Vento Argo X5 140 mm
Front brake: Red AXS 2 caliper, Paceline 160 mm Centerlock rotor, organic pads on steel
Rear brake: Red AXS 2 caliper, Paceline 160 mm Centerlock rotor, organic pads on steel
Brake lever: Sram Red, contact point adjustment, reach adjustment with tool, carbon levers
Rims: Zipp 303 XPLR S, carbon, 32 mm internal width, 54 mm depth, hookless, infinity hubs, 24 spokes
Spokes: CX-Sprint - Black
Front hub: ZR1 disc brake, 12x100 mm, Centerlock
Rear hub: ZR1 disc brake, 12x142 mm, XDR 6 pawls, compression springs, 66T ratchet system, Centerlock, XDR freehub
Front tire: Goodyear XPLR Inter 700x45
Rear tire: Goodyear XPLR Inter 700x45
Crankset: Sram Red XPLR carbon, power meter, DUB WIDE axle, bolt-on chainring, size S: 165 mm, size M: 167.5 mm, size ML: 170 mm, size L: 172.5 mm, size XL: 172.5 mm, CL 47.5
Chainring: Sram 40T Direct Mount, Narrow Wide
Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85.5 mm
Chain: Sram Red, Flattop, 13s, Powerlock
Rear derailleur: Sram Red XPLR AXS, 13s
Shifters: Sram Red XPLR AXS, 13s
Cassette: Sram XG-1391, 10-46T, 13s
Derailleur hanger: Sram UDH
Other: Carry On Bag: a storage space in the down tube hiding 3 small pouches to store an inner tube, a pump or a CO2 cartridge, as well as a selection of tools.
