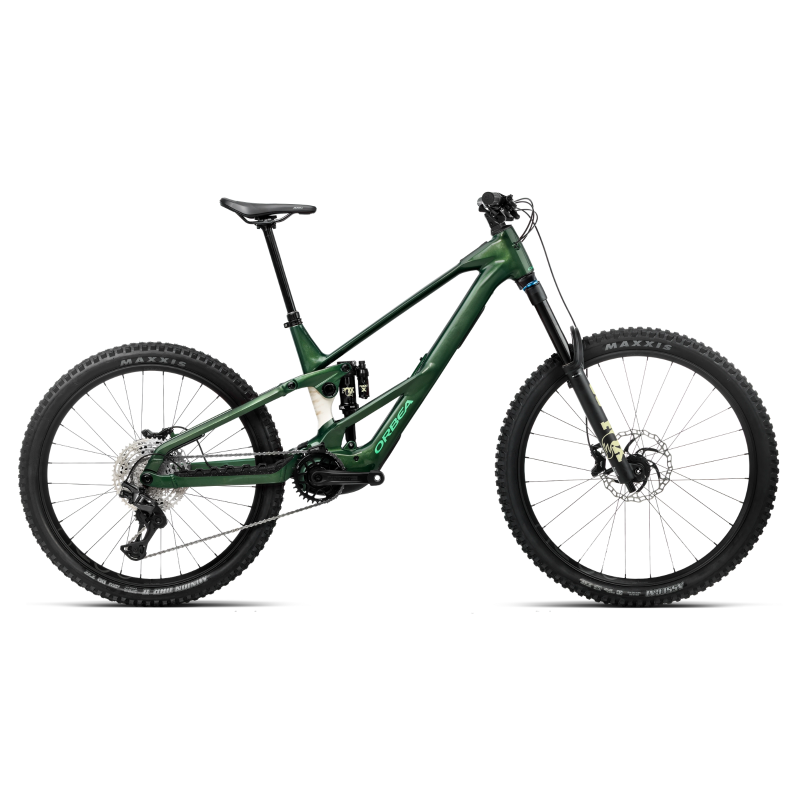

Orbea Wild LT H10 Mullet Electric Mountain Bike Racing Reen - White Cream (Gloss)
CR21076
The Orbea Wild LT H10 Mullet is a high-performance enduro e-MTB, built on a hydroformed aluminum frame with an agile Mullet (29" front / 27.5" rear) wheel setup. Powered by the DJI Avinox M2S motor (up to 105 Nm / 120 Nm Boost) and an 800 Wh battery, it pairs 170 mm FOX 38 Performance suspension with a Shimano XT 12-speed drivetrain to conquer the steepest climbs and most demanding descents.
The Orbea Wild LT H10 Mullet (Hydro Version / DJI Avinox) is a high-end enduro e-MTB built for hard-charging performance in the high mountains, designed with the same competition gravity philosophy as the renowned Rallon. Built around a balanced Hydro aluminum frame with a low, centered center of gravity, this model features a Mullet wheel setup (29" front for rolling over obstacles, 27.5" rear for responsiveness). It’s powered by the DJI Avinox M2S motor system, configured with the custom RS (Rider Synergy) tune and a massive 800 Wh battery. Equipped with 170 mm FOX suspension and a Shimano XT 12-speed drivetrain, it delivers ultimate control, pinpoint precision, and exceptional traction on the most extreme climbs.
Orbea Wild LT H10 Mullet Highlights
DJI Avinox M2S motor with RS tuning: Delivers up to 105 Nm of torque (and a short-term Boost mode of 120 Nm / 1000 W) for responsive, ultra-powerful, natural assistance that ensures maximum traction on technical climbs.
Long-lasting range (800 Wh battery): Fully integrated, high-density 800 Wh Avinox battery, paired with a color touchscreen integrated into the frame (DP100) and an ergonomic wireless remote (BC100).
Agile, playful Mullet setup: The 29" front wheel rolls over obstacles with ease, while the 27.5" rear wheel provides greater clearance and exceptional agility in tight turns.
170 mm FOX Performance suspension: FOX 38 Float Performance GRIP fork with 38 mm stanchions, paired with a FOX Float X Performance shock for outstanding support and smooth absorption of big hits.
Ultra-reliable Shimano XT 12-speed drivetrain: Smooth, fast shifting that stands up to the demands of e-MTB riding, thanks to the Shimano XT M8200 SGS Shadow Plus derailleur.
DT Swiss H 1900 Spline e-MTB-specific wheels: Reinforced wheelset with a Maxxis Minion DHR II rear tire featuring a reinforced DoubleDown (DD) casing to help prevent pinch flats.
Powerful Shimano & Galfer braking: Shimano MT620 4-piston calipers paired with 200 mm Galfer Wave rotors for reliable, consistent stopping power on long descents.
Dropper seatpost: OC Mountain Control MC22 (Shimano SL-MT500 I-Spec EV remote).
Saddle: Fizik Terra Aidon X1.
Cockpit: OC Alu SL Handlebar MC20, 35 mm rise / OC Mountain Control 20 stem (0°) with OC CM-05 computer mount.
Grips: OC Lock On.
Mullet RS Geometry and Ride Feel
The Orbea Wild LT H10 Mullet features modern geometry with a low, centered center of gravity to deliver unwavering stability at high speeds while maintaining excellent handling.
Mullet setup (29"/27.5"): The 29-inch front wheel rolls smoothly over obstacles and maintains speed exceptionally well, while the 27.5-inch rear wheel offers noticeably improved maneuverability and more tire clearance in the steepest descents.
RS (Rider Synergy) ride feel: The DJI Avinox M2S motor tuning adapts torque delivery to your pedaling cadence to maintain traction on slippery surfaces.
Clean cockpit: Integrating the controls with the Shimano I-Spec EV standard frees up space on the handlebar for a tidy cockpit.
Care and Maintenance Tips
Cleaning: Wash the bike with fresh water and mild soap. Never spray a high-pressure jet directly at the DJI DP100 touchscreen, motor, or charging port.
Charging: Charge the 800 Wh battery indoors in a dry, room-temperature location using the original 4A charger.
Maintenance: Regularly check wear on the 12-speed chain and the thickness of the Shimano 4-piston brake pads, which are subject to heavy use from the power of the DJI Avinox M2S motor.
