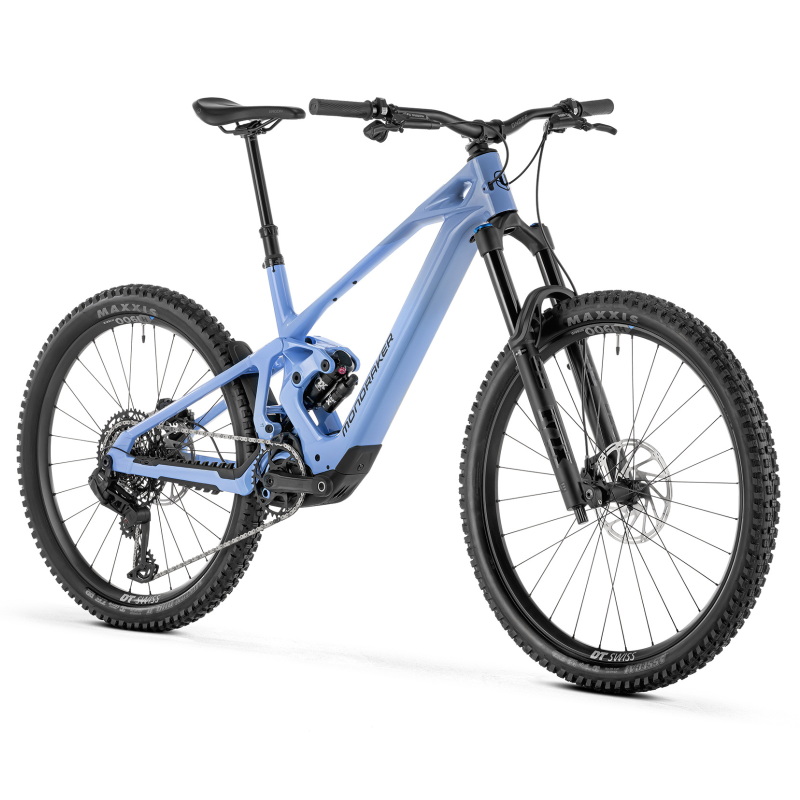

Mondraker Zendit R Electric Mountain Bike - Blue

The Mondraker ZENDIT R represents the pinnacle of performance and integration for hard-charging E-MTB riding. Combining a Stealth Air Carbon front triangle with a brand-new Stealth aluminum rear triangle, this Enduro e-MTB features the latest-generation Avinox M2S motor and an ultra-slim 800 Wh battery. With its 165 mm rear-travel ZERO suspension platform, 170 mm of front travel, and adjustable geometry designed for a Mullet (MX) setup, the ZENDIT delivers an unrivaled combination of precision and efficiency on the trail.

Mondraker ZENDIT R bike highlights

• High-tech hybrid frame: Ultra-light Stealth Air Carbon front triangle paired with a robust, forgiving Stealth aluminum rear triangle.
• Avinox M2S motor & 800 Wh battery: The market’s most integrated and powerful motor and battery system, delivering the perfect balance of range and natural ride feel.
• 165 mm / 170 mm ZERO System suspension: 165 mm of rear travel, optimized to absorb the harshest impacts while maintaining excellent pedaling efficiency.
• Pure Mullet setup (29" front / 27.5" rear): Combines the rollover capability and speed of a 29" front wheel with the maneuverability and traction of a 27.5" rear wheel.
• FORWARD GEOMETRY and adjustable geometry: 63.5° head angle (adjustable to 63.15° via Flip Chip) and size-specific chainstay lengths.
• Simplified maintenance: Same-size bearings throughout the frame, with double rubber seals for maximum protection against water and dust.

Technical specifications

• Discipline: Electric Enduro, hard-charging All-Mountain, Bikepark.
• Front triangle: Stealth Air Full Carbon (6-axis post-mold machining).
• Rear triangle and link: Forged/machined Stealth aluminum.
• Motor: Latest-generation Avinox M2S.
• Battery: Integrated 800 Wh (ultra-slim profile).
• Travel: 170 mm front / 165 mm rear.
• Suspension design: ZERO Suspension System.
• Wheel size: Mullet / MX (29" front / 27.5" rear).

Construction and materials

• Front triangle: High-modulus Stealth Air Carbon
• Rear triangle and links: High-strength Stealth aluminum
• Axles and hardware: CNC-machined aluminum and stainless steel
• Protection and sealing: Secondary rubber seals on all frame bearings

Maintenance tips

• Clean the bike with fresh water after every ride. Do not spray high-pressure water directly onto the motor, display, battery, or frame bearings.
• Regularly check suspension pivot bolts for tightness and make sure the Flip Chip adjustment system is working properly.
• Keep the Avinox M2S motor software up to date and charge the battery at room temperature.

Geometry, adjustments, and fit

The Mondraker ZENDIT features a Flip Chip geometry adjustment system at the lower shock mount, allowing you to adjust the bike’s stance to suit your riding style.

• Standard position: 63.5° head angle, 77° seat angle, and 345 mm bottom bracket height.
• Low position: 63.15° head angle, 76.65° seat angle, and a lowered 340 mm bottom bracket (4 mm less reach) for maximum stability on steep descents.
• Size-specific chainstays: 450 mm chainstays on sizes S, M, and M/L; 455 mm on sizes L and XL to maintain perfect frame balance.

Sizes and chainstay lengths

• Sizes S, M, M/L: Fixed 450 mm rear chainstay length.
• Sizes L, XL: Extended 455 mm rear chainstay length.
• Suspension ratio: Size-specific pivot point adjustments ensure consistent shock performance across all frame sizes.

Technical specifications and components

• Frame: Zendit Stealth Air Carbon front, Stealth aluminum rear, 165 mm ZERO System, Boost 12x148 mm axle, UDH derailleur hanger, internal HHG cable routing.
• Shock: Fox Float-X LV Performance, 205x65 mm, 2-position compression adjustment, low-speed rebound, air preload.
• Fork: Fox 38 Float 29 GRIP Performance, 170 mm, E-Bike optimized, Boost 15x110 mm axle, 44 mm offset.
• Motor: Avinox M2S.
• Battery & Charger: Avinox 800 Wh with Avinox 4A charger.
• Display & Controls: Avinox DP100 display / Avinox BC100 wireless controller (left and right).
• Drivetrain: SRAM S1000 Eagle AXS T-Type, 12-speed.
• Shifter: SRAM Eagle AXS Pod Controller with discreet clamp.
• Cassette: SRAM XS-1270, 10-52T, T-Type, 12-speed.
• Chain: SRAM GX Eagle T-Type 12-speed Flattop.
• Crankset & Chainring: E.13 Helix Core E*Spec Plus 155 mm / SRAM Eagle 36T T-Type steel chainring.
• Brakes: SRAM Maven Base, 4-piston 18 mm calipers, 200 mm Centerline rotors (6-bolt).
• Wheels: DT Swiss Hybrid H 1900 SPLINE, aluminum, 30 mm internal width, Tubeless Ready.
• Hubs: DT Swiss 370 (Front: Boost 15x110 mm / Rear: Boost 12x148 mm with Ratchet LN 18T system, HG freehub body).
• Front tire: Maxxis Assegai 29x2.5WT, Tubeless Ready, 3C MaxxGrip compound, EXO+ casing, 60 TPI.
• Rear tire: Maxxis Minion DHR II 27.5x2.5WT, Tubeless Ready, 3C MaxxTerra compound, DoubleDown (DD) casing, 120x2 TPI.
• Dropper seatpost: Onoff Pija internal, 31.6 mm diameter, 1X bearing-equipped remote (Travel: S 140-115 mm, M 160-135 mm, ML 180-155 mm, L/XL 210-185 mm).
• Saddle: Ergon SM10 E-Mountain Black.
• Handlebar: Onoff S6 7050 Alloy, 31.8 mm, 800 mm wide, 25 mm rise (38 mm on sizes L/XL).
• Stem: Onoff S6 30 mm 0º, CNC-forged 6061 aluminum.
• Headset: Acros custom ZS56/ZS56, internal cable routing.
• Total weight: 23.95 kg

Size guide

• S: < 165 cm
• M: 165-175 cm
• M/L: 170-185 cm
• L: 180-190 cm
• XL: 190-195 cm
