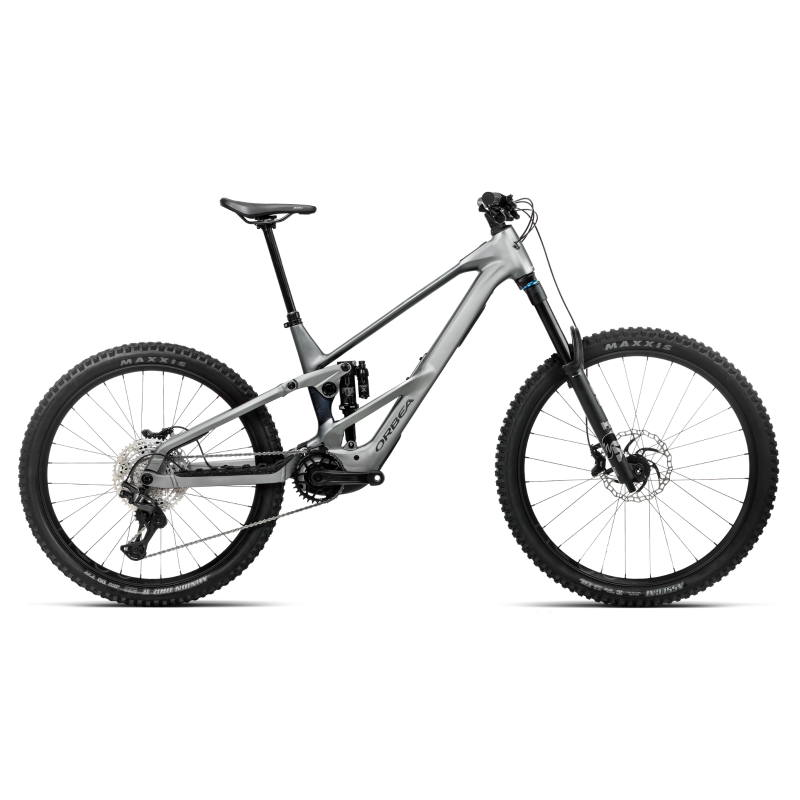

Orbea Wild LT H10 Mullet Electric Mountain Bike Titan Grey - Noctiluca Carbon View (Matt)
CR21077
The Orbea Wild LT H10 Mullet is a high-performance Enduro e-MTB built on a hydroformed aluminum frame with an agile Mullet wheel setup (29" front / 27.5" rear). Powered by the DJI Avinox M2S motor (up to 105 Nm / 120 Nm Boost) and an 800 Wh battery, it combines 170 mm FOX 38 Performance suspension with a Shimano XT 12-speed drivetrain to take on the steepest climbs and most challenging descents.
The Orbea Wild LT H10 Mullet (Hydro / DJI Avinox Version) is a high-end Enduro e-MTB built for big mountain riding and performance, designed with the same competition gravity philosophy as the renowned Rallon. Built around a balanced Hydro aluminum frame with a low, centered center of gravity, this model features a Mullet wheel setup (29" front for rollover capability, 27.5" rear for responsiveness). It’s powered by the DJI Avinox M2S motor system, configured with the custom RS (Rider Synergy) tuning and a massive 800 Wh battery. Equipped with 170 mm FOX suspension and a Shimano XT 12-speed drivetrain, it delivers ultimate control, pinpoint precision, and exceptional traction on the most extreme climbs.
Orbea Wild LT H10 Mullet Highlights
DJI Avinox M2S motor with RS tuning: Delivers up to 105 Nm of torque (and a temporary Boost mode of 120 Nm / 1000 W) for responsive, ultra-powerful, natural assistance that ensures maximum traction on technical climbs.
Long-lasting range (800 Wh battery): Fully integrated, high-density 800 Wh Avinox battery paired with the DP100 color touchscreen integrated into the frame and ergonomic BC100 wireless remote.
Agile, playful Mullet setup: The 29" front wheel rolls over obstacles with ease, while the 27.5" rear wheel offers increased clearance and exceptional agility through tight turns.
170 mm FOX Performance suspension: FOX 38 Float Performance GRIP fork with 38 mm stanchions paired with the FOX Float X Performance shock for outstanding support and smooth absorption of big hits.
Ultra-reliable Shimano XT 12-speed drivetrain: Smooth, fast shifting that stands up to the demands of e-MTB riding, thanks to the Shimano XT M8200 SGS Shadow Plus derailleur.
DT Swiss H 1900 Spline e-MTB-specific wheels: Reinforced wheelset fitted with a Maxxis Minion DHR II rear tire featuring a reinforced DoubleDown (DD) casing to help prevent pinch flats.
Powerful Shimano & Galfer braking: Shimano MT620 4-piston calipers paired with 200 mm Galfer Wave rotors for confident, consistent stopping on long descents.
Dropper seatpost: OC Mountain Control MC22 (Shimano SL-MT500 I-Spec EV remote).
Saddle: Fizik Terra Aidon X1.
Cockpit: OC Alu SL Handlebar MC20 Rise 35 mm / OC Mountain Control 20 (0°) stem with OC CM-05 computer mount.
Grips: OC Lock On.
Mullet RS Geometry and Ride Feel
The Orbea Wild LT H10 Mullet uses modern geometry with a low, centered center of gravity to deliver rock-solid stability at high speeds while maintaining excellent maneuverability.
Mullet concept (29"/27.5"): The 29-inch front wheel rolls smoothly over obstacles and maintains speed exceptionally well, while the 27.5-inch rear wheel provides noticeably improved maneuverability and more clearance above the rear tire on the steepest descents.
RS (Rider Synergy) ride feel: The DJI Avinox M2S motor tuning adjusts torque delivery to your pedaling cadence to maintain traction on slippery surfaces.
Clean cockpit: Integrating the controls with the Shimano I-Spec EV standard frees up handlebar space for a clean cockpit.
Maintenance Tips
Washing: Clean the bike with fresh water and mild soap. Never aim a high-pressure spray directly at the DJI DP100 touchscreen, motor, or charging port.
Charging: Charge the 800 Wh battery indoors in a dry, room-temperature location using the original 4A charger.
Maintenance: Regularly check 12-speed chain wear and the thickness of the Shimano 4-piston brake pads, which are subject to heavy use from the power of the DJI Avinox M2S motor.
