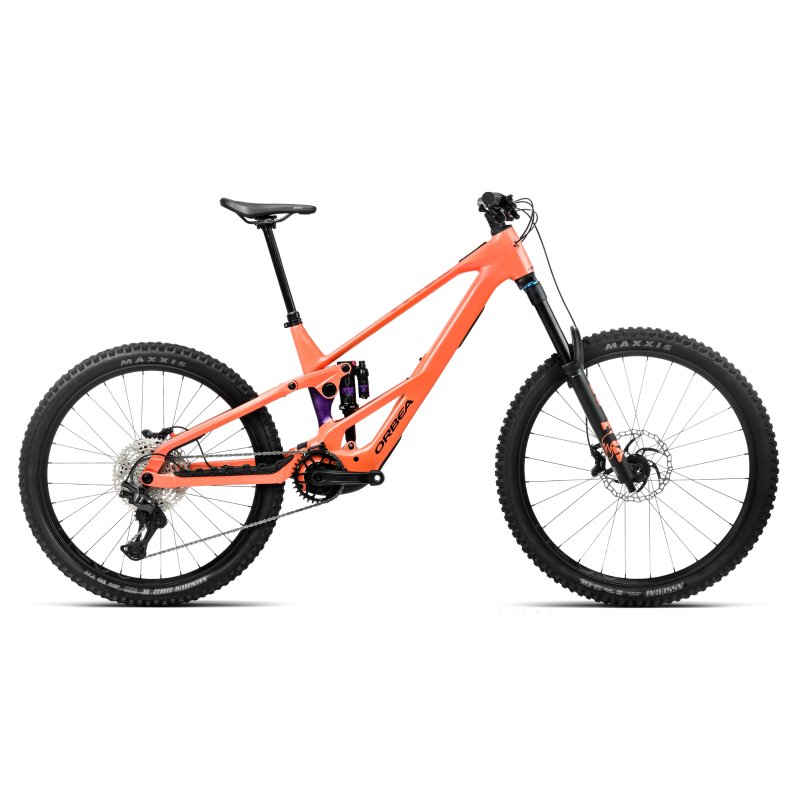

Orbea Wild LT H10 Mullet Electric Mountain Bike Wild Orange - Royal Plum (Gloss)
CR21078
The Orbea Wild LT H10 Mullet is a high-performance enduro e-MTB built around a hydroformed aluminum frame with an agile Mullet wheel setup (29" front / 27.5" rear). Powered by the DJI Avinox M2S motor (up to 105 Nm / 120 Nm Boost) and an 800 Wh battery, it combines 170 mm FOX 38 Performance suspension with a Shimano XT 12-speed drivetrain to take on the steepest climbs and most demanding descents.
The Orbea Wild LT H10 Mullet (Hydro / DJI Avinox Version) is a high-end enduro e-MTB built for demanding rides and performance in the high mountains. It shares the same competition-ready gravity philosophy as the renowned Rallon. Built around a balanced Hydro aluminum frame with a low, centered center of gravity, this model features a Mullet wheel setup (29" front for roll-over capability, 27.5" rear for responsiveness). Power comes from the DJI Avinox M2S motor system, configured with the custom RS (Rider Synergy) tuning and a substantial 800 Wh battery. With 170 mm FOX suspension and a Shimano XT 12-speed drivetrain, it delivers ultimate control, precision handling, and exceptional traction on the most extreme climbs.
Orbea Wild LT H10 Mullet highlights
DJI Avinox M2S motor with RS tuning: Delivers up to 105 Nm of torque (with a short-burst Boost mode offering 120 Nm / 1000 W) for responsive, ultra-powerful, natural assistance and maximum traction on technical climbs.
Long-range battery (800 Wh): The high-density 800 Wh Avinox battery is fully integrated, alongside a frame-integrated color touchscreen (DP100) and an ergonomic wireless remote (BC100).
Agile, playful Mullet setup: The 29" front wheel rolls over obstacles with ease, while the 27.5" rear wheel provides extra clearance and exceptional agility through tight turns.
170 mm FOX Performance suspension: FOX 38 Float Performance GRIP fork with 38 mm stanchions, paired with a FOX Float X Performance shock for outstanding support and smooth handling over big hits.
Ultra-reliable Shimano XT 12-speed drivetrain: Smooth, fast shifting and built to withstand the demands of e-MTB riding, thanks to the Shimano XT M8200 SGS Shadow Plus rear derailleur.
DT Swiss H 1900 Spline e-MTB-specific wheels: Reinforced wheelset fitted with a Maxxis Minion DHR II rear tire with a reinforced DoubleDown (DD) casing to help prevent pinch flats.
Powerful Shimano & Galfer braking: Shimano MT620 4-piston calipers paired with 200 mm Galfer Wave rotors for confident, consistent braking on long descents.
Dropper seatpost: OC Mountain Control MC22 (Shimano SL-MT500 I-Spec EV remote).
Saddle: Fizik Terra Aidon X1.
Cockpit: OC Alu SL Handlebar MC20 Rise 35 mm / OC Mountain Control 20 (0°) stem with OC CM-05 computer mount.
Grips: OC Lock On.
Mullet RS geometry and handling
The Orbea Wild LT H10 Mullet features modern geometry with a low, centered center of gravity, delivering unwavering stability at high speeds while retaining first-rate agility.
Mullet concept (29"/27.5"): The 29-inch front wheel rolls smoothly over obstacles and maintains speed exceptionally well, while the 27.5-inch rear wheel noticeably improves agility and provides extra clearance above the rear tire on the steepest slopes.
RS (Rider Synergy) handling: The DJI Avinox M2S motor tuning adjusts torque delivery to your pedaling cadence to maintain traction on slippery surfaces.
Clean cockpit: Integrating the controls via the Shimano I-Spec EV standard frees up handlebar space for a clean cockpit.
Maintenance tips
Cleaning: Clean the bike with fresh water and mild soap. Never spray high-pressure water directly at the DJI DP100 touchscreen, motor, or charging port.
Charging: Charge the 800 Wh battery indoors in a dry place at room temperature using the original 4A charger.
Maintenance: Regularly check 12-speed chain wear and the thickness of the Shimano 4-piston brake pads, which are subject to heavy use from the power of the DJI Avinox M2S motor.
