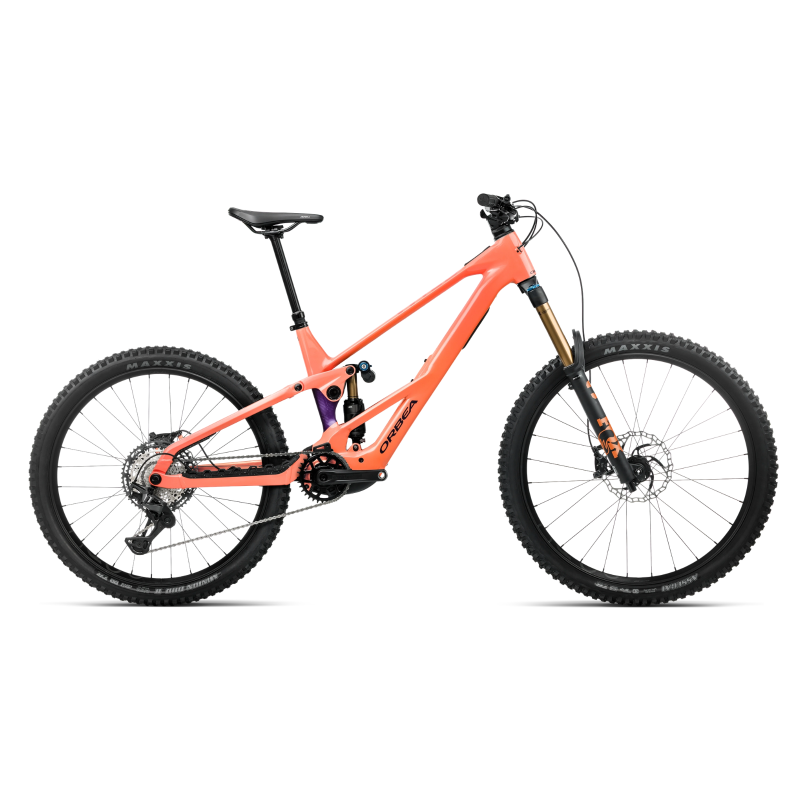

Orbea Wild LT H-TEAM Mullet Electric Mountain Bike Wild Orange - Royal Plum (Gloss)
CR21081
The Orbea Wild LT H-TEAM Mullet represents the pinnacle of enduro e-MTB performance on a hydroformed aluminum frame. Featuring an agile Mullet wheel setup (29" front / 27.5" rear), the revolutionary DJI Avinox M2S motor (up to 105 Nm / 120 Nm Boost), and an 800 Wh battery, this exceptional model comes equipped with 170 mm FOX 38 & Float X2 Factory (Grip X2) suspension, plus a complete Shimano XT 4-piston drivetrain and braking system.
The Orbea Wild LT H-TEAM Mullet (Hydro Version / DJI Avinox), featured here in its stunning Racing Green - White Cream (Gloss) finish, is the most capable aluminum enduro e-MTB in the Orbea lineup. Built for all-out racing in e-EDR and the roughest mountain singletrack, it uses the proven suspension kinematics and race geometry of the Wild LT platform. Built around a High Polish Hydro aluminum frame with the refined finish of carbon, it features a Mullet wheel setup (29" front for rollover, 27.5" rear for agility). Powered by the DJI Avinox M2S motor system (105 Nm / 120 Nm Boost) and paired with an 800 Wh battery, this H-TEAM build features the best of FOX Factory Grip X2 technology to push the limits of electric mountain biking.
Orbea Wild LT H-TEAM Mullet bike highlights
FOX 38 & Float X2 Factory Grip X2 suspension (170 mm): World Cup-level equipment with Kashima anti-friction coating, a Grip X2 hydraulic cartridge for exceptional mid-stroke support, and a dual-chamber Float X2 shock for phenomenal grip.
DJI Avinox M2S motor: Delivers up to 105 Nm of torque (with a temporary Boost mode reaching 120 Nm / 1000 W) for responsive, ultra-powerful, natural assistance that delivers maximum traction on technical climbs.
Long-range riding (800 Wh battery): Fully integrated, high-density 800 Wh Avinox battery paired with a frame-integrated color touchscreen (DP100) and an ergonomic wireless remote (BC100).
Agile, playful Mullet setup: The 29" front wheel rolls over obstacles with ease, while the 27.5" rear wheel provides extra clearance and exceptional agility through tight turns.
OQUO MC32 TEAMPOWER e-MTB wheels: Reinforced aluminum wheels developed specifically by OQUO to handle the torque demands of hard-charging enduro e-MTB riding.
Complete Shimano XT M8200 & M8220 groupset: Ultra-smooth shifting under heavy load (12-speed) and immense braking power from Shimano XT 4-piston calipers paired with 200 mm Galfer Wave rotors.
High Polish aluminum finish: Hydroformed, variable-wall tubing with polished welds delivers the flawless aesthetic finish of a carbon frame.
Technical specifications and components
Motor and battery
Motor: DJI Avinox M2S (105 Nm / 120 Nm Boost).
Battery: Integrated DJI Avinox 800 Wh.
Charger: Avinox Fast Charger 4A included.
Display & Remote: DJI Avinox DP100 color touchscreen (integrated into the top tube) / Avinox BC100 wireless remote.
Frame and suspension
Riding style: Enduro e-MTB, hard-charging all-mountain, bike park.
Frame: Orbea Wild Hydro, triple-butted hydroformed High Polish aluminum, Mullet wheels, Concentric Boost 12x148 mm thru-axle.
Fork: FOX 38 Float Factory Grip X2, 170 mm travel, Kashima coating.
Shock: FOX Float X2 Factory 2-Pos Evol, 205x65 mm, Kashima coating.
Dropper post: OC Mountain Control MC22 (Shimano SL-MT500 I-Spec EV remote).
Saddle: Fizik Terra Aidon X1.
Cockpit: OC Alu SL Handlebar MC20 Rise 35 mm handlebar / OC Mountain Control 20 (0°) stem with OC CM-05 computer mount.
Grips: OC Lock On.
Mullet geometry and ride characteristics
The Orbea Wild LT H-TEAM Mullet pairs Orbea's proven Gravity kinematics with the low center of gravity of the DJI Avinox M2S motor system.
Mullet setup (29"/27.5"): The 29-inch front wheel smooths out bumps and carries speed through rock gardens, while the 27.5-inch rear wheel shortens the chainstays, makes it easier to position the bike through turns, and provides ideal clearance on descents.
Tailored motor assistance: The DJI Avinox M2S motor software is tuned to deliver immediate power while maintaining natural traction control, preventing rear-wheel spin on loose terrain.
Grip X2 suspension: Independent high- and low-speed compression and rebound adjustments on the FOX 38 Factory fork allow for precise tuning to keep the wheel glued to the ground.
Maintenance tips
Cleaning: Clean the bike with fresh water and mild soap. Never spray high-pressure water directly at the DJI DP100 touchscreen, wireless remote, motor, or Kashima suspension stanchions.
Charging: Charge the 800 Wh battery in a dry place at room temperature using the included Avinox 4A charger.
Suspension & drivetrain maintenance: Change the oil in the Grip X2 / Float X2 cartridges regularly according to FOX recommendations, and check the wear on the 12-speed Shimano chain, which is subject to the torque of the DJI motor.
