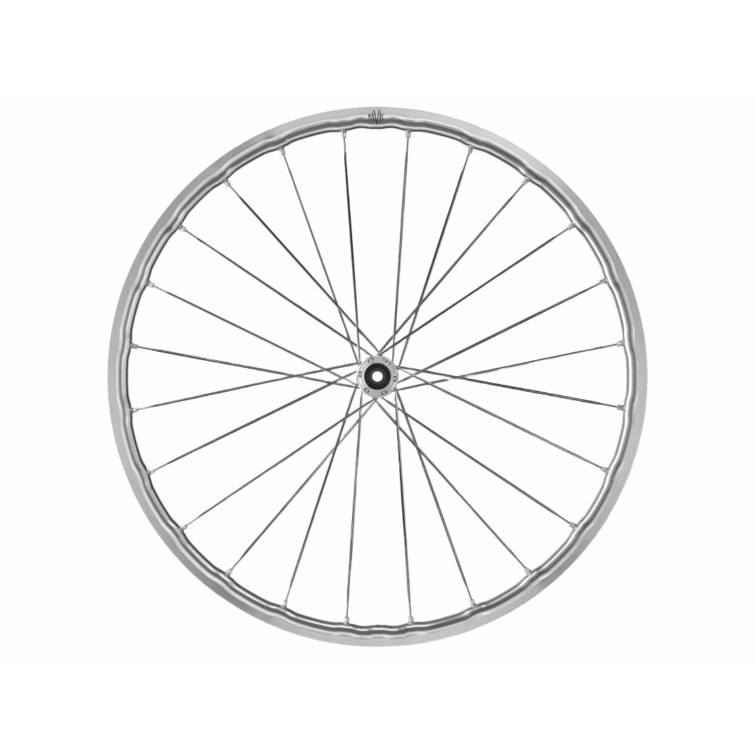

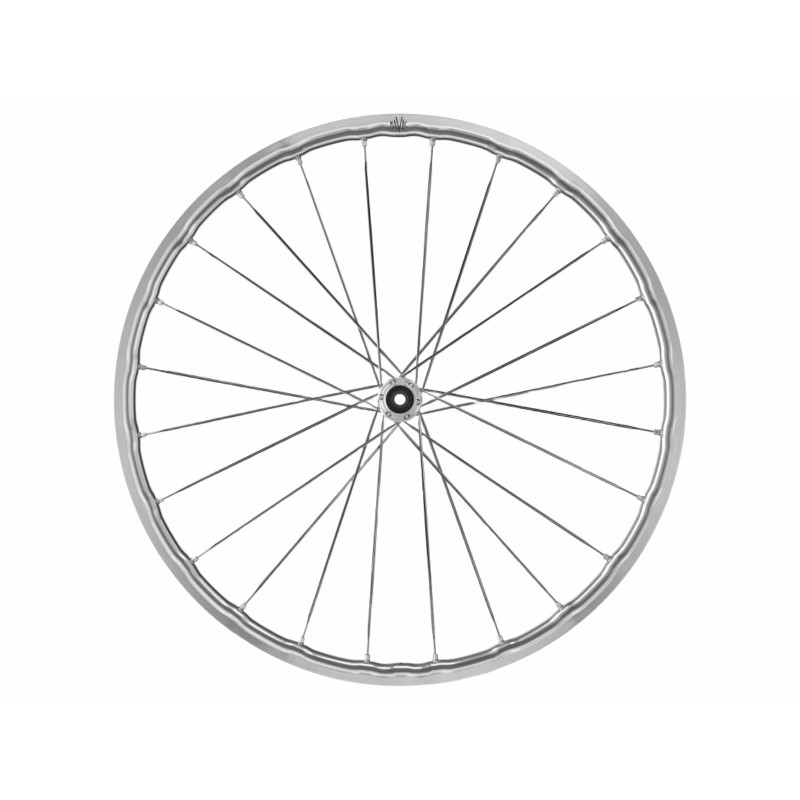

Mavic Ksyrium SL Disc Heritage Rear

The Mavic Ksyrium SL Disc Heritage rear wheel is far more than a simple wheel: it is a modern tribute to the brand’s legendary wheels, combining an iconic neo-retro style with the most advanced performance technologies. Inspired by Mavic’s heritage, this rear wheel features a distinctive aluminium finish.

Designed to excel in both training and racing, it stands as a benchmark for lightness and durability in the aluminium wheel category. Thanks to the lightweight ISM4D Maxtal alloy rim and the Fore technology eliminating the need for rim tape (for weight savings and improved sealing), it delivers outstanding lateral stiffness for maximum power transfer, while maintaining essential vertical compliance for long-distance comfort.

The Infinity hub with Instant Drive 360 (ID360) freewheel ensures ultra-fast engagement and flawless reliability, while the optimised UST Road Tubeless system provides speed, comfort and better control with no risk of pinch flats. It is the ideal wheel for demanding cyclists seeking modern performance with timeless aesthetics.

Rim

• Material: Maxtal aluminium alloy (ISM4D technology)
• Joint: SUP welded rim
• Height: 22 mm
• Internal width: 19 mm
• Drilling: Fore tubeless technology without rim tape (24 holes)
• ETRTO size: 622x19TC
• Braking: disc brake
• Tyre: UST Tubeless Ready
• Light rim technology: ISM

Spokes

• Material: stainless steel
• Shape: straight-pull, aerodynamic, double-butted, anti-rotation
• Nipples: brass, black (M6 thread)
• Count: 24
• Lacing: 2-cross (rear)

Hub

• Body and axle material: aluminium
• Body design: INFINITY
• Axle size: Rear 12x142
• Hub with Center Lock® disc mount only
• Freewheel technology: Instant Drive 360
• Freehub: Shimano HG Road
• Bearing technology: QRM Auto (self-adjusting, sealed cartridge bearings)
• Available freehub bodies:
    - Standard Light (Shimano/Sram with first cassette sprocket ≥ 11T)
    - XD-R (Sram with first sprocket < 11T)
    - Microspline (kit V3990101 sold separately)
    - CAMPAGNOLO ED (kit V3440101 sold separately)
    - CAMPAGNOLO N3W (kit V4270101 sold separately)
• Rear axle compatibility:
    - 12x142 convertible to 9x135 (kit V2510801 sold separately)
    - 12x142 convertible to 12x135 (kit V2510901 sold separately)

Use

• ASTM category 2: road and light gravel with jumps under 15 cm
• Recommended tyre sizes:
    - Minimum width 23 mm – max pressure 6.75 Bar / 97 PSI
    - Maximum width 62 mm – max pressure 3.8 Bar / 55 PSI
• Max weight: 120 kg (rider + bike)

Key technologies

• Fore (fully sealed rim eliminating the need for specific tubeless rim tape)
• UST Tubeless technology (sealed rim improving traction and control)
• QRM Auto (high-quality Mavic C3 bearings with double sealing and automatic adjustment)
• ID360 (faster engagement)
• SUP (Soudure Usinée Process – stronger, smoother rim joint)
• ISM (lightweight rim machining technology)

Warranty

• 2 years
• Extendable to 3 years by registering on the Mavic Care programme within two months of purchase

Delivered with the rear wheel

• UST valve (not installed)
• 2 multifunction adjustment tools
• User guide

Manufacturer weight: 852 g
