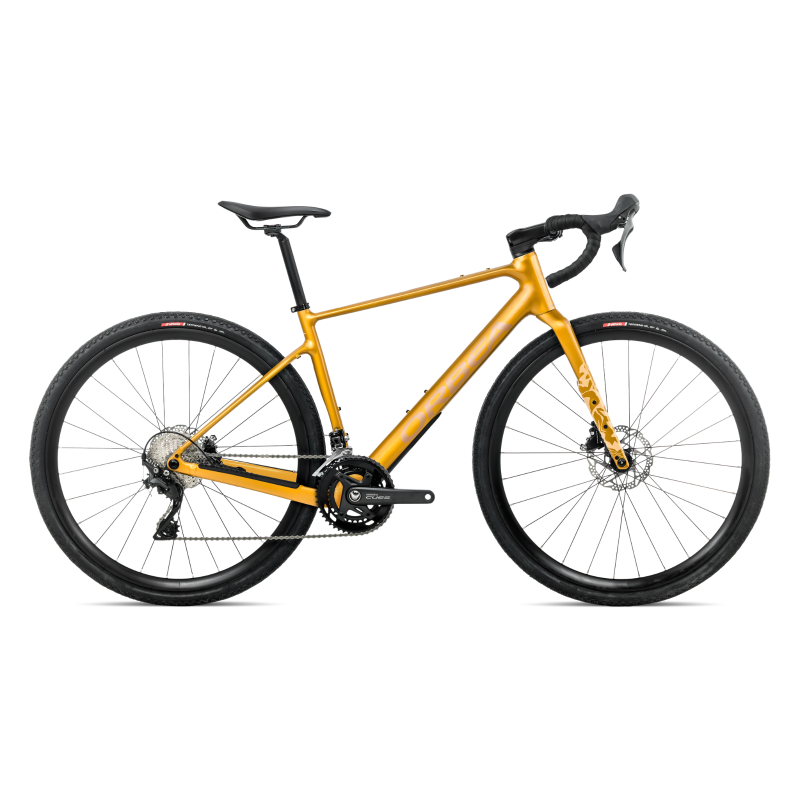

Orbea Terra H40 Gravel Bike Bumblebee Yellow - Brown (Gloss)

The Orbea Terra H40 gravel bike opens up new possibilities for cyclists seeking freedom, exploration, and performance on all kinds of trails. Built around a high-quality hydroformed aluminum frame with a High Polish finish and an OMR carbon fork, this model offers the perfect balance of stiffness, vibration absorption, and durability. Equipped with a Shimano Cues 2x11-speed drivetrain and hydraulic disc brakes, the Terra H40 delivers smooth shifting and powerful, confidence-inspiring braking, whether you’re riding on rough pavement, dirt, or demanding gravel tracks.

Orbea Terra H40 gravel bike highlights

• High Polish hydroformed aluminum frame: Lightweight, durable triple-butted tubes with polished welds deliver the sleek finish of a carbon frame.
• 100% OMR carbon fork: Optimal shock absorption and sculpted cutouts smooth out trail irregularities.
• Generous tire clearance (up to 50c): Fit high-volume tires to maximize traction, comfort, and grip off-road (compatible with 45c tires with fenders).
• Gravel Endurance geometry: Long reach and high stack paired with a stable wheelbase provide excellent control and a comfortable position over long distances.
• Bikepacking-ready: Multiple integrated mounting points on the frame and fork let you attach bottle cages, racks, and travel bags.
• ICR internal routing: Fully integrated cable routing from the stem creates a clean cockpit and maximum protection from dust and water.

Technical specifications

Frame and geometry

• Frame: Orbea Terra Hydro disc, triple-butted hydroformed aluminum, 1.5" head tube, PF bottom bracket, 12x142 mm thru-axle, internal DT routing, 27.2 mm seat tube
• Fork: Orbea Terra ICR, full carbon, tapered 1-1/8" - 1.5" steerer, 12x100 mm thru-axle, Multi-Mount MMS system, fender compatible
• Headset: FSA 1-1/2" Integrated Aluminium Cup
• Color: Bumblebee Yellow - Brown (Gloss)

Drivetrain and brakes

• Shifters: Shimano U6030
• Rear derailleur: Shimano Cues U6040 Shadow
• Front derailleur: Shimano Cues U6030
• Crankset: Shimano Cues U6040 32x46t
• Cassette: Shimano CS-RS400 11-36t 11-Speed
• Chain: Shimano LG500
• Brakes: Shimano RS405 Hydraulic Disc (Hydraulic disc brakes)

Wheels and components

• Wheels: Alloy, Tubeless Ready, 700c, 21c internal width
• Tires: Vittoria Terreno T50 mixed Gravel Sport Rigid 700x40c (clearance up to 50c)
• Thru-axles: Orbea Thru Axle 12x100 mm (front) / 12x142 mm (rear)
• Handlebar: OC Gravel GR31-R (Rise 15 mm, Reach 70 mm, Drop 110 mm)
• Stem: OC Road Performance RP23, -5º
• Seatpost: SP 0.2 Carbon, 27.2 mm, 20 mm setback
• Saddle: Fizik Terra Argo X7, 140 mm aluminum rails
• Bar tape: Orbea Eva

Size and fit guide

Use the chart below to help you choose the ideal size for your Orbea Terra H40:

• Size XS: For cyclists between 155 cm and 166 cm tall
• Size S: For cyclists between 167 cm and 172 cm tall
• Size M: For cyclists between 173 cm and 179 cm tall
• Size L: For cyclists between 180 cm and 185 cm tall
• Size XL: For cyclists between 186 cm and 191 cm tall
• Size XXL: For cyclists between 192 cm and 207 cm tall

Important information and assembly tips

• Tubeless system: The alloy rims are Tubeless compatible. Simply add valves and sealant to make the conversion.
• Rack and fender compatibility: The frame and fork have discreet threaded mounts for installing fenders and lightweight bikepacking racks.
