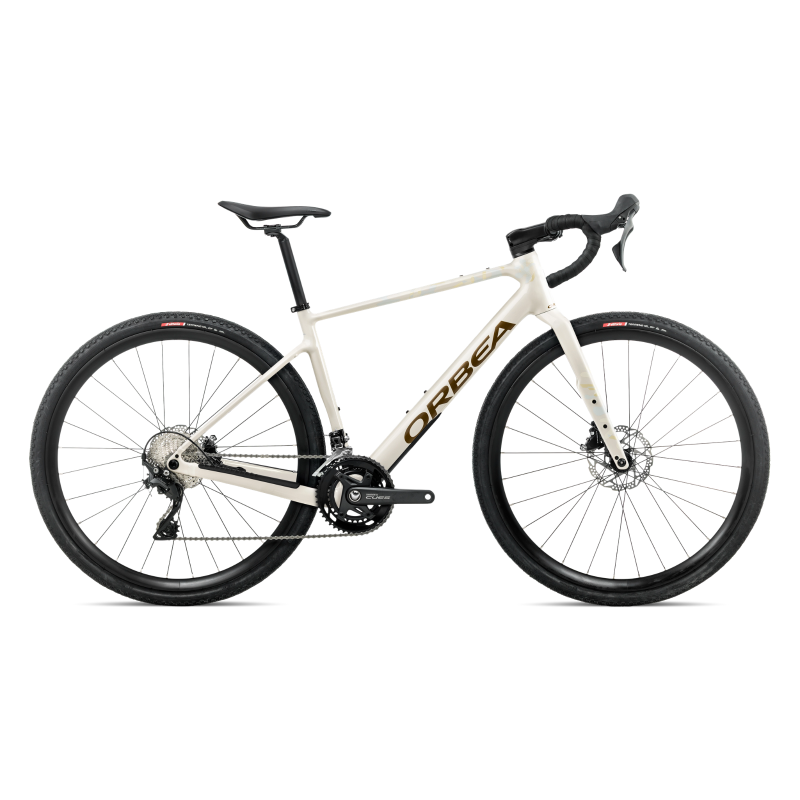

Orbea Terra H40 Gravel Bike Ivory White - Metallic Olive Green (Gloss)

The Orbea Terra H40 gravel bike opens up new possibilities for riders seeking freedom, exploration, and performance on every trail. Built around a premium hydroformed aluminum frame with a High Polish finish and an OMR carbon fork, this model offers the perfect balance of stiffness, vibration absorption, and durability. Equipped with a Shimano Cues 2x11-speed drivetrain and hydraulic disc brakes, the Terra H40 delivers smooth shifting and powerful, reliable braking, whether you're riding on rough pavement, dirt, or challenging gravel roads.

Orbea Terra H40 gravel bike highlights

• High Polish hydroformed aluminum frame: Lightweight, durable triple-butted tubes with polished welds give it the refined finish of a carbon frame.
• 100% OMR carbon fork: Optimal shock absorption and sculpted cutouts smooth out trail bumps.
• Generous tire clearance (up to 50c): Fit high-volume tires to maximize traction, comfort, and grip off-road (45c with fenders).
• Gravel Endurance geometry: A long reach and high stack paired with a stable wheelbase provide excellent control and a comfortable position over long distances.
• Bikepacking-ready: Multiple integrated mounting points on the frame and fork let you attach bottles, racks, and bikepacking bags.
• ICR internal cable routing: Fully integrated routing from the stem creates a clean cockpit and offers maximum protection from dust and water.

Technical specifications

Frame and geometry

• Frame: Orbea Terra Hydro disc, triple-butted hydroformed aluminum, 1.5" head tube, PF bottom bracket, 12x142 mm thru-axle, internal DT cable routing, 27.2 mm seat tube
• Fork: Orbea Terra ICR, full carbon, tapered 1-1/8" - 1.5" steerer, 12x100 mm thru-axle, Multi-Mount MMS system, fender-compatible
• Headset: FSA 1-1/2" Integrated Aluminium Cup
• Color: Ivory White - Metallic Olive Green (Gloss)

Drivetrain and brakes

• Shifters: Shimano U6030
• Rear derailleur: Shimano Cues U6040 Shadow
• Front derailleur: Shimano Cues U6030
• Crankset: Shimano Cues U6040 32x46t
• Cassette: Shimano CS-RS400 11-36t 11-Speed
• Chain: Shimano LG500
• Brakes: Shimano RS405 Hydraulic Disc (hydraulic disc brakes)

Wheels and components

• Wheels: Alloy, Tubeless Ready, 700c, 21c internal width
• Tires: Vittoria Terreno T50 mixed Gravel Sport Rigid 700x40c (clearance up to 50c)
• Thru-axles: Orbea Thru Axle 12x100 mm (front) / 12x142 mm (rear)
• Handlebar: OC Gravel GR31-R (Rise 15 mm, Reach 70 mm, Drop 110 mm)
• Stem: OC Road Performance RP23, -5º
• Seatpost: SP 0.2 Carbon, 27.2 mm, 20 mm setback
• Saddle: Fizik Terra Argo X7, 140 mm aluminum rails
• Bar tape: Orbea Eva

Size and fit guide

Use the chart below to help choose the ideal size for your Orbea Terra H40:

• Size XS: For riders between 155 cm and 166 cm tall
• Size S: For riders between 167 cm and 172 cm tall
• Size M: For riders between 173 cm and 179 cm tall
• Size L: For riders between 180 cm and 185 cm tall
• Size XL: For riders between 186 cm and 191 cm tall
• Size XXL: For riders between 192 cm and 207 cm tall

Important information and setup tips

• Tubeless system: The alloy rims are Tubeless compatible. Simply add valves and sealant to make the conversion.
• Rack and fender compatibility: The frame and fork feature discreet threaded mounts for installing fenders and lightweight bikepacking racks
