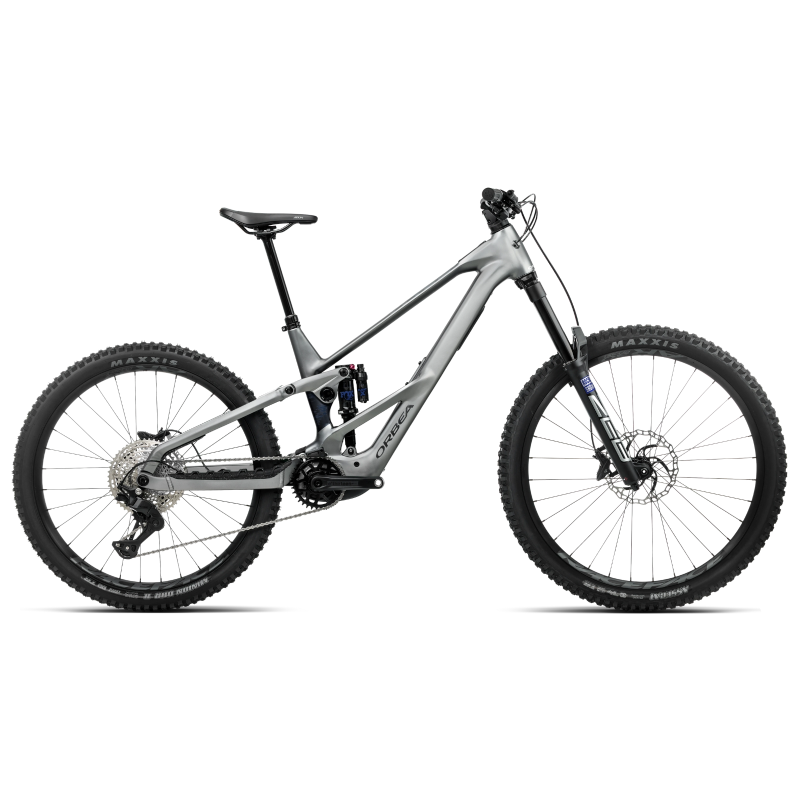

Orbea Wild LT H20 Mullet E-MTB - Titan Grey

The Orbea Wild LT (Hydro / Avinox Version) is a high-performance enduro eMTB, designed with the same gravity-racing philosophy as the renowned Rallon. Featuring a Hydro aluminum frame with an exceptionally low, centralized center of gravity, this model comes equipped with the Avinox M2 motor ecosystem configured with the RS (Rider Synergy) tune and a massive 800 Wh battery. Its agile Mullet (29" front / 27.5" rear) setup, 170 mm of travel, and ultra-durable components deliver more control, responsiveness, and traction on the most technical climbs and roughest descents.

Orbea Wild LT Bike Highlights

• Avinox M2 motor with RS tune: A custom-tuned motor (750 w and 110 Nm of torque) delivering responsive, immediate assistance for superior control and traction on the most extreme technical sections.
• Maximum range (800 Wh battery): Fully integrated 800 Wh Avinox battery paired with the BC100 wireless remote and sleek DPC100 display.
• Dynamic Hydro Mullet frame: High-quality aluminum frame configured with a 29" front wheel for rollover capability and a 27.5" rear wheel for agility.
• Gravity frame and 170 mm suspension: RockShox ZEB Select 38 mm fork paired with a FOX Float X Performance shock to conquer the most demanding terrain.
• Powerful Shimano & Galfer brakes: Shimano MT420 4-piston calipers paired with 200 mm Galfer Wave rotors front and rear.
• Reliable, integrated components: Orbea eBike-specific chain guide, OC cockpit, OC MC22 dropper post, and a reinforced DoubleDown (DD) casing rear tire.

Technical Specifications and Equipment

• Riding style: Electric enduro, aggressive all-mountain, bike park.
• Frame: Orbea Wild Hydro, Mullet setup, Concentric Boost 12x148 mm axle.
• Fork: RockShox ZEB Select Rush RC, 170 mm travel.
• Shock: FOX Float X Performance 2-Pos, 205x65 mm.
• Motor: Avinox M2 (RS configuration - Rider Synergy).
• Battery: Avinox 800 Wh (Avinox 4A charger included).
• Display & Remote: Avinox DPC100 display / Avinox BC100 remote.
• Rear derailleur: Shimano Deore M7200 SGS SHADOW RD+, 12-speed.
• Shifter: Shimano M6200 I-Spec EV, 12-speed.
• Cassette & Chain: Shimano M6200 10-51T 12-speed / Shimano M6100 chain.
• Crankset & Chainring: e*thirteen Helix Core Alloy e*spec cranks / e*thirteen Helix Race 34T Direct Mount chainring (55 mm chainline).
• Chain guide: Orbea eBike chain guide.
• Brakes: Shimano MT420 4-piston hydraulic brakes.
• Rotors: Galfer Wave Rotors 200 mm (front) / 200 mm (rear).
• Wheels: Race Face AR 30c Tubeless Ready (29" front / 27.5" rear).
• Front tire: Maxxis Assegai EXO Tubeless Ready (29").
• Rear tire: Maxxis Minion DHR II 2.40" 3C MaxxTerra DoubleDown (DD) Tubeless Ready (27.5", 120x2 TPI).
• Dropper post: OC Mountain Control MC22 (Shimano SL-MT500 I-Spec EV remote).
• Saddle: Fizik Terra Aidon X1.
• Cockpit: OC MC30 handlebar, 20 mm rise / OC Mountain Control 20 stem (0°) with OC CM-05 computer mount.
• Headset: Acros ZS56.

Materials and Construction

• Frame: High-strength hydroformed Orbea aluminum
• Crankset & Cockpit: Forged and machined aluminum from e*thirteen / OC Components
• Protection: Integrated chain guide and e-bike-specific frame reinforcements

Maintenance Tips

• Clean the bike with fresh water. Do not aim a high-pressure spray directly at the Avinox DPC100 display, BC100 remote, motor, or suspension pivots.
• Charge the 800 Wh battery at room temperature using the included Avinox 4A charger.
• Regularly check Shimano 12-speed chain tension and brake pad wear, as the Avinox M2 motor's power puts them under increased load.

Geometry and RS Handling

The Orbea Wild LT uses a low, centralized center of gravity to deliver optimal high-speed stability without compromising handling in tight corners.

• Native Mullet setup: A 29" front wheel delivers excellent rollover capability, paired with a 27.5" rear wheel for quicker acceleration and sharper direction changes.
• RS (Rider Synergy) behavior: The electronic assist is tuned to deliver natural, immediate torque with powerful pedal strokes, helping prevent rear-wheel spin on wet roots and rocks.
• Cockpit ergonomics: Clean setup thanks to Shimano I-Spec EV controls and the integrated OC CM-05 computer mount on the stem.
