Combining a Stealth Air Carbon front triangle with an all-new Stealth aluminum rear triangle, the Mondraker Zendit e-MTB features the latest-generation Avinox M2S motor and a slim 800 Wh battery

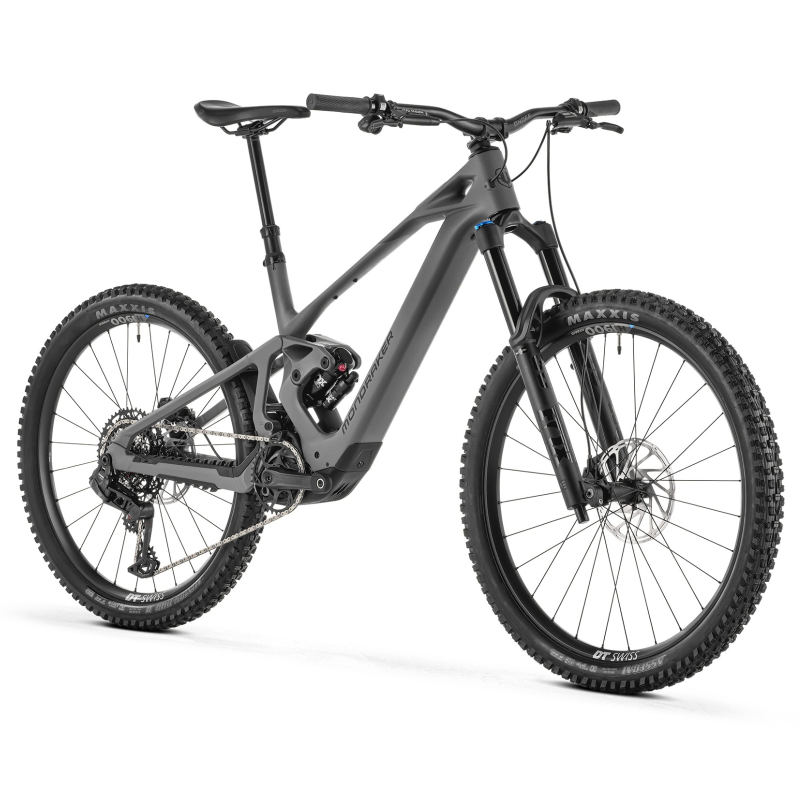

The Mondraker ZENDIT R represents the pinnacle of performance and integration for demanding E-MTB riding. Combining a Stealth Air Carbon front triangle with an all-new Stealth aluminum rear triangle, this Enduro e-MTB features the latest-generation Avinox M2S motor with an ultra-slim 800 Wh battery. With its 165 mm rear ZERO suspension platform, 170 mm of front travel, and adjustable geometry designed for a Mullet (MX) setup, the ZENDIT delivers an unmatched riding experience in terms of precision and efficiency.
Mondraker ZENDIT R bike highlights
High-tech hybrid frame: Ultra-light Stealth Air Carbon front triangle paired with a durable, forgiving Stealth aluminum rear triangle.
Avinox M2S motor & 800 Wh battery: The most integrated and powerful motor-and-battery system on the market, offering the perfect balance of range and natural ride feel.
ZERO System suspension, 165 mm / 170 mm: 165 mm of rear travel optimized to absorb the harshest impacts while maintaining excellent pedaling efficiency.
Pure Mullet setup (29" front / 27.5" rear): Combines the rollover capability and speed of a 29" front wheel with the agility and traction of a 27.5" rear wheel.
FORWARD GEOMETRY and adjustable geometry: 63.5° head angle (adjustable to 63.15° via Flip Chip) and chainstay lengths proportional to frame size.
Simplified maintenance: One bearing size throughout the frame, with dual rubber seals for maximum protection against water and dust.
Technical specifications
Riding style: E-Enduro, aggressive All-Mountain, Bike Park.
Front triangle: Stealth Air Full Carbon (6-axis post-mold machining).
Rear triangle and link: Forged/machined Stealth aluminum.
Motor: Latest-generation Avinox M2S.
Battery: Integrated 800 Wh (ultra-slim profile).
Travel: 170 mm front / 165 mm rear.
Kinematics: ZERO Suspension System.
Wheel size: Mullet / MX (29" front / 27.5" rear).
Construction and materials
Front triangle: High-modulus Stealth Air Carbon
Rear triangle and links: High-strength Stealth aluminum
Axles and hardware: CNC-machined aluminum and stainless steel
Protection and sealing: Secondary rubber seals on all frame bearings
Maintenance tips
Rinse the bike with fresh water after every ride. Do not direct a high-pressure spray at the motor, display, battery, or frame bearings.
Regularly check the suspension pivot bolts and the operation of the Flip Chip adjustment system.
Install software updates for the Avinox M2S motor and charge the battery at room temperature.
Geometry, adjustments, and fit
The Mondraker ZENDIT features a Flip Chip geometry adjustment system on the lower shock mount, allowing you to change the bike's stance to suit your riding style.
Standard position: 63.5° head angle, 77° seat angle, 345 mm bottom bracket height.
Low position: 63.15° head angle, 76.65° seat angle, bottom bracket lowered to 340 mm (reach reduced by 4 mm) for maximum stability on steep terrain.
Proportional chainstays: 450 mm chainstays on sizes S, M, and M/L; 455 mm on sizes L and XL to maintain perfect chassis balance.
Sizes and chainstay lengths
Sizes S, M, M/L: Fixed 450 mm rear chainstay length.
Sizes L, XL: Extended 455 mm rear chainstay length.
Suspension ratio: Size-specific pivot point adjustments ensure consistent shock performance, regardless of frame size.
Technical specifications and components
Frame: Zendit Stealth Air Carbon front, Stealth aluminum rear, 165 mm ZERO System, Boost 12x148 mm axle, UDH dropout, internal HHG cable routing.
Shock: Fox Float-X LV Performance, 205x65 mm, 2-position compression adjustment, low-speed rebound, air preload.
Fork: Fox 38 Float 29 GRIP Performance, 170 mm, E-Bike optimized, Boost 15x110 mm axle, 44 mm offset.
Motor: Avinox M2S.
Battery & charger: Avinox 800 Wh with Avinox 4A charger.
Dropper seatpost: Onoff Pija internal, 31.6 mm diameter, 1X bearing-actuated remote (Travel: S 140-115 mm, M 160-135 mm, ML 180-155 mm, L/XL 210-185 mm).
Saddle: Ergon SM10 E-Mountain Black.
Handlebar: Onoff S6 7050 Alloy, 31.8 mm, 800 mm width, 25 mm rise (38 mm on sizes L/XL).
Stem: Onoff S6 30 mm 0º, CNC-forged 6061 aluminum.
