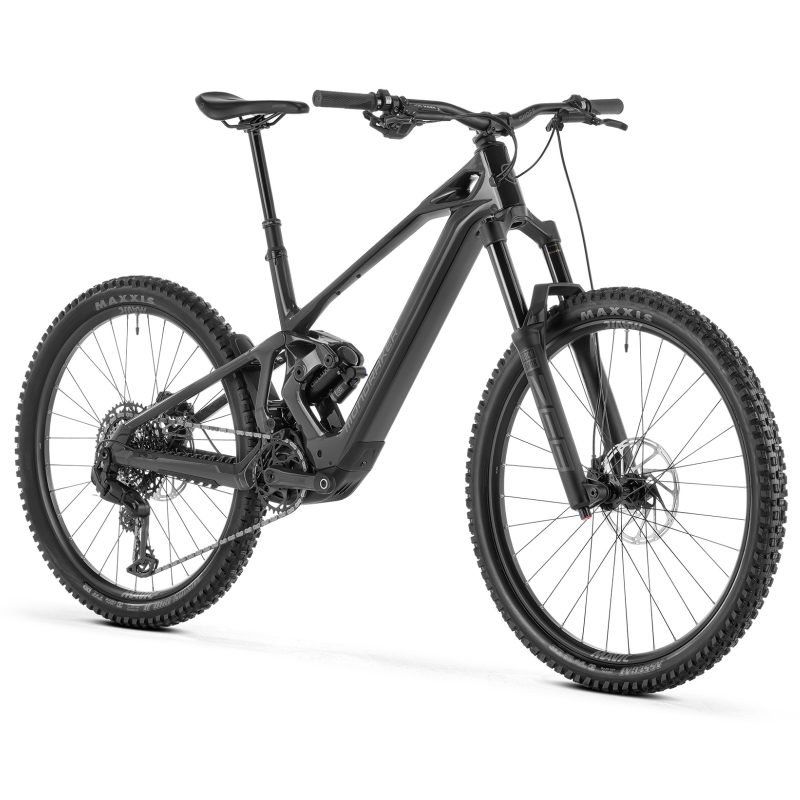

Mondraker Zendit S Electric Mountain Bike - Gray

The Mondraker ZENDIT S embodies the essence of modern, accessible E-MTB design, combining an ultra-lightweight front triangle made from Stealth Air Carbon with an all-new rear triangle made from Stealth aluminum. Powered by the latest-generation Avinox M2S motor and an integrated 800 Wh battery, this Enduro e-MTB features a mullet setup (29" front / 27.5" rear), delivering 165 mm of rear travel optimized by the ZERO Suspension system and 170 mm up front for unmatched precision and responsiveness on every trail.

Mondraker ZENDIT S highlights

• High-performance hybrid frame: Stealth Air Carbon front triangle paired with a Stealth aluminum rear triangle and linkage for the perfect balance of stiffness, compliance, and durability.
• Avinox M2S motor & 800 Wh battery: The most integrated and powerful motor-and-battery system on the market, offering exceptional range and smooth, responsive assist.
• RockShox suspension, 170 mm / 165 mm: 38 mm RockShox ZEB Base fork paired with a RockShox Super Deluxe Select shock to absorb the biggest hits while maintaining excellent support.
• SRAM Eagle T-Type 12-speed drivetrain: Direct-mount shifting on the UDH frame with the SRAM 70 Eagle T-Type groupset for fast, reliable shifts under load.
• Powerful SRAM Maven 4-piston brakes: Oversized 18 mm calipers paired with 200 mm rotors and sintered brake pads for total control on descents.
• Mavic E-Access XR30 wheels & ID360 hubs: Reinforced E-Bike-specific wheels with a 30 mm internal width, paired with the fast engagement of the ID360 freehub system.
• FORWARD GEOMETRY & adjustable geometry: 63.5° head angle (adjustable to 63.15° via Flip Chip) and size-specific chainstay lengths.
• Durable design: MAX high-capacity sealed bearings with double seals for maximum protection against water and dust.

Technical specifications and components

• Frame: Zendit Stealth Air Carbon front, Stealth aluminum rear, ZERO system with 165 mm travel, Boost 12x148 mm axle, UDH hanger, tapered head tube, internal HHG cable routing, MAX sealed bearings, 15 mm axles.
• Shock: RockShox Super Deluxe Select, 205x65 mm, Trunnion mount (Adjustments: C34 compression, R55 rebound, 4 tokens, X25 lockout force).
• Fork: RockShox ZEB Base 29, Delta RC, 170 mm, Boost 15x110 mm axle, 44 mm offset. Adjustments: low-speed compression, external rebound, air preload.
• Motor: Avinox M2S.
• Battery & Charger: Avinox 800 Wh with Avinox 4A charger.
• Display & Controls: Avinox DP100 display / Avinox BC100 wireless controls (left and right).
• Rear derailleur: SRAM 70 Eagle T-Type, 12-speed.
• Shifter: SRAM Trigger 70 T-Type, 12-speed.
• Cassette: SRAM XS-1270, 10-52T, T-Type, 12-speed.
• Chain: SRAM 70 T-Type 12-speed Flattop with PowerLock.
• Crankset & Chainring: e*thirteen Helix Core e*spec Plus 155 mm cranks / SRAM Eagle 36T T-Type steel chainring (104 BCD, 55 mm chainline).
• Brakes: SRAM Maven Base, 4-piston 18 mm calipers, 200 mm Centerline rotors (6-bolt IS), sintered metal pads.
• Rims: Mavic E-Access XR30, aluminum, 30 mm internal width, Tubeless Ready, 32 spokes.
• Hubs: Mavic (Front: Boost 15x110 mm / Rear: Boost 12x148 mm with ID360 freehub system, reinforced HG body).
• Spokes: Reinforced Mavic E-Bike-specific lacing.
• Front tire: Maxxis Assegai 29x2.5WT, Tubeless Ready, 3C MaxxGrip compound, EXO+ casing, 60 TPI, folding bead.
• Rear tire: Maxxis Minion DHR II 27.5x2.5WT, Tubeless Ready, 3C MaxxTerra compound, DoubleDown (DD) casing, 120x2 TPI, folding bead.
• Dropper seatpost: X-Fusion Manic, 31.6 mm diameter, 1X remote (Travel: S 125 mm, M 150 mm, ML 170 mm, L/XL 200 mm).
• Saddle: Ergon SM10 E-Mountain Black.
• Handlebar: ONOFF S6 1.0 7050 aluminum, 31.8 mm, 800 mm width, 25 mm rise (38 mm on sizes L and XL), 8° backsweep, 5° upsweep.
• Stem: ONOFF S6 30 mm 0º, CNC-forged 6061 aluminum.
• Grips: ONOFF Desert Pro, CNC lock-on, 135 mm (thicker size on L and XL).
• Headset: Acros custom ZS56/ZS56, internal cable routing.

Construction and materials

• Front triangle: High-modulus Stealth Air Carbon
• Rear triangle and linkage: High-strength Stealth aluminum
• Motor guards: Exclusive Mondraker high-strength plastic covers
• Hardware & Axles: Oversized 15 mm axles and MAX high-capacity sealed bearings

Maintenance tips

• Rinse the bike with fresh water after every ride. Do not spray high-pressure water directly at the Avinox M2S motor, DP100 display, battery, or frame bearings.
• Charge the 800 Wh battery at room temperature using the included Avinox 4A charger.
• Regularly check the tightness of the suspension pivots and SRAM Maven calipers, and inspect the SRAM T-Type drivetrain for wear.

Geometry, adjustments, and fit

The Mondraker ZENDIT S features a Flip Chip geometry adjustment system on the lower shock mount, allowing you to adjust the bike's stance to suit the terrain.

• Standard position: 63.5° head angle, 77° seat angle, 345 mm bottom bracket height.
• Low position: 63.15° head angle, 76.65° seat angle, bottom bracket lowered to 340 mm (reach reduced by 4 mm) for maximum stability on steep descents.
• Size-specific chainstays: 450 mm chainstays on sizes S, M, and M/L; 455 mm on sizes L and XL to maintain perfect frame balance.

Dropper seatpost travel

• Size S (380 mm): X-Fusion Manic 125 mm dropper seatpost / 450 mm chainstays
• Size M (410 mm): X-Fusion Manic 150 mm dropper seatpost / 450 mm chainstays
• Size ML (435 mm): X-Fusion Manic 170 mm dropper seatpost / 450 mm chainstays
• Size L (460 mm): X-Fusion Manic 200 mm dropper seatpost / 455 mm chainstays
• Size XL (490 mm): X-Fusion Manic 200 mm dropper seatpost / 455 mm chainstays

Size guide

• S: < 165 cm
• M: 165-175 cm
• M/L: 170-185 cm
• L: 180-190 cm
• XL: 190-195 cm
