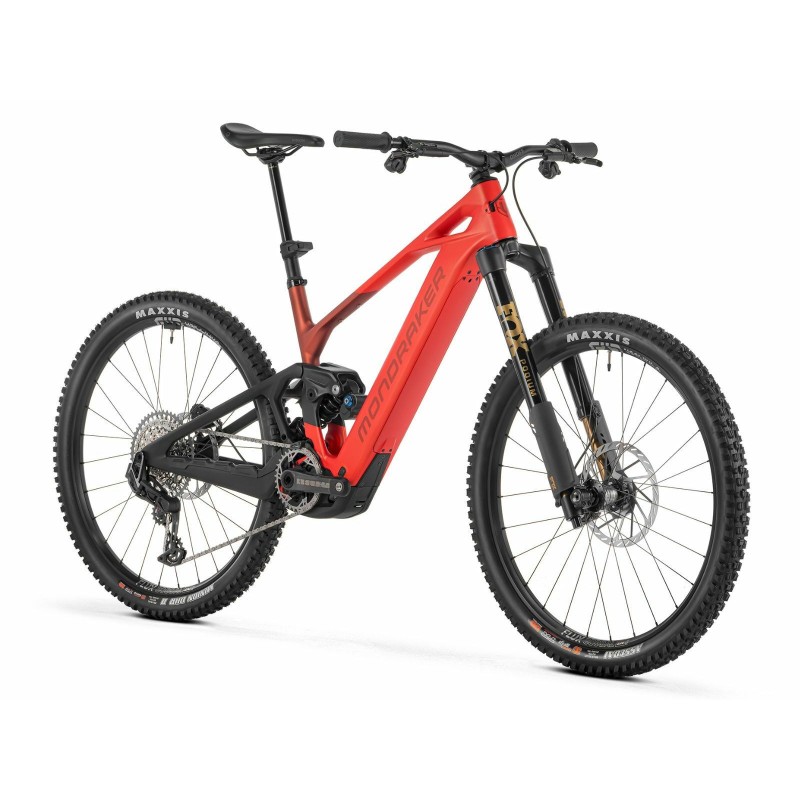

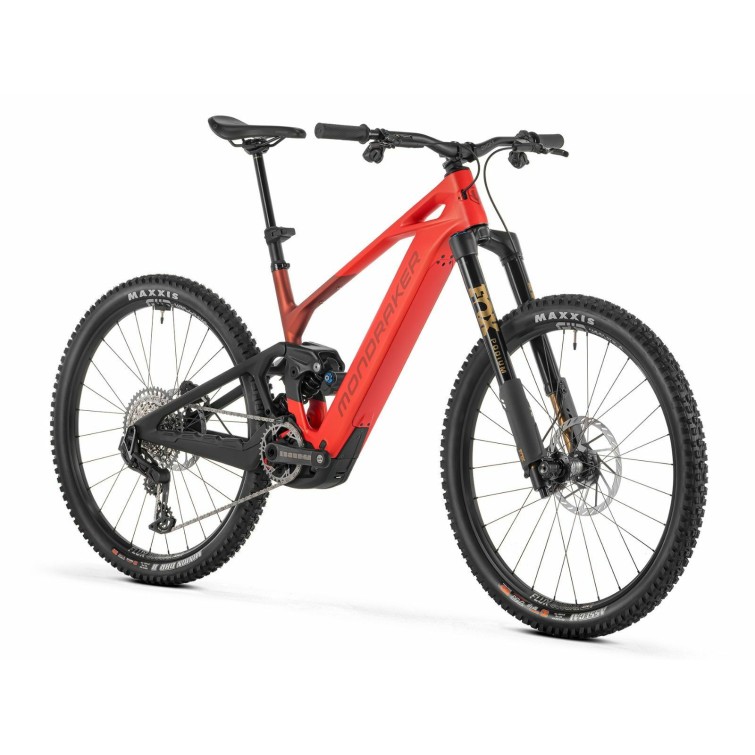

Mondraker Crafty Carbon XS - Flame Red

The Mondraker CRAFTY CARBON XR is the ultimate Enduro electric mountain bike, designed to defy the most extreme terrain. It features a top-of-the-range Crafty Stealth Air Full Carbon frame, including a carbon rear triangle, for maximum lightness and strength.

This model is powered by the Bosch Performance Line CX R Smart System motor, optimized for Enduro performance. It is equipped with the powerful Bosch Powertube 800Wh battery, offering exceptional autonomy for long days in the mountains.

The XR specification is distinguished by its long-travel suspension: a Fox Podium 29 Float GRIPX2 Factory Kashima fork with 170 mm of travel and a Fox DHX2 Factory Kashima coil shock managing 150 mm of rear travel, ensuring exceptional absorption and precise control at high speed. The reliable and precise SRAM X0 AXS Eagle T-Type wireless drivetrain is paired with lightweight carbon e*thirteen Helix Race Carbon E*Spec Plus cranks. Braking is provided by the powerful SRAM Maven Silver brakes, with HS2 220 mm discs at the front and 200 mm at the rear for formidable stopping power. Finally, the e*thirteen Grappler Flux wheels and aggressive Maxxis Assegai/Minion DHR II tyres complete this competition-grade package.

Key Features

• Full carbon Stealth Air frame for reduced weight and optimal stiffness.
• Long-lasting Bosch Powertube 800Wh battery.
• Bosch Performance Line CX R Smart System motor for powerful and reactive assistance.
• Factory Kashima suspension (170 mm Fork / Coil Shock) for uncompromising Enduro performance.
• SRAM X0 AXS Eagle T-Type wireless drivetrain, 12-speed.
• Ultra-powerful SRAM Maven Silver braking with 220 mm front disc.
• RockShox Reverb Stealth AXS wireless dropper seatpost.
• Optimized Forward Geometry and Zero Suspension kinematics.

Specifications

Frame

• Material: Crafty Stealth Air Full Carbon, 100% carbon fibre
• Kinematics: Updated Zero Suspension System, 150 mm travel
• Geometry: Forward Geometry
• Battery: Internal, removable
• Rear axle: Boost 12x148 mm, UDH
• Head tube: Tapered, HHG internal cable routing
• Wheel size: 29"
• Sizes: S, M, ML, L, XL
• Lifetime warranty (mandatory registration on the Mondraker website)

Components

• Motor: Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
• Battery: Bosch Powertube 800Wh
• Display: Kiox 400C / Bosch Mini Remote
• Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 170 mm, tapered steerer tube, Boost 20x110 m Kabolt axle, 44 mm offset. Settings: high and low speed compression, high and low speed rebound, pneumatic preload
• Shock: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low speed compression, high and low speed rebound, spring preload. Super Light Steel (SLS) spring. Trunnion top mount, 30x8 mm bottom bushings
• Shock settings: Compression CL60, Bleed 0.9, Rebound RS60, LML, Rezi B60, LML, VVCM stiffness: size S 400 lbs, size M 450 lbs, size ML 500 lbs, size L 550 lbs, size XL 600 lbs
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealed plug with blocklock
• Stem: ONOFF S9 30 mm 0º, Full CNC, alloy, 31.8 mm bore
• Handlebar: ONOFF S9 1.0 Carbon, rise: 25 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8 mm bore. Size L and XL: 38 mm rise.
• Grips: ONOFF Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
• Seatpost: RockShox Reverb Stealth AXS, wireless dropper, 31.6 mm diameter
    - Size S: 398.2x125mm
    - Size M: 448.2X150mm
    - Size ML: 498.2x175mm
    - Size L: 548.2x200mm
    - Size XL: 548.2x200mm
• Saddle: Ergon SM-10
• Front brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 mm, HS2 220 mm, 6-hole IS one-piece disc, sintered metal pads on steel
• Rear brake: Sram Maven Silver, 4-piston caliper 18 and 19.5 mm, HS2 200 mm, 6-hole IS one-piece disc, sintered metal pads on steel
• Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tool-free reach adjust
• Rims: e*thirteen Grappler Flux, hookless IW30, 6069 welded aluminium, 30 mm inner width, tubeless compatible, 28 spokes
• Front hub: e*thirteen Boost 20x110 mm, triple-butted, fully machined aluminium, 6-hole IS
• Rear hub: e*thirteen Boost 12x148 mm, Sidekick, Adjustable Dead Zone 12°/15°/18º, triple-sealed, fully machined aluminium with 6-degree engagement, 6-hole IS, XD freehub
• Front tyre: Maxxis Assegai 29x2.5WT, tubeless compatible, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear tyre: Maxxis Minion DHR II 29x2.5 WT, tubeless compatible, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
• Crankset: e*thirteen Helix Race Carbon E*Spec Plus, 160 mm
• Chainrings: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
• Chain: Sram GX Eagle T-type, 12s, Powerlock
• Rear derailleur: Sram X0 Eagle AXS, T-Type, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1275, 10-52T, T-type, 12s
• Pedals: NONE

Weight: 24.4 kg

Size Information

• S: < 165 - 165 (< 65 - 65 in)
• M: 165 - 175 cm (65 - 69 in)
• ML: 170 - 185 cm (67 - 73 in)
• L: 180 - 190 cm (71 - 75 in)
• XL: 190 - > 195 cm (75 - > 77 in)
