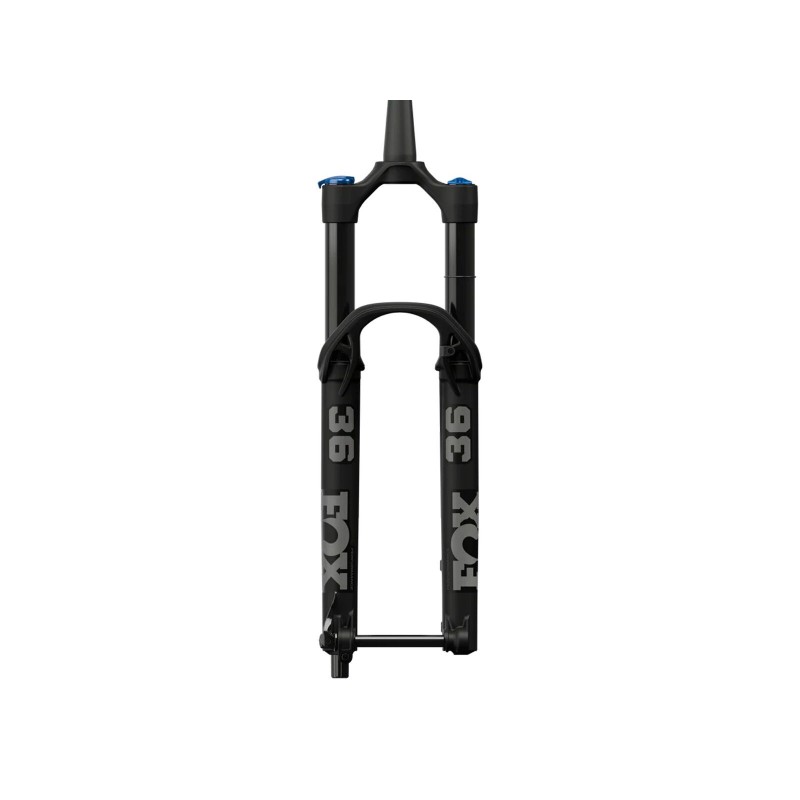

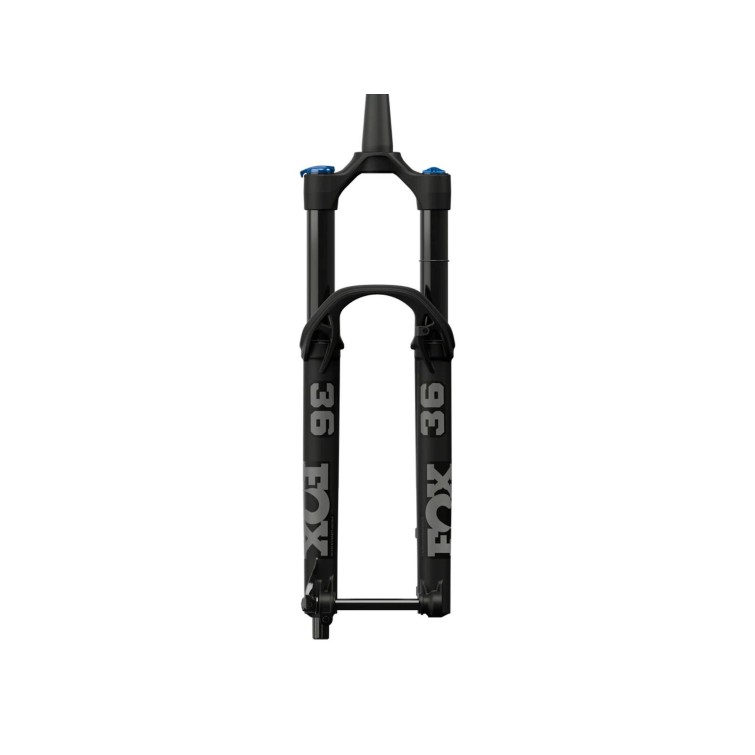

Fox Racing Shox 36 Float 29 Performance GRIP Fork - Black

The Fox 36 Float 29" Performance is the ultimate fork for All-Mountain and Enduro riders seeking downhill performance. Designed for aggressive riding, it features a stiff 36 chassis and 160 mm of travel to deliver enduro-level performance without the weight of a Gravity model.

The latest evolution of this iconic fork includes a redesigned arch for improved torsional stiffness, air/oil bypass channels to optimize lubrication, and a floating axle for better stanchion alignment and minimal friction.

Its FLOAT EVOL air spring delivers a progressive and consistent feel, even under the most demanding conditions.

With its 160 mm of travel and GRIP 3 POS damper, the 36 Float Performance gives modern All-Mountain riders the responsiveness and control they need to tackle technical trails.

The GRIP 3 POS damper offers the following adjustments:

• Three-position compression (Open / Medium / Firm)
• Rebound

Weighing just 1929 g, this fork is ideal for demanding competitors.

Specifications

• Travel: 160 mm
• Steerer: Tapered (1.5 Tapered)
• Stanchions: 36 mm – Black anodized
• Lowers: 29" – With air/oil bypass channels
• Arch: Standard
• Spring: Air – FLOAT EVOL
• Damper: GRIP – 3 positions (Open / Medium / Firm)
• Adjustments:
  - Low-speed compression (3 positions)
  - Low-speed rebound (10 clicks)
• Axle: 15x110 mm Boost – Kabolt X
• Offset: 44 mm
• Brake mount: PostMount 200 mm (compatible up to 230 mm)
• Colour: Black

Weight: starting from 1920 g

Delivered with:

• Star nut
• Brake hose guide
• 2 volume spacers
• User manual + FOX sticker

User manual
