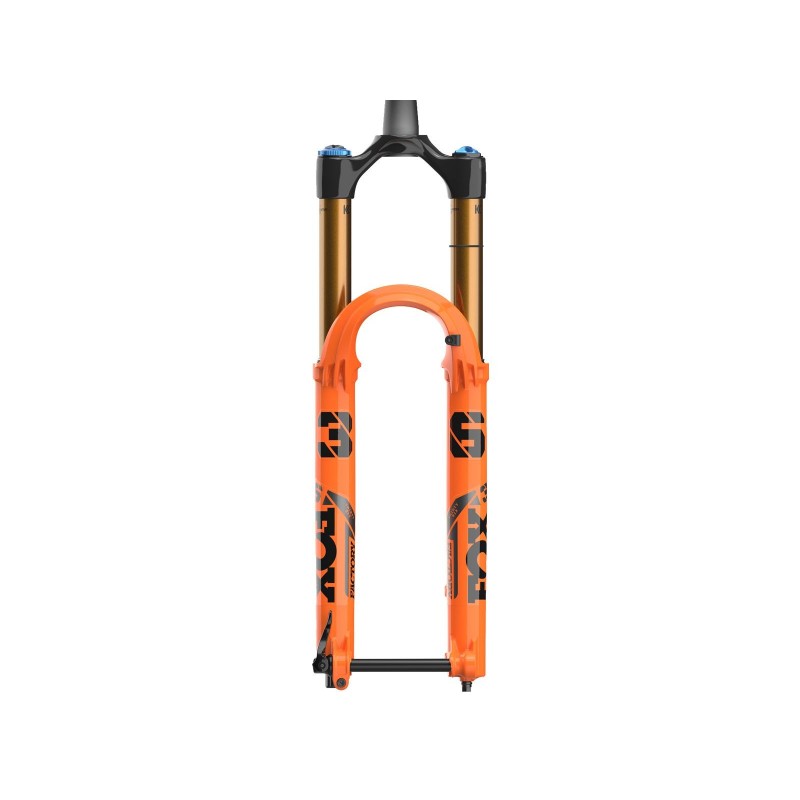

Fox Racing Shox 36 Float 27.5" Factory Grip 2 Orange 160 mm Boost

Optimized for 150-160 mm of travel, and packing the same revolutionary feature seat as the new 38, the Fox 36 perform more than ever

Lower legs feature a lot of innovations : bleeders allow for atmospheric pressure equalization at the simple press of a button, air/oil channels help alleviate the increasing air pressure as the fork compress and allow oil to circulate and lubricate the foam rings and bishings, new lower leg arch improve stoffness to weigh ratio, and a floatting axle system allow a perfect alignment of the chassis with the hub eliminating unwanted frictions between upper and lower legs.

Air Spring of the Fox 36 use the updated Float Evo technology that increase negative air spring volume optimizing small bump sensitivity , offering better mid stroke support and more tunable bottom-out progression

Damper side, the Fox 36 is equipped with the new Grip 2 Cartridge that was taken to the next level by adding the VVC (for Variable Valve Control) technology to the high speed compression circuit .

Features

• Travel : 160 mm
• Steerer : Tapered
• Upper Tube : 36 mm with Kashima Coat
• Lower legs : 27.5'' with Bleeders and Air/Oil Channels
• Crown : Aluminium
• Spring : Air (Float Evol)
• Damper : GRIP2 VVC Cartridge
• Settings :
    - Preload
    - High Speed Rebound in 8 clics and Low Speed Rebound in 16 clics
    - High Speed Compression in 8 clics and Low Speed Compression in 16 clics
• Axle : 15x110 mm floating axle with QR lever
• Rake : 44 mm
• Brake Mount : PostMount 180 mm
• Max Rotor Size : 230 mm
• Colour : Orange
• Optional mud guard designed specifically for the new 36 and 38 with 4 point direct mount attachement (sold separetely)
• Comes with starnut, hose guide and 3 volume spacers

Weight : from 1965 gr

User manual
