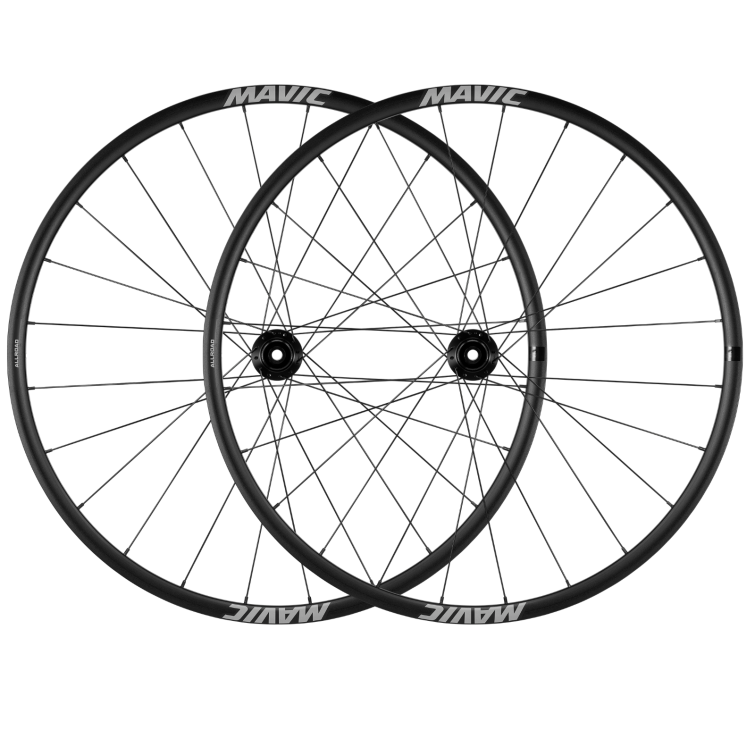

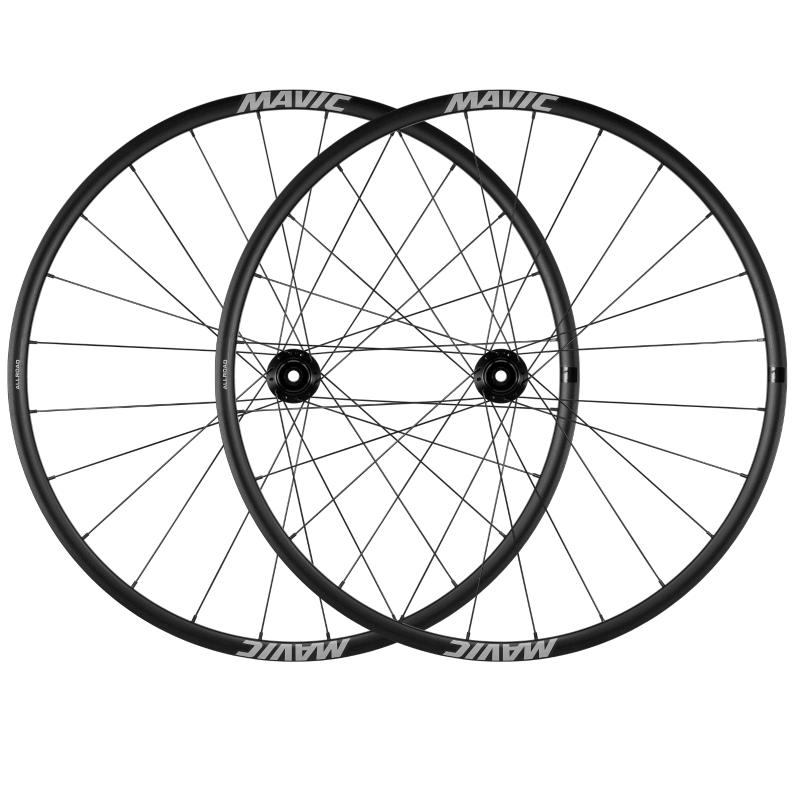

Mavic Allroad Wheelset

The Mavic Allroad wheelset is the ideal choice for transforming your gravel or endurance road bike into a true machine for exploring all kinds of terrain. Featuring wide aluminum rims with a 25 mm internal width, the ultra-responsive Instant Drive 360 freehub system, and a pre-installed tubeless rim tape, this wheelset combines durability, comfort, and reliability on asphalt and rough trails alike.

Mavic Allroad wheelset highlights

• 25 mm internal width: Provides ideal tire support for wider tires (28 mm to 64 mm) at lower pressures, ensuring more traction and comfort.
• Tubeless-ready: Traditional drilled rim with pre-installed airtight rim tape and included UST valves.
• Instant Drive 360 freehub body: Dual-pawl system for ultra-fast engagement (9°) and optimal power transfer.
• Durable, robust construction: S6000 aluminum alloy rims paired with 24 double-crossed steel spokes to absorb impacts.
• Center Lock disc brakes: Deliver consistent, controllable braking power in any weather.
• Reliable French engineering from Mavic: Built to last with self-adjusting, sealed QRM cartridge bearings.

Technical specifications

• Riding style: Gravel, All-Road, Endurance, Bikepacking.
• Rim material: S6000 aluminum.
• Rim height: 21 mm.
• Internal width: 25 mm (external width: 28 mm).
• Freehub system: Instant Drive 360 (ID360).
• Disc mount: Center Lock (AFS).
• Thru-axles:
    - Front 12x100 mm (convertible to quick release)
    - Rear 12x142 mm (convertible to quick release).
• Wheelset weight: 1 950 g (Front: 915 g / Rear: 1 035 g).

Components and materials

• Rims: S6000 aluminum
• Spokes: 100% steel (round, butted)
• Hubs: Aluminum bodies and steel axles
• Bearings: Sealed cartridge (QRM technology)

Maintenance tips

• Clean the wheels with fresh water and a sponge or soft cloth (avoid spraying the hubs directly with a high-pressure washer).
• Check the condition of the tubeless sealant regularly (replace every 3 to 6 months).
• Lubricate the ID360 freehub mechanism only with the recommended Mavic-specific grease.

Compatibility and installation

To get the most out of your Mavic Allroad wheelset, be sure to follow the installation and tire recommendations.

• Recommended tire size: 28 mm to 64 mm (1.1" to 2.5").
• Tire type: Tubeless Ready (UST) or Tube Type (with inner tube).
• Rim tape: Factory pre-installed tubeless rim tape.
• Cassette body: Compatible with Shimano/SRAM 10/11/12-speed - SRAM XDR - Shimano Microspline (Campagnolo compatible via separately sold cassette body).
• Weight limit: Maximum supported weight for the wheels: 135 kg (including bike).

Tubeless (UST) setup

• Tire installation: Install the included UST valve, mount your Tubeless Ready tires, add the recommended amount of sealant, and inflate using a floor pump or compressor.
• Inflation pressure: Never exceed the maximum pressure indicated on the rim and tire.
