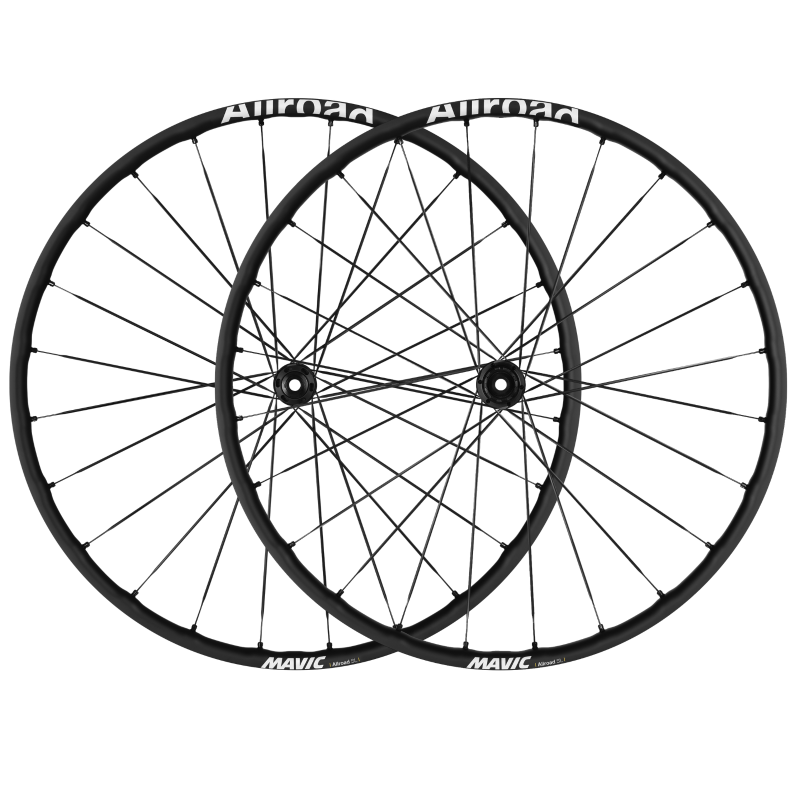

Mavic Allroad SL Wheelset

The Mavic Allroad SL wheelset is designed to deliver an ultra-smooth, fast, and responsive ride on challenging gravel trails, rough roads, and bumpy paths. With Maxtal aluminum rims machined using ISM4D technology, a 25 mm internal hookless width, and a native Fore Tubeless design that requires no rim tape, this wheelset combines exceptional lightness (1,655 g per pair), maximum durability, and dynamic performance on all terrain.

Mavic Allroad SL wheelset highlights

• ISM4D machining & Black Shield treatment: Removes all excess material for maximum weight savings at the rim's circumference while providing enhanced protection against rock impacts and scratches.
• Fore technology (tubeless without rim tape): Undrilled upper rim bridge creates a rim that's 20% stiffer, fully airtight, and saves 60 g of rim tape per pair.
• 25 mm internal hookless width (TSS): Hookless profile optimized to accommodate a wide range of tubeless tires from 29 mm to 64 mm at low pressures.
• Patented aerodynamic spokes: Straight, aero-profile spokes deliver exceptional responsiveness and excellent lateral stiffness under heavy loads.
• Instant Drive 360 freehub & Infinity hubs: Ultra-fast 9° engagement via a dual-pawl system and optimized, non-contact spoke lacing.
• QRM Auto bearings: Sealed cartridge bearings with automatic adjustment for play-free rotation and long-lasting performance.

Technical specifications

• Riding style: Gravel, All-Road, Bikepacking, Endurance (ASTM Category 2).
• Rim material: Maxtal aluminum alloy (SUP welded).
• Rim height: 22 mm.
• Internal width: 25 mm (ETRTO 622x25TSS, hookless profile).
• Spoke count / drilling: Fore technology (24 holes front and rear, no drilling through the upper rim bridge).
• Freehub technology: Instant Drive 360 (ID360, 9° engagement / 40 teeth).
• Freehub body included: Shimano / SRAM HG Road or SRAM XD - (Compatible with Shimano Microspline or Campagnolo with an optional freehub body)
• Rotor mount: Center Lock® only.
• Thru-axles: Front 12x100 mm / Rear 12x142 mm (convertible to QR quick release with adapters not included).
• Spokes: 24 stainless steel, straight, aero-profile, butted, anti-rotation spokes per wheel (2-cross front/rear).
• Manufacturer's weight: 1,655 g per pair (Front: 773 g / Rear: 882 g).

Construction and materials

• Rims: 100% Maxtal aluminum alloy with a matte Black Shield finish
• Spokes: 100% stainless steel (M7 brass nipples)
• Hubs: Aluminum bodies and axles (Infinity design)
• Bearings: Sealed cartridge bearings (QRM Auto technology)

Maintenance tips

• Clean the wheels with fresh water and a sponge or soft cloth (avoid directing a high-pressure spray at the hubs and freehub).
• Check and replace the tubeless sealant regularly (every 3 to 6 months).
• Lubricate the ID360 freehub mechanism only with the recommended Mavic-specific grease.

Compatibility, tires, and setup

To ensure optimal performance and safety on your gravel rides, follow the tubeless setup and tire pressure recommendations.

• Approved tire width: Tubeless Ready tires from 29 mm to 64 mm (recommended widths: 30 mm to 64 mm).
• Tire compatibility: Tubeless Ready tires only (TSS / Hookless profile). Check the tire manufacturer's hookless compatibility recommendations.
• Maximum approved pressures: 29 mm tire: max 4.19 Bar / 60.8 PSI — 64 mm tire: max 2.45 Bar / 36 PSI.
• Cassette body: Compatible with Shimano/SRAM HG Road or SRAM XDR - (Convertible to Campagnolo or Shimano MicroSpline with optional freehub bodies).
• Weight limit: Maximum supported bike weight: 135 kg (including the bike).

What's included and tubeless setup

• Included accessories: User guide, 2 UST valves (not installed), and 2 multifunction adjustment wrenches.
• Fore Tubeless benefit: No rim tape required. Install the included UST valves directly, fit your Tubeless Ready tires, and add the recommended amount of sealant.
