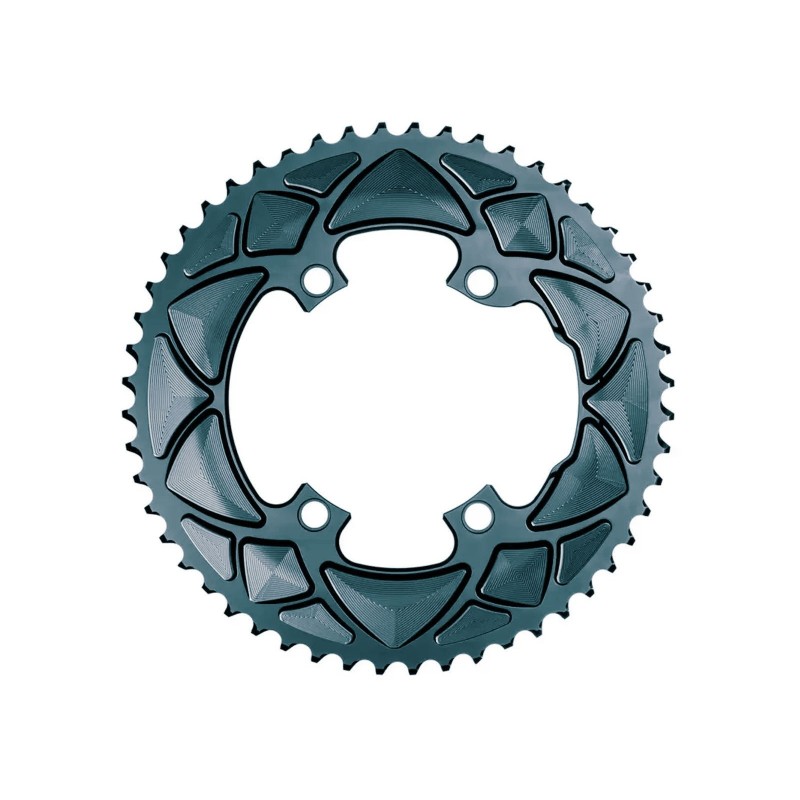

Absolute Black Premium Road 110/4 Chainring M9100/8000 (Shimano asymetrical) - Grey

Absolute Black Premium Premium Shimano 110/4 (bolt pattern) chainrings are designed for 110/4 bolts cranks like Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2 and Ultegra 8000, R8020, R8050 & 8070 Di2, 105- R7000, R7020, R7070 and many others. These are finest shift-able chainrings on the market

Features

• Material & Finish : cnc machined 7075 Txxx Aluminum. Long-lasting construction. Type II anodizing
• Compatibility : Shimano Dura-Ace 9100, R9120, R9150 & R9170 Di2 and Ultegra 8000, R8020, R8050 & 8070 Di2, 105- R7000, R7020, R7070.
• Thickness : 5 mm for stiffness
• Ramps  on big chainring are specially configured for combinations 50/34 - 52/36 - 53/39
• BOLTS : For Outer chainring please order Long bolts.
• Colour : Grey

Weight : 50T (114g)

Advantages of Absolute Black chainrings:

• Stiffer than others chainrings thanks to its 5mm construction
• Bespoke AbsoluteBlack 6 point ramp and recess shifting design shifts better than any other brand and model of chainring
• One of a kind look
• Finest design provides excellent strength to  weight ratio

Installation steps

• First, you need to remove your crank from your bike. Once removed, unscrew 4 bolts that hold two chainrings together. Remove both original rings.
• Locate the new inner chainring and install it on the crank
• The bolt holes on the small chainring are recessed – so the nut heads will sit flush with the surface of the chainring - these recesses should face you when mounting the bolts.
• Absolute Black outer chainrings have a specific recess to accommodate the rear edge of the crank arm - position the outer ring to line up that recess with the crank arm.
• If you are only switching the inner chainring - use the original bolts that came with your crank. If you are switching to a pair of rings, you will need a set of regular ‘double’ chainring bolts.
• Tighten all four bolts with force of about 5-7Nm.

Front derailleur adjust
