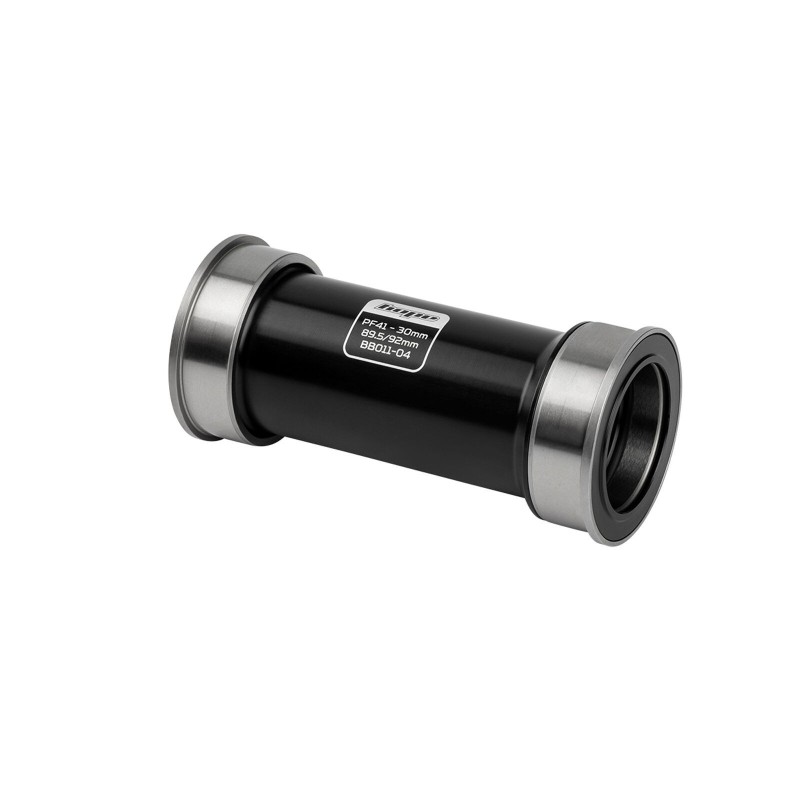

Hope Press FIT 41 mm Bottom Bracket for 30 mm and DUB spindle

Hope press fit bottom bracket for 41 mm Press Fit frames, compatible with cranksets featuring a 30 mm or 28.99 mm DUB spindle (adapter included). Equipped with Swiss-made sealed bearings, a fully sealed internal sleeve, and bearing covers, this bottom bracket is available in several versions to fit almost all frame widths: 86 mm / 89.5 to 92.5 mm / 104.5 to 107 mm / 121 mm

Key features of the Hope Press Fit 41 mm bottom bracket

• Hope's renowned build quality
• Durable and resistant Swiss-made sealed bearings
• A sealed internal sleeve for optimal weather protection
• Compatibility with 30 mm, DUB and DUB Wide cranksets

Specifications

• Compatible frame diameter: 41 mm
• Swiss-made stainless steel sealed bearings for maximum durability
• Compatible frame widths:
    - 86 mm
    - 89.5 mm to 92 mm
    - 104.5 mm to 107 mm
    - 121 mm
• Compatible crank axle diameters:
    - 30 mm
    - 28.99 mm DUB (adapter included)
• Compatibility:
    - Hope cranksets
    - Race Face Cinch
    - Sram DUB (for WIDE versions, a separately sold spacer is required, see below)
• For Sram DUB WIDE cranksets, the following spacer is required:
    - 86.5 mm shell: BB016-RW (sold separately) for 47 mm chainline
    - 89.5–92 mm shell: BB016-MW (sold separately) for 55 m chainline
• Color: Black
• Very easy to maintain
• Requires a specific tool for installation (sold separately)

Support documents

Hope PF41 bottom bracket installation instructions
Instructions for converting the bottom bracket to DUB and DUB WIDE formats
