Mavic Roue arrière Deemax Park 29 12x150/157 – Corps Standard HG
CR17177

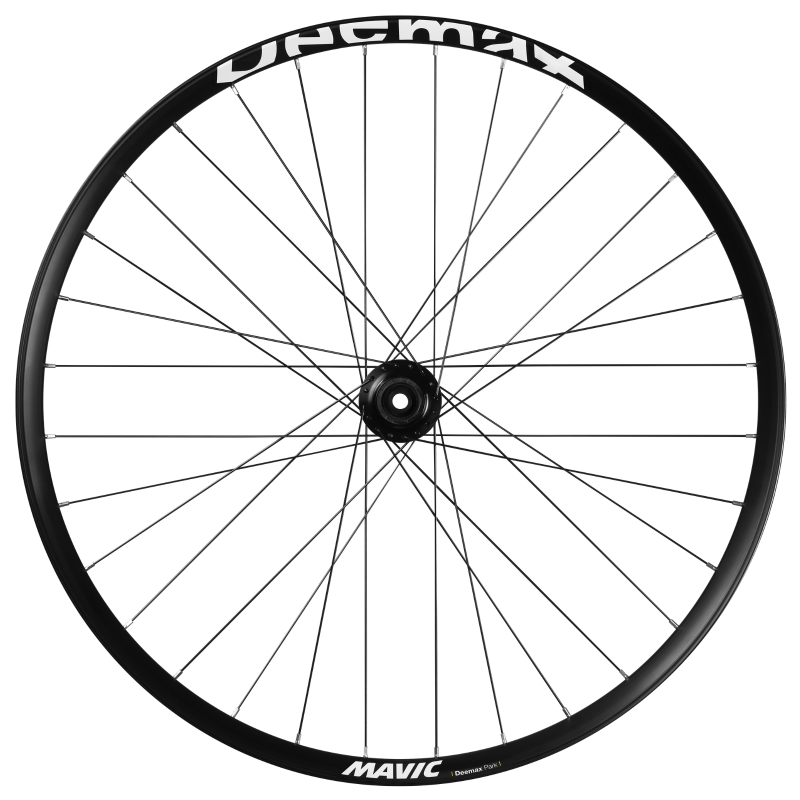

The Mavic Deemax Park 29" 12x157 mm rear wheel is built to handle the harshest landings and most extreme impacts in Freeride, Downhill (DH), Dirt, and aggressive Enduro
The Mavic Deemax Park 29" rear wheel is built to handle the harshest landings and most extreme impacts in Freeride, Downhill (DH), Dirt, and aggressive Enduro (ASTM Category 5). Developed in collaboration with riders from Team Mavic, this ultra-durable Maxtal aluminum wheel features 32 J-Bent spokes and Pinch Flat Protection (PFP) technology to reduce the risk of flats by 20%. Versatile, easy to repair, and built to last, it lets you tackle big jumps and gravity trails with complete peace of mind.
Mavic Deemax Park 29" rear wheel highlights
Ultra-durable 32-spoke design: 3-cross lacing with 32 steel J-Bent spokes for maximum resistance to heavy landings and lateral forces.
PFP (Pinch Flat Protection) technology: Wider rim wall profile drastically reduces the risk of tire cuts and pinch flats.
30 mm internal width: Asymmetric Maxtal alloy rim provides ideal tire support for wide tires (47 mm to 76 mm).
CLASSIC ID360 hub (24 teeth): Low-maintenance Instant Drive 360 freehub system (15° engagement), tool-free to disassemble and built to last.
Mavic serviceability and durability: Easy-to-replace J-Bent spokes, Tubeless rim tape installed at the factory, and 2 spare spokes included.
Boost rear axle standard: 12x157 mm size compatible with 12x150 mm using separately sold adapters
Technical specifications
Position: Rear.
Riding style: Freeride, Downhill (DH), Dirt, Enduro, Bike Park (ASTM Category 5).
Wheel size: 29" (ETRTO size: 622x30TC).
Rim material: Maxtal aluminum alloy (SUP welded joint, machined).
Rim depth: 22 mm.
Internal width: 30 mm (asymmetric Tubeless Ready profile).
Rim / drilling: Traditional drilling (32 holes).
Spokes: 32 round, 3-cross J-Bent steel spokes.
Hub: Aluminum CLASSIC design with QRM Auto sealed cartridge bearings.
Freehub body included: Shimano HG (with cassette spacer).
Rotor standard: 6-bolt (IS) mount only.
Rear axle: 12x157 mm thru-axle compatible with 12x150 mm using separately sold adapters
Manufacturer weight: 1,345 g.
Materials
Rim: 100% Maxtal aluminum alloy (SUP weld)
Spokes: 100% steel (J-Bent)
Spoke nipples: Steel with clear ABS thread-locking compound
Hub: Aluminum body and axle
Bearings: Sealed cartridge (QRM Auto technology)
Maintenance tips
Clean the wheel with fresh water after each bike park session (avoid using a pressure washer directly on the hub).
Check the tension of all 32 spokes regularly to maintain wheel trueness and stiffness.
ID360 hub maintenance: Remove the freehub body by hand without tools to clean and grease the 24-tooth ratchets.
Compatibility, tires, and installation
To ensure optimal performance and safety on gravity trails, follow the recommended tire pressure and tire specifications.
Approved tire widths: Minimum tire width of 47 mm (1.85") to maximum of 76 mm (3.00").
Maximum approved pressures: 47 mm tire: max 3.6 Bar / 52 PSI — 76 mm tire: max 2.45 Bar / 36 PSI.
Weight limit: Maximum supported bike weight: 150 kg (including the bike).
What's included and Tubeless setup
Included accessories: User guide, UST rim tape (preinstalled), UST valve (not installed), HG cassette spacer, and 2 spare spokes.
Tubeless Ready setup: Since the rim tape is preinstalled, install the included UST valve, fit your Tubeless tire, and add the recommended amount of sealant.
