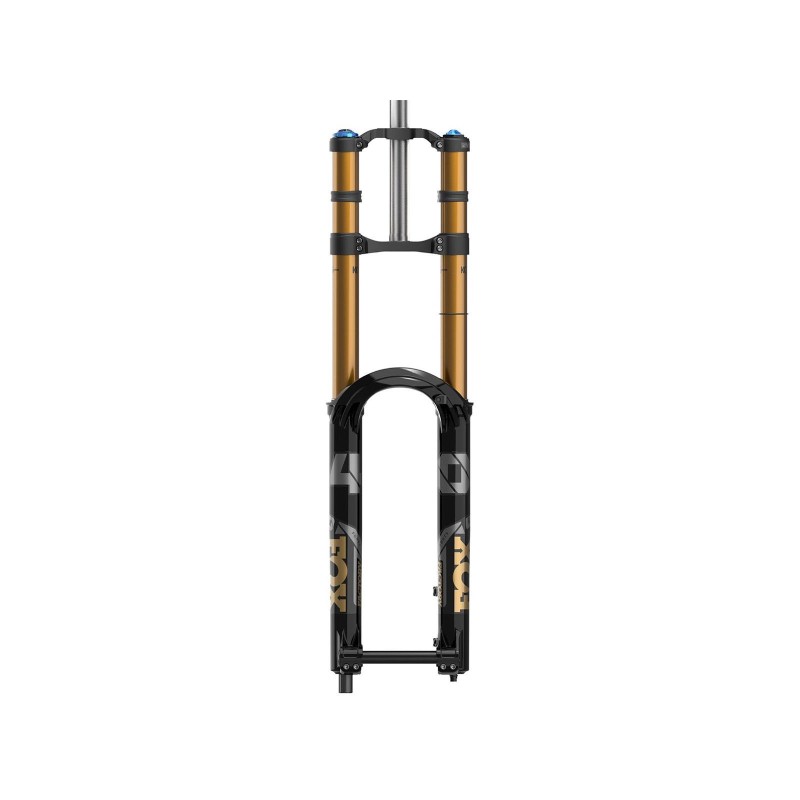

Packed with features to exceed the demands of Fox Factory level riders, the new Fox 40 Float 29" is now available with the new downhill-focused GRIP X2 damper with 203 mm of travel
Lower legs of the fork include new generation of bushings that minimize frictions, and a lot of interesting features : bleeders allow for atmospheric pressure equalization at the simple press of a button, air/oil channels help alleviate the increasing air pressure as the fork compress and allow oil to circulate and lubricate the foam rings and bishings, new lower leg arch improve stoffness to weigh ratio, and a floatting axle system allow a perfect alignment of the chassis with the hub eliminating unwanted frictions between upper and lower legs.
Air Spring of the Fox 40 use the updated Float Evo technology that increase negative air spring volume optimizing small bump sensitivity , offering better mid stroke support and more tunable bottom-out progression
And finally, the major innovation lies in the hydraulics, with the introduction of the GRIP X2 damper, born from motocross experience and wich is a true flagship of the brand in terms of adjustability and performance. The GRIP X2 damper allows the fork to stay higher in its travel and offers a high level of customization for compression and rebound settings. To achieve this, Fox reworked the internal parts of the cartridge, increasing the piston rod diameter from 8 mm to 10 mm, the base valve from 20 mm to 24 mm, and the valve stack from 7 shims in the previous version to 23 shims in this new generation, providing more customization options
Features
Travel : 203 mm
Steerer : Straight 1"1/8
Upper Tube : 40 mm with Kashima Coat
Lower legs : 29'' with Bleeders and Air/Oil Channels
Crown : Aluminium
Spring : Air (Float Evol)
Damper : GRIP X2 Cartridge
Settings : - Preload - High speed rebound in 8 clicks and Low Speed Rebound in 16 clics - High Speed Compression in 8 clics and Low Speed Compression in 18 clics
Axle : 20x110 mm Boost
Rake : 52 mm
Brake Mount : PostMount 203 mm
Max Rotor Size : 230 mm
Colour : Black
Optional mud guard designed specifically for the new 40 with 4 point direct mount attachement (sold separetely)
Comes with starnut, hose guide and 3 volume spacers
