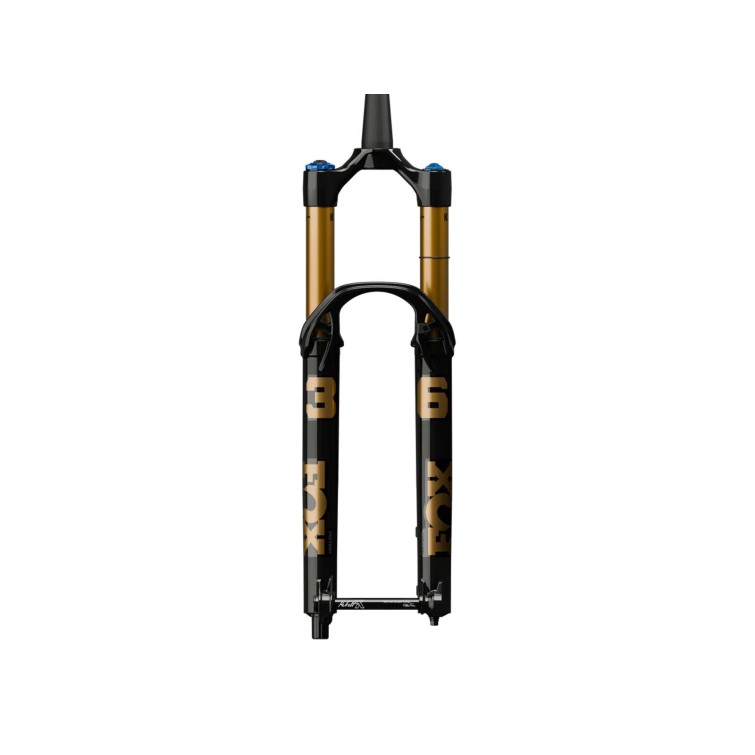

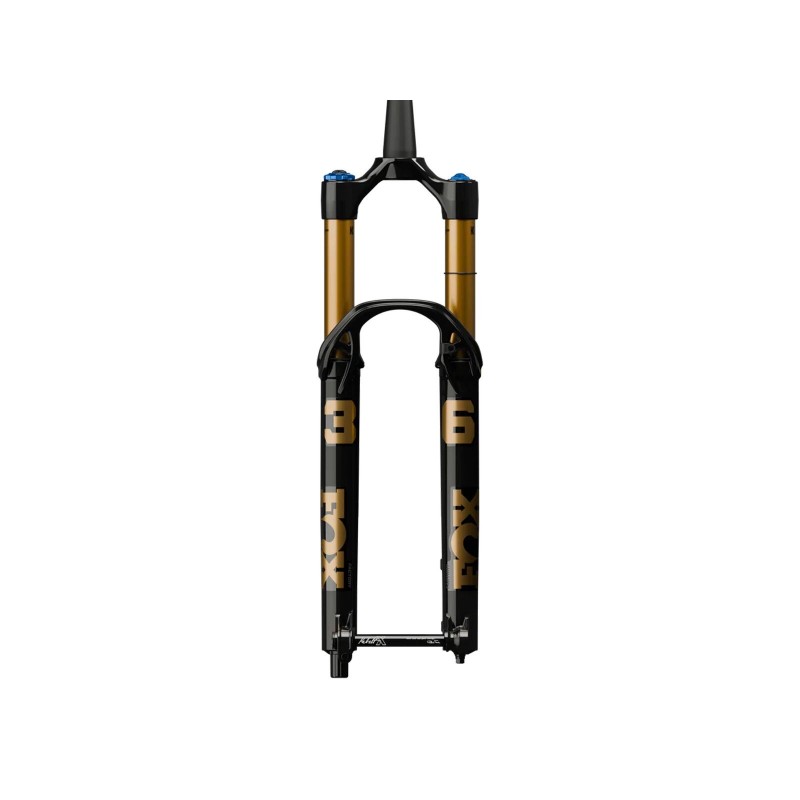

Fox Racing Shox 36 Float 29 Factory Grip X - Black

The 36 Float Factory GRIP X is the ultimate All-Mountain fork! Designed for demanding riding, it features a rigid 36 chassis and 150 or 160 mm of travel to deliver enduro-level performance without the weight of a Gravity fork.

The latest evolution of this icon includes a redesigned arch for increased torsional stiffness, air/oil bypass channels to optimise lubrication, and a floating axle for better stanchion alignment and minimal friction.

Its FLOAT EVOL air spring delivers a progressive and consistent feel, even in the most demanding conditions.

On the damping side, the fork is equipped with the GRIP X cartridge: a highly precise Trail damper, lighter than the GRIP X2, with 3-way adjustability (rebound, low-speed compression, high-speed compression) and a quickly accessible FIRM mode, ideal for efficient pedalling between technical sections.

Specifications

• Travel:
    - 150 mm
    - 160 mm
• Steerer: Tapered aluminium
• Stanchions: 36 mm with Kashima coating
• Lowers: 29"
• Crown: Aluminium
• Spring: Air (Float Evol)
• Damping: GRIP X Cartridge
• Adjustments:
    - Air preload
    - Low-speed rebound with 17 clicks
    - High-speed compression with 15 clicks and low-speed compression with 16 clicks
    - FIRM mode on high-speed compression
• Axle: 15x110 mm floating
• Offset: 44 mm
• Brake mount: PostMount 200 mm (compatible up to 230 mm)
• Mudguard compatibility: FOX 36/38 mudguard (4-point direct mount)
• Colour: Black
• Delivered with a star nut, brake hose guide, 2 volume spacers and user manual

Weight from 1920 g
