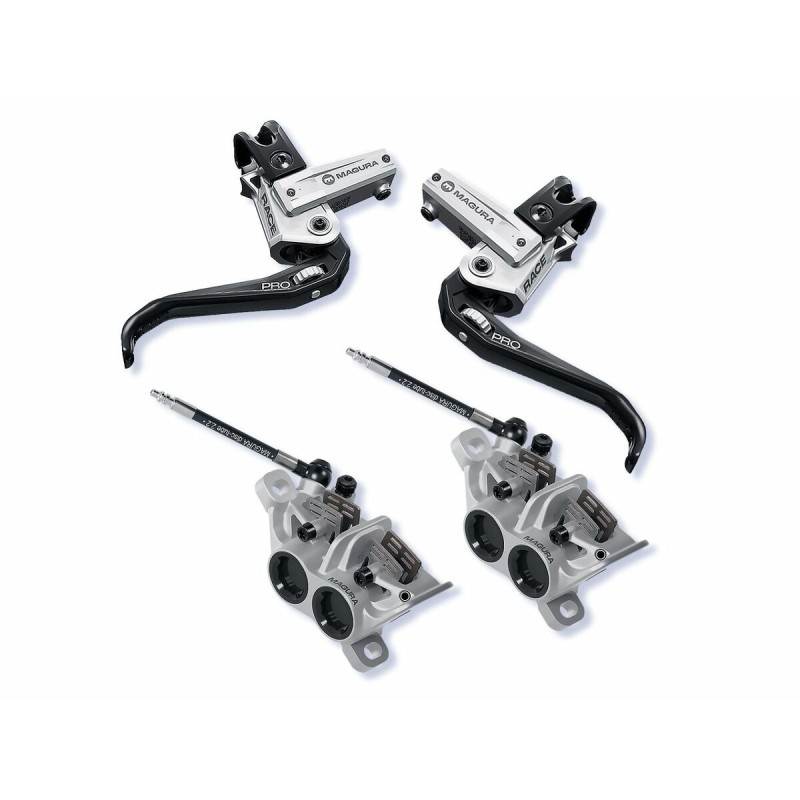

Magura Race Pro Disc Brake Set

MAGURA Race Pro MTB Disc Brake Set

The MAGURA Race Pro stands as the most powerful, stiffest, and most precise disc brake ever engineered by the German brand. Specially developed to meet the extreme demands of MTB riders (Cross-Country, All-Mountain, Enduro, Downhill, and E-MTB), this high-end forged and CNC-machined aluminium set combines phenomenal stopping power with an ultra-light weight of just 310 g per brake (1 m hose).

A true masterpiece of engineering, the Race Pro features a 12 mm radial master cylinder paired with a compact axial oil reservoir to clear space and tidy up the cockpit. The 4-piston caliper houses 19 mm pistons that lower hydraulic pressure within the system. This architecture limits hose expansion to deliver an instantly defined bite point, consistent feel, and 16% more braking power than the GUSTAV PRO. Thanks to an overall system stiffness increased by 20% compared to the MT7 and a ball-bearing mounted lever, modulation is perfectly linear, drastically reducing arm pump.

On the practical side, the EASY LINK coupling technology with sealed valve allows you to insert and disconnect the hose from the master cylinder at will without special tools, making internal cable routing effortless. The reinforced bridge caliper uses high thermal resistance MDP 13 brake pads and features a continuous bleed channel for bubble-free maintenance.

Highlights

• CNC Machining & Skeletonisation: One-piece forged lever body and caliper, CNC post-machined for an exceptional weight-to-stiffness ratio.
• Extreme Power: Combination of a 12 mm radial master cylinder and four 19 mm pistons providing maximum stopping power with minimal finger effort (+16% vs Gustav Pro).
• System Stiffness: Lever flex and hydraulic expansion reduced to a minimum for an ultra-firm and predictable feel (+20% vs MT7).
• Ball-Bearing Lever & Toolless Reach Adjust: Maximum actuation smoothness to combat arm pump, featuring manual Reach Adjust.
• EASY LINK Connection with Sealed Valve: Quick hose disconnection at the master cylinder without oil leakage for simplified internal routing.
• MDP 13 Pads: Expanded friction surface offering enhanced thermal resistance and extended lifespan.
• Shiftmix IG Clamp: Two-piece clamp compatible with direct mounting of dropper post remotes and gear shifters.
• Axial Oil Reservoir: Compact layout saving handlebar space for a clean cockpit.
• Durability & Maintenance: Replaceable/repairable bearing, piston, and seal kits, backed by MAGURA's 5-year leak-proof guarantee.

Specifications

• Braking Type: Hydraulic Disc Brake (Front + Rear Set)
• Calipers: 4-piston monobloc (19 mm) in forged & CNC-machined aluminium
• Master Cylinder: Forged & CNC-machined aluminium with 12 mm radial piston
• Lever: CNC aluminium PRO lever mounted on ball bearings
• Reach Adjust: Toolless
• Included Pads/Lining: MDP 13 SILVER
• Hose Connection: EASY LINK sealed valve with rotatable banjo on caliper
• Brake Hose: MAGURA Disctube 2.2 (2200 mm length)
• Mounting Clamp: Two-piece aluminium compatible with Shiftmix IG
• Rotor Compatibility: 2.0 mm thick rotors (MDR-S 2.0, MDR-P, MDR-C) from 180 to 220 mm
• Finish: Matte silver and black (laser-etched graphics)
• Manufacturer Warranty: 5-year leak-proof guarantee
• Discipline: DH, Enduro, Trail, E-MTB, CC
• Article Reference: 2703384
• EAN Code: 4055184044919

Box Contents

• 1x Right MAGURA Race Pro brake
• 1x Left MAGURA Race Pro brake
• Included accessories

Brake Net Weight: 310 g (with 1 m hose)
Manufacturer Pack Net Weight: 1.3 kg

Important Information

This set is sold without brake rotors or caliper adapters. To benefit from the manufacturer's maximum recommended performance and to validate the warranty, this brake set must be paired with compatible MAGURA 2.0 mm thick rotors (MDR-S 2.0, MDR-P, or MDR-C ranges; 180 mm to 220 mm sizes) and the appropriate Postmount / IS adapters for your frame and fork standards.
