Get raw power and total control with the Shimano Deore XT M8220 brake kit. Specifically developed for the demands of Enduro, All-Mountain, and e-MTB riding, this 4-piston Upgrade Kit delivers sharp braking, excellent heat management, and rock-solid reliability on aggressive descents.
Ultimate braking power and precision for Enduro, technical Trail, and e-MTB: Control, thermal management, and reliability
This Shimano Deore XT M8220 brake kit is the ideal upgrade for riders who demand the most from their Enduro, hard-charging All-Mountain, and electric-assist mountain bikes (e-MTBs). Designed to handle long, steep descents and intense use, this Upgrade Kit delivers phenomenal stopping power combined with pinpoint modulation—without requiring a complete drivetrain replacement. The 4-piston BR-M8220 calipers, paired with the ergonomic BL-M8200 levers, ensure a crisp bite, a consistent brake feel, and optimal heat dissipation. Whether you're riding timed courses or technical mountain trails, the XT M8220 group gives you the confidence of a high-performance braking system that’s durable and easy to modulate. The J-Kit (Junction-Kit) system simplifies installation, especially on frames with internal hose routing.
Shimano Deore XT M8220 Upgrade Kit Highlights
Superior stopping power designed to handle downhill speeds and the inertia of e-MTBs.
Fine modulation for precise lever control on steep, technical sections.
High-strength aluminum levers deliver excellent durability for aggressive mountain biking.
Rigid 4-piston calipers provide instant response and maximum durability.
J-Kit system simplifies installation and internal hose routing.
Technical Specifications
BL-M8200 Master Cylinder
Body material: Aluminum
Lever material: Aluminum (high rigidity for Enduro and e-MTB use)
Lever ergonomics: 2-finger (optimized for grip and leverage)
Mount: I-Spec EV-compatible clamp (wide adjustment range and clean cockpit)
Reach adjustment: Tool-free (quick-adjust dial)
Contact point adjustment: Manual (Free Stroke)
Technologies: - Free Stroke: Adjusts free stroke for a customized bite point - I-Spec EV: Rigid integration and wide angle adjustment range for the shifter - ServoWave Action: Short initial lever stroke for quick pad engagement and increased power
Fluid: Shimano LV low-viscosity mineral oil (SM-LVOIL)
Color: Deore XT Series Black
BR-M8220 Caliper
Body material: Aluminum
Design: High-rigidity 4-piston construction for Enduro and e-MTB use
Number of pistons: 4 pistons
Mount type: Postmount
Technologies: - One Way Bleeding: Unidirectional bleeding helps prevent air bubbles from becoming trapped - Ice Technologies: Reduces heat buildup through heat-dissipating finned pads
Fluid: Shimano LV low-viscosity mineral oil (SM-LVOIL)
Pads: 2x P04C-MF metal pads (with fins) pre-installed + 2x P03A-RF resin pads (with fins) included as spares
Rotor compatibility: 160 mm / 180 mm / 203 mm / 220 mm (Recommended: Shimano RT-MT800)
Color: Deore XT Series Black
Hoses
Model: SM-BH90
Lengths: 1000 mm (Front / Left) and 1700 mm (Rear / Right)
Color: Black

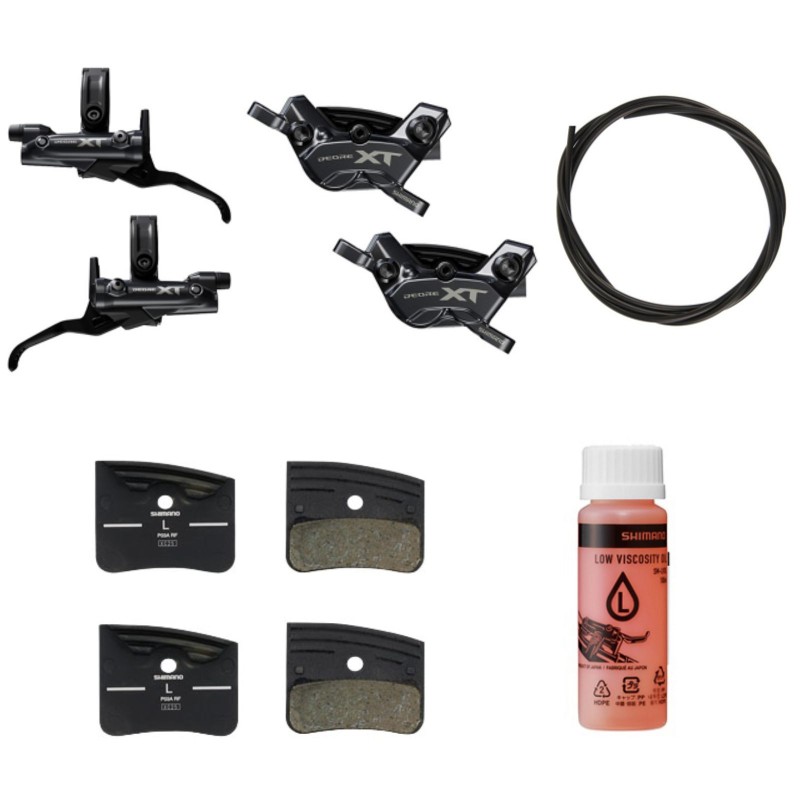

What's in the Box
1x Complete front brake (BL-M8200 lever + BR-M8220 caliper + 1000 mm hose)
1x Complete rear brake (BL-M8200 lever + BR-M8220 caliper + 1700 mm hose)
2 pairs of P04C-MF metal pads (pre-installed, with cooling fins)
2 pairs of P03A-RF resin pads (spares, with cooling fins)
1 bottle of Shimano low-viscosity mineral oil, 100 ml (SM-LVOIL)
2 connector inserts (olives / inserts) for adjusting hose length
Product IDs
Part number: IBRM8220UPGKIT2 / EAN: 4550170997649 / UPC: 192790997643
Installation and Practical Information
J-Kit Technology: Pre-bled assembly supplied with the hose disconnected from the lever to make internal frame routing easier. If the procedure is followed carefully, the connection can generally be made without a full bleed.
Rotor compatibility: Caliper is compatible with 160 mm, 180 mm, 203 mm, and 220 mm rotors (standard Shimano thickness).
Adapters not included: Brake adapters are not included. Be sure to order the Postmount adapters compatible with your frame and fork.
