Optimize your braking with the Shimano XTR M9200 kit. Carbon levers, monoblock calipers, and ServoWave technology for ultimate XC control at Pure Bike.
SHIMANO XTR M9200 - Hydraulic Braking Kit (Upgrade Kit) - the pinnacle of MTB braking for Cross-Country and Trail: Precision, Lightness and Reliability.
This Shimano XTR M9200 brake kit represents the ultimate in Japanese engineering for XC (Cross-Country) and Trail riders. Designed for those who demand uncompromising performance, this Upgrade Kit allows you to radically transform your bike's handling. Whether you're a competitor looking to shave seconds off descents or an enthusiast wanting a consistent brake feel, the M9200 offers exceptional modulation. Thanks to its 2-piston calipers and ergonomic levers, you benefit from immediate braking power and optimal thermal management, even on the most demanding rides. The integration of J-Kit technology greatly facilitates assembly, especially for frames with internal cable routing.
Highlights of the Shimano XTR M9200 upgrade kit
Increased braking power with reduced effort at the fingertips.
Ultra-precise modulation for perfect control on technical and slippery terrain.
Lightweight and rigid design optimized for pure performance.
Reduced lever stroke for faster braking engagement.
Optimized heat management thanks to titanium brake pad back plates.
BL-M9200 Master Cylinder Specifications
Body material: Magnesium (for maximum weight savings)
Lever material: Carbon fiber
Lever size: 1 finger (optimized for XC)
Mounting: I-Spec EV compatible clamp (wide adjustment range and increased rigidity)
Reach Adjust: Tool-less or via key
Contact point adjustment: Manual (Free Stroke)
Technologies: - Free Stroke: Adjustment of the dead stroke for a personalized engagement - I-Spec EV: 60° rotation angle for the shifter and more rigidity thanks to the secondary support point on the handlebar - ServoWave Action: Short stroke for quick contact, then multiplied power for modulation
Oil: Shimano LV low viscosity mineral oil
Color: Series Gray XTR
BR-M9200 Caliper Specifications
Body material: Aluminum
Construction: Monoblock (machined from a single piece) for extreme rigidity
Number of pistons: 2 pistons (ceramic to insulate from heat)
Mounting: Postmount
Technology: - One Way Bleeding: One-way bleeding to prevent air bubbles - Ice Technologies: Compatibility with finned pads and rotors (although this kit is delivered with non-finned pads)

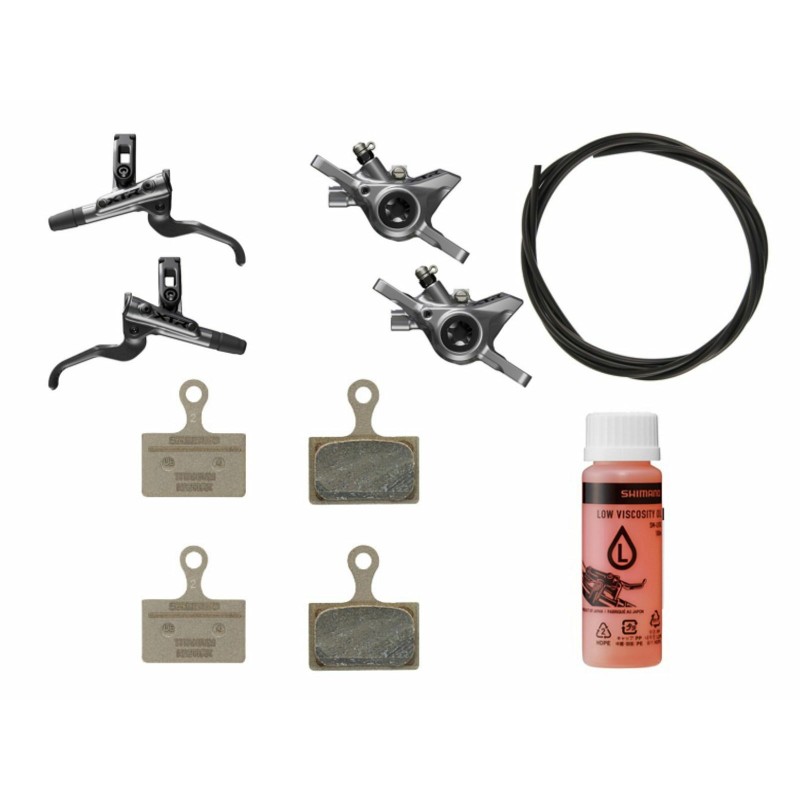

1x Complete front brake (BL-M9200 lever + BR-M9200 caliper + 1000 mm hose)
1x Complete rear brake (BL-M9200 lever + BR-M9200 caliper + 1700 mm hose)
2 pairs of K04Ti-MX metallic pads (installed, titanium support, no fin)
2 pairs of K05Ti-RX resin pads (spare)
1 bottle of Shimano 100 ml mineral oil (low viscosity SM-LVOIL)
2 connector inserts and olives for hose shortening
Product Reference
Reference: IBRM9200UPGKIT2 / EAN: 4550170997595
Important Information
J-Kit System: The system is delivered "open" at the lever to facilitate internal hose routing in the frame. Bleeding is generally not necessary after connection if the operation is done carefully.
Rotor Compatibility: For optimal performance, we recommend using Shimano RT-MT900 rotors.
Adapters not included: Be sure to order the Postmount adapters corresponding to your frame and fork.
Shimano Weight: 312g (per complete brake, standard 800mm setup with 160mm rotor)
