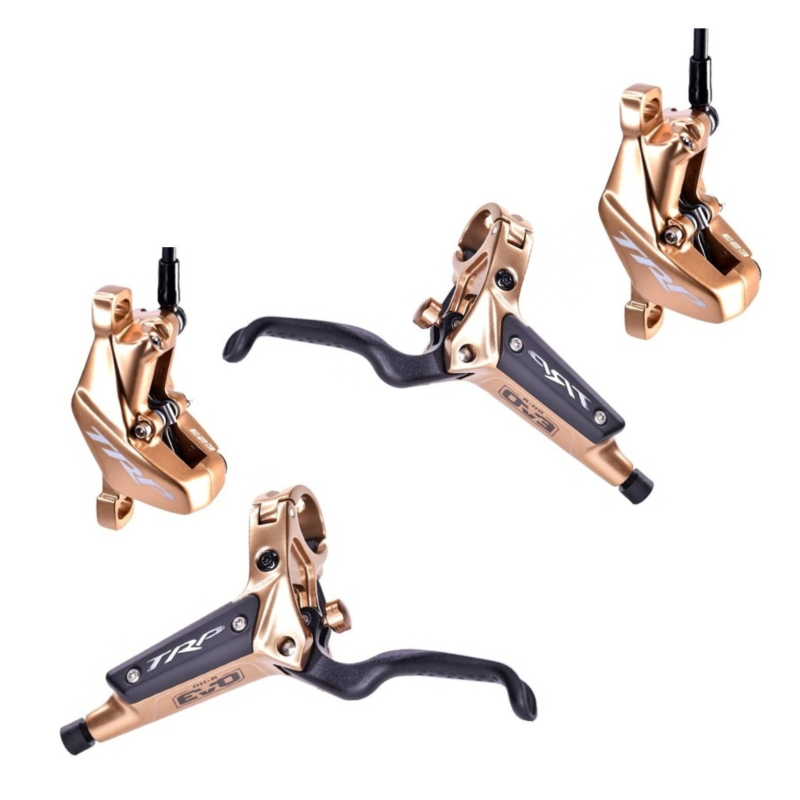

Trp DH-R EVO Gold Disc Brake Set

TRP DH-R EVO Brake Set: Power, Modulation, and Heat Resistance—the Ideal Alternative for the Most Extreme Mountain Biking

The TRP DH-R EVO (HD-M846) brake delivers maximum power while maintaining excellent modulation and heat resistance, making it ideal for the most extreme riding. It’s perfectly suited to 29" downhill bikes, long-travel enduro bikes, and, of course, the latest-generation e-bikes. The DH-R EVO builds on what made the G-Spec famous, but now features a new lever with an improved hydraulic ratio, a new hose, new brake fluid, new pads, and compatibility with 2.3 mm rotors up to 223 mm in diameter.

Technical Specifications

Master Cylinder

• New, more ergonomic design (not ambidextrous)
• New 9 mm piston optimized for one-finger braking
• External reach adjustment
• I-SPEC II compatible
• Compatible with I-SPEC EV / SRAM MatchMaker / TRP shifter using separately sold adapters
• High-performance mineral oil withstands temperatures up to 230 degrees
• Gold color

Caliper

• 4-piston caliper
• Very lightweight hybrid pistons
• Top-loading pads for easier maintenance
• 5 mm diameter hose offers greater resistance to high temperatures
• Hose length (front and rear): 190 cm
• Next-generation organic brake pads offer improved wear resistance and reduced noise
• Optimized for e-bikes (improved stability, better braking response, and better heat dissipation)
• Compatible only with 2.3 mm thick rotors (such as TRP RS01E and RC01E)
• Gold color

Included in the Kit

• 1 TRP DH-R EVO front brake with left lever — bled and ready to use
• 1 TRP DH-R EVO rear brake with right lever — bled and ready to use
• 2 hose fitting kits for shortening the hose
• 2 pairs of blue organic brake pads (installed)
• Caliper mounting hardware

Rotors and adapters sold separately

Brake weight: 310 g (front brake without rotor or adapter)
