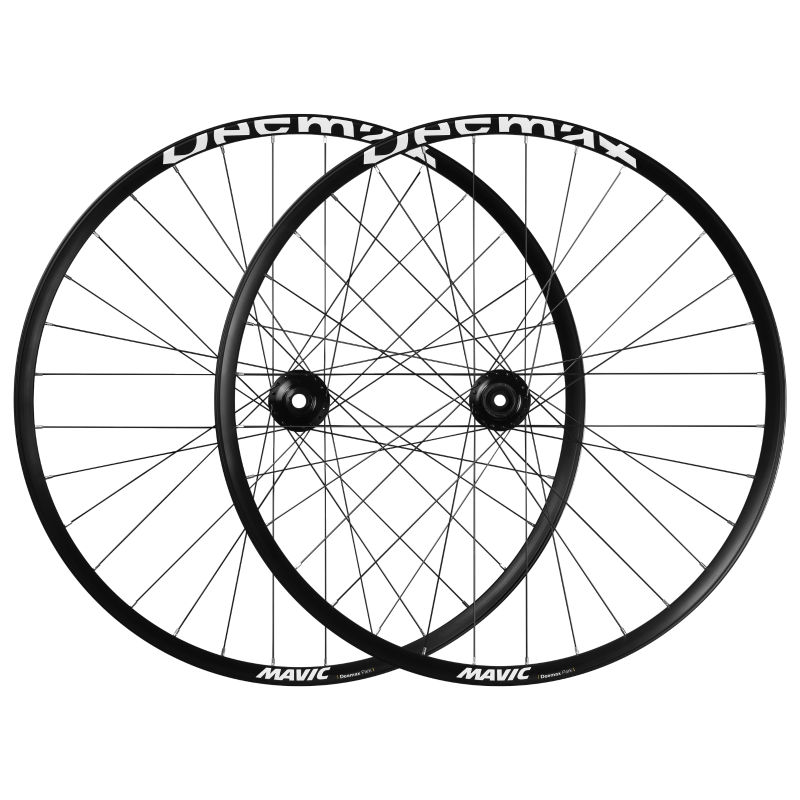

Mavic Deemax Park 26 Wheelset

The Mavic Deemax Park 26" wheelset is designed to handle the hardest landings and most extreme impacts in Freeride, Downhill (DH), Dirt, and aggressive Enduro (ASTM Category 5). Developed in collaboration with riders from the Mavic Team, this ultra-durable aluminum wheel featuring Maxtal is built with 32 J-Bent spokes and Pinch Flat Protection (PFP) technology to reduce the risk of flats by 20%. Versatile, easy to repair, and built to last, it lets you take on doubles and Gravity trails with complete peace of mind.

Mavic Deemax Park 26" wheelset highlights

• Ultra-durable 32-spoke design: 3-cross lacing with 32 J-Bent steel spokes for maximum resistance to hard landings and lateral forces.
• PFP (Pinch Flat Protection) technology: Wider rim wall profile drastically reduces the risk of cuts and pinch flats.
• 30 mm internal width: Asymmetric Maxtal alloy rim provides ideal tire support for wide tires (from 47 mm to 76 mm).
• CLASSIC ID360 hubs (24 teeth): Low-maintenance Instant Drive 360 freehub system (15° engagement), tool-free to disassemble and built to last.
• Mavic repairability and durability: Easy-to-replace J-Bent spokes, Tubeless rim tape installed at the factory, and 2 spare spokes included per wheel.
• Versatile wheelset & convertible axles: Supplied with adapters to convert the 20x110 mm front axle to 15x110 mm Boost.

Technical specifications

• Use: Freeride, Downhill (DH), Dirt, Enduro, Bike Park (ASTM Category 5).
• Wheel size: 26" (ETRTO size: 559x30TC).
• Rim material: Maxtal aluminum alloy (SUP welded and machined joint).
• Rim height: 22 mm.
• Internal width: 30 mm (asymmetric Tubeless Ready profile).
• Rim drilling: Traditional drilling (32 holes front and rear).
• Spokes: 32 round J-Bent steel spokes, 3-cross lacing.
• Hubs: CLASSIC aluminum design with QRM Auto sealed cartridge bearings.
• Freehub system: Instant Drive 360 (24-tooth ratchets / 15° engagement).
• Freehub body:
    - Shimano HG (with cassette spacer)
    - Sram XD
• Disc standard: 6-bolt (IS) mount only.
• Axle standards: Front 20x110 mm (convertible to 15x110 mm) / Rear 12x142 mm.
• Manufacturer's weight: 2,250 g per pair (Front: 1,005 g / Rear: 1,245 g).

Construction and materials

• Rims: 100% Maxtal aluminum alloy (SUP weld)
• Spokes: 100% steel (J-Bent)
• Spoke nipples: Steel with colorless ABS threadlock
• Hubs: Aluminum bodies and axles
• Bearings: Sealed cartridge (QRM Auto technology)

Maintenance tips

• Clean the wheels with fresh water after every bike park session (avoid using pressure washers directly on the hubs).
• Regularly check the tension of all 32 spokes to maintain wheel alignment and stiffness.
• ID360 hub maintenance: Remove the freehub body by hand without tools to clean and grease the 24-tooth ratchets.

Compatibility, tires, and installation

For optimal performance and safety on Gravity trails, be sure to follow the recommended tire pressure and tire specifications.

• Approved tire widths: Minimum tire width of 47 mm (1.85") and maximum of 76 mm (3.00").
• Maximum approved pressures: 47 mm tire: max 3.6 Bar / 52 PSI — 76 mm tire: max 2.45 Bar / 36 PSI.
• Weight limit: Maximum supported weight for the wheels: 150 kg (including bike weight).

Package contents and Tubeless setup

• Included accessories: User guide, UST rim tape (preinstalled), UST valves (not installed),, front axle adapters (20x110 mm to 15x110 mm), and 2 spare spokes per wheel.
• Tubeless Ready setup: With the rim tape preinstalled, install the included UST valve, fit your Tubeless tire, and add the recommended amount of sealant.
