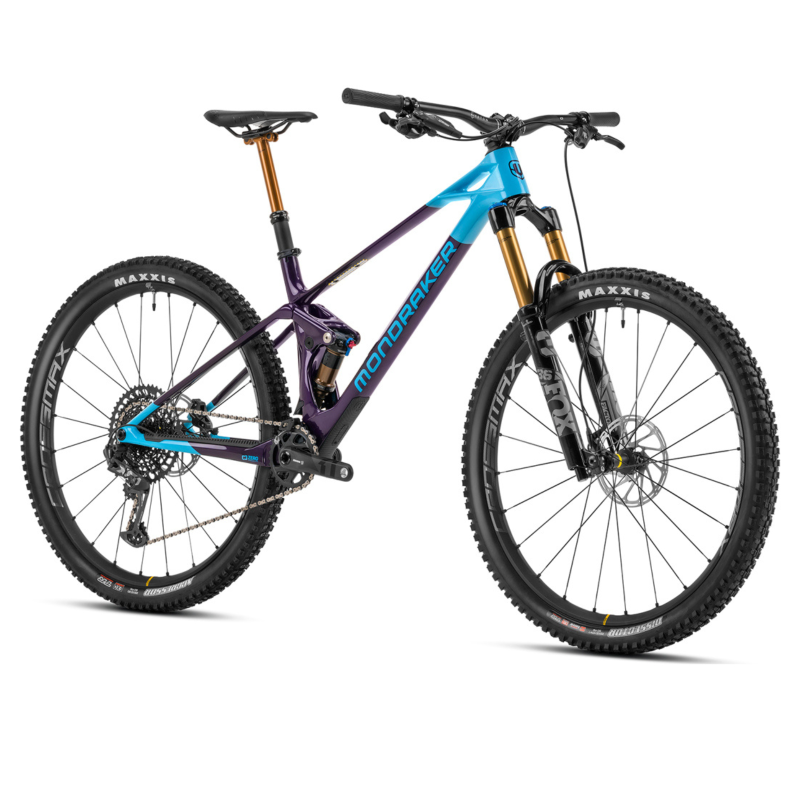

Mondraker Raze Carbon RR 29" Mountain Bike - Size M

Between the F-Podium for XC riding and the Foxy for Enduro, there was a missing piece. Mondraker has filled that gap with the all-new Raze Carbon, here in its RR version, featuring 150 mm of travel up front and 130 mm at the rear, placing it in the Trail category. This blend of two worlds offers excellent climbing efficiency and more downhill performance than a traditional XC bike. You set the limits on this Raze.

Frame features

• Material: Stealth Air Carbon Forward Geometry
• Wheel size: 29"
• Headset type: Designed to accommodate 40x52x7 bearings with internal cable routing
• Bottom bracket type: BSA 73 mm
• Rear axle size: Boost 12x148 mm
• Rear brake mount: Postmount
• Cable routing: Internal
• Compatible with internally routed dropper seatposts
• ISC05 mount
• Integrated rear shock mudguard
• Technology:
    - Forward Geometry
    - One-piece CSC link for Trunion shock
    - Internal HHG cable routing
    - Enduro Max cartridge bearings
• MIND telemetry system available as an option
• Sizes:
    - S
    - M
    - L
    - XL
• Derailleur hanger: SRAM UDH
• Color: Purple / Blue
• Frame warranty (register on the Mondraker website):
    - Front triangle: Lifetime
    - Rear triangle: 2 years

Components

• Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150 mm
• Shock: Fox Float DPS LV EVOL Factory Kashima, 205 x 57,5 mm
• Headset: Acros semi-integrated (ZS56) for internal cable routing
• Stem: ONOFF Krypton FG 30 mm
• Handlebar: ONOFF Krypton Carbon 1.0, 800 mm, rise: 25 mm
• Grips: ONOFF Desert, single lock-on, 135 mm
• Seatpost: Fox Transfer Factory Kashima internally routed dropper seatpost 31.6
    - Travel size S: 125 mm
    - Travel size M: 150 mm
    - Travel size L  : 175 mm
    - Travel size XL: 175 mm
• Saddle: Fizik Antares R7
• Brakes:
    - Front: Sram G2 RS 180 mm
    - Rear: Sram G2 RS 180 mm
• Wheels:
    - Front: Mavic CrossMax XL S Tubeless Ready 29" Boost 15x110 mm
    - Rear: Mavic CrossMax XL S Tubeless Ready 29" Boost 12x148 mm
• Tires:
    - Front: Maxxis Dissector Tubeless Ready Exo 3C Maxx Terra 29x2.40 WT
    - Rear: Maxxis Agressor Tubeless Ready Exo 29x2.30
• Crankset: Sram X1 Carbon Eagle Boost 32T
• Bottom bracket: Sram DUB BSA 73 mm
• Chain: Sram GX Eagle 1x12v
• Rear derailleur: Sram X01 Eagle 1x12v
• Shifter: Sram GX Eagle 1x12v
• Cassette: Sram XG-1275 12v 10-52T
• Delivered WITHOUT pedals
• Optional Mind kit

Size information

• S: 1.55 to 1.70 m
• M: 1.67 to 1.80 m
• L: 1.75 to 1.88 m
• XL:  1.85 to 1.98m

Mondraker weight: 13.1 kg
