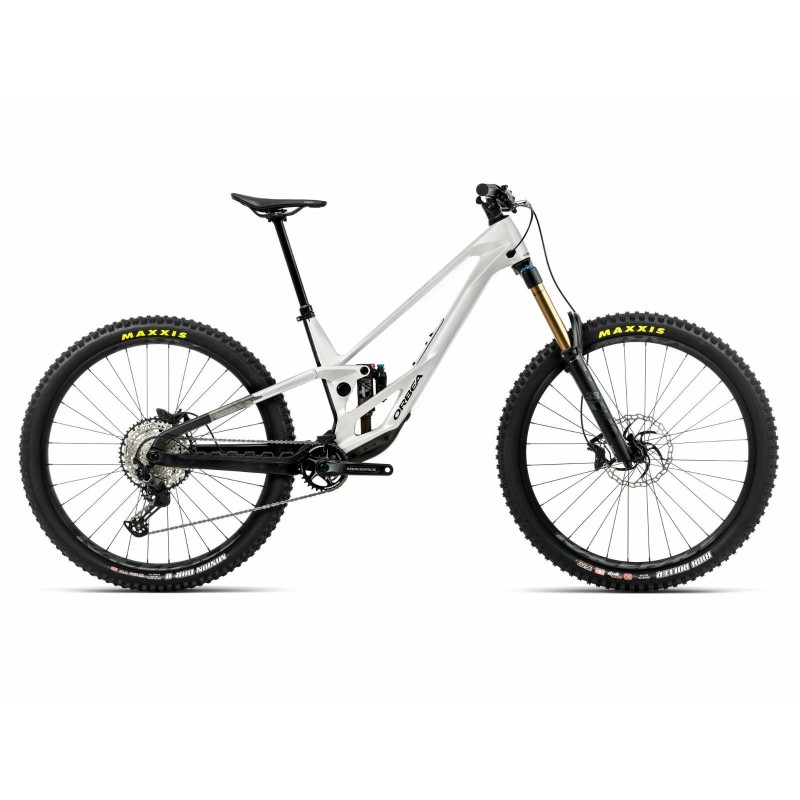

Orbea Rallon E10 442 Enduro Bike - White Chich / Diamond Black (Gloss)

Orbea Rallon E10 442: Master the Gravity

Born on the Enduro World Cup circuits and refined in the lab, the Orbea Rallon E10 is a "Gravity Bred" precision machine for those who live for the descent. With its massive 170mm rear and 180mm front travel, it shares its chassis and DNA with the DH version victorious at Bielsko-Biala. This isn't just an enduro bike: it's a downhill-bred chassis capable of transforming every technical run into a smooth, ultra-fast line.

Built around the OMR carbon frame, it features kinematics specifically tuned to maintain optimised anti-squat. Thanks to the GravityLink linkage and the Attitude Adjust system, the suspension remains fully active and glued to the ground, even under the heaviest braking.

Its Steep’N’Deep philosophy provides an ultra-low standover height, giving you total freedom of movement to steer with your body. The 442mm position is the go-to choice for riders seeking maximum agility in tight corners and superior handling on the trail. Combined with a Mullet (27.5" rear wheel) or full 29" setup, it becomes the most versatile enduro tool on the circuit.

Key technical innovations:

• Targeted Rigidity: An asymmetric structure optimised to handle the most extreme stresses.
• FOX 38 Fork: The absolute enduro benchmark for surgical steering precision.
• GravityLink Mullet: Allows for a Mullet setup without ruining the geometry thanks to the dedicated shock extension.
• World Cup DH Heritage: A chassis developed alongside Orbea's downhill programme, ensuring unfailing stability at high speeds.

The Rallon E10 features a Shimano SLX 12-speed drivetrain, Fox Factory suspension with the prestigious Kashima coating, Race Face AR 30c wheels, and 4-piston Shimano M6120 brakes for relentless stopping power.

Key Highlights:

• Factory Performance Suspension: The Fox 38 and Float X Factory duo with Grip X2 damper for incomparable trail feel.
• Concept Steep'N'Deep: Long-travel dropper post compatibility (up to 230mm) for total freedom of movement.
• Attitude Adjust: Adjust your geometry (Low/Lower) with a simple turn of a key.
• GravityLink Kinematics: Increased small-bump sensitivity and perfect end-stroke progressivity.
• Mullet Ready: Optimised for full 29" or mixed (29"/27.5") wheel sizes.
• Lockr & Tools Integration: Internal frame storage and a multi-tool tucked into the rear axle.

Technical Specifications

• FRAME: Orbea Rallon OMR Carbon, Pure Gravity Geometry, 442mm, Boost 12x148, ISCG05
• SHOCK: Fox Float X Factory 2-Pos Evol LV Kashima custom tune 205x62.5mm
• SHOCK MOUNT: Enduro 29 GravityLink
• FORK: Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
• HEADSET: Alloy 1-1/2", Black Oxidated Bearing
• CRANKSET: Race Face Aeffect 32t
• SHIFTERS: Shimano SLX M7100 I-Spec EV
• CASSETTE: Shimano CS-M7100 10-51t 12-Speed
• REAR DERAILLEUR: Shimano SLX M7100 SGS Shadow Plus
• CHAIN: Shimano M6100
• CHAINGUIDE: e*thirteen CL55 30-36t Black
• HANDLEBAR: OC Mountain Control MC30, Rise 20, Width 800
• STEM: OC Mountain Control MC11 Alu SL, 0º
• COMPUTER MOUNT: OC Computer Mount CM-05, Garmin/Sigma
• BRAKES: Shimano M6120 Hydraulic Disc (4-piston)
• WHEELS: Race Face AR 30c Tubeless Ready
• FRONT TYRE: Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGripp
• REAR TYRE: Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
• SEATPOST: OC Mountain Control MC22, 31.6mm, Dropper
• REMOTE: Shimano SL-MT500 I-Spec EV
• SADDLE: Fizik Terra Ridon X5 145mm
• STORAGE: Integrated storage compartments (LOCKR)
• ACCESSORIES: Rear axle lever with integrated multi-tool (Hex 6 + valve core removal)

Size Guide (Indicative)

• S: 150 to 170 cm
• M: 160 to 180 cm
• L: 170 to 190 cm
• XL: 180 to 200 cm
