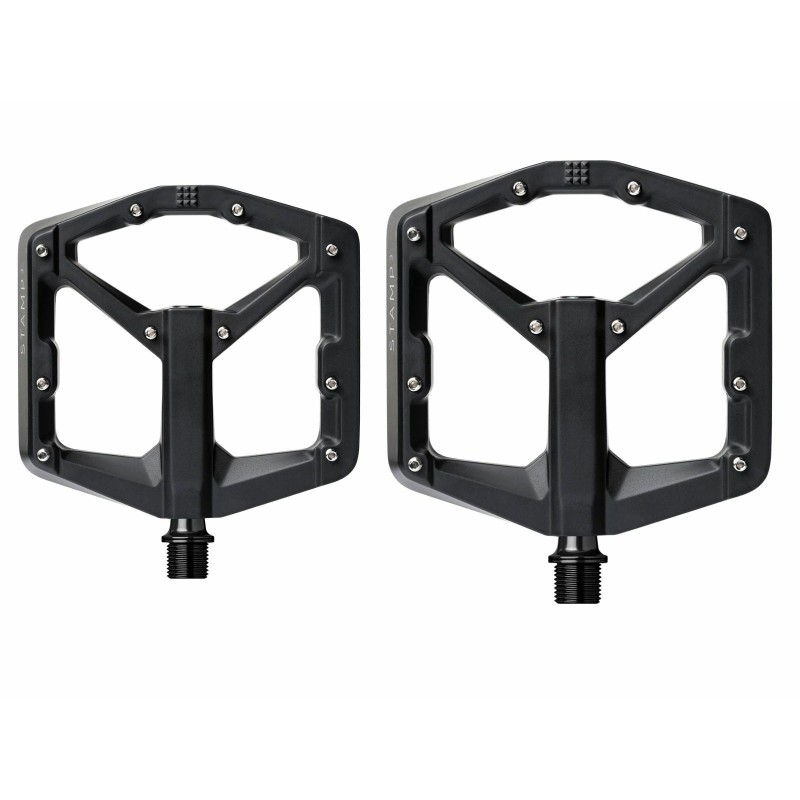

Crank Brothers Stamp 3 pedals Magnesium Black

With the new Stamp 3 Pedal, Crank Brothers wanted to develop the optimal interface between pedal and shoe. The analyzed outsole profiles from the top mountain bike shoe brands and discovered two distinct surface areas to optimize the shoe/pedal interface for the entire range of shoe size. So they designed the Stamp as a pedal with minimum profile and maximum concavity  in multiple size for optimal shoe/pedal interface.

Features :

• Spindle : forged scm415 chromoly steel
• Body : Magnesium
• Profile : 16 mm
• Size in S : 100mm x 100mm (optimized for shoes 5-10 // 37-43)
• Size in L : 114mm x 111mm (optimized for shoes 10-15 // 43-49)
• Inner bearing : igus LL-glide bearing
• Outer bearing : Double Cartridge Bearing
• Adjustable pins : 10 per side
• Pin length : 10 mm
• Warranty : 5 years

Weight : 386 g (per pair in size S)
