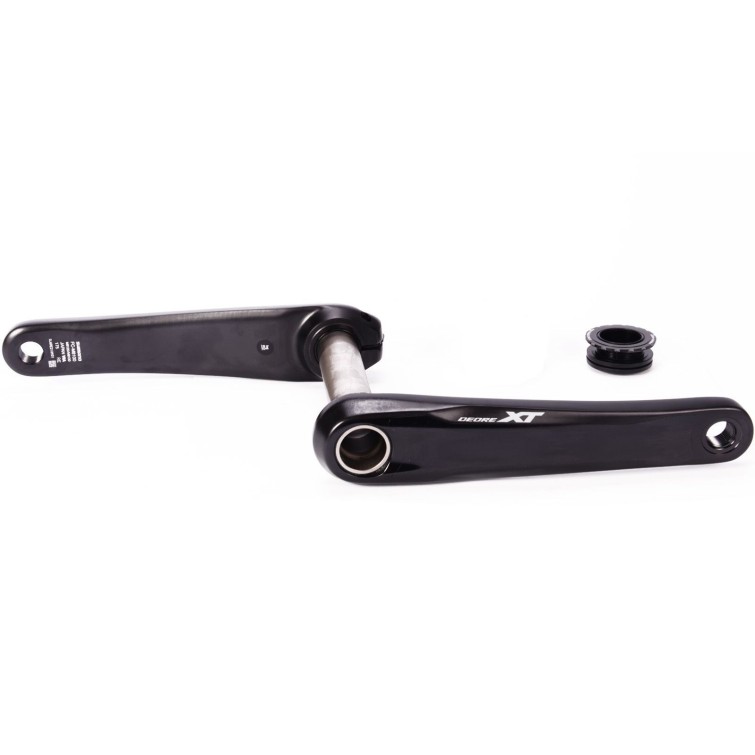

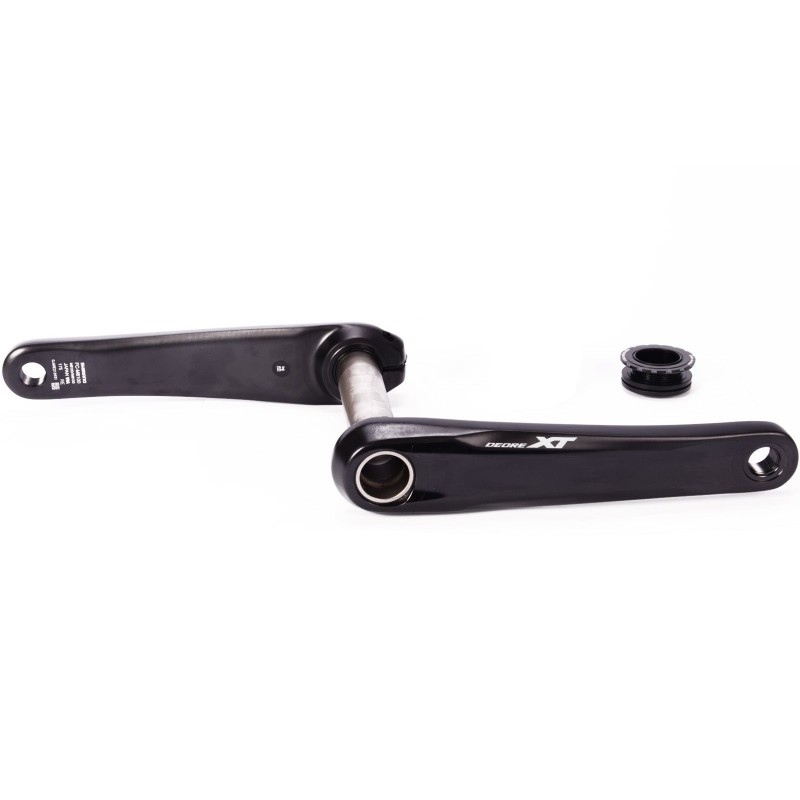

Shimano Deore XT M8120 Crank Arms 12 speed (QFACTOR 178 mm)

The SHIMANO DEORE XT FC-M8120 crank arms features an entirely new construction, using direct mount chainrings interface and a 178mm Q-factor. The hollow forged crank maximizes power transfer while limiting weight. Rigid and lightweight , the Shimano XT FC-M8120 crank arms are designed for aggressive trail riding

Features

• Model : FC-M8120-1
• Serie : Deore XT
• Cassette compatiblity : 12 vitesses
• Technologies : Hollowtech II
• Chainring mount : direct mount
• Chainring : direct mount 28-30-32-34-36 Teeth (sold separately)
• Arm length : 165, 170, 175 mm
• Axle diameter : 24 mm
• QFactor : 178 mm
• Recommended BB  : BB-MT800 ou BB-MT800-PA (vendu séparement)
• Chainline : 55 mm
• Threaded BB compatibilty  : 68-73 mm
• Press Fit BB compatibility : 89-92 mm
• Chain compatilbity : 12 speed Shimano (HG12) only
• Chainring compatibility : Direct Mount Shimano only (sold separately)
• Crank fixing bolt included
• TL-FC41 Specific tool is requiered for chainring installation (sold separately)

Included

• Shimano Deore XT M8120-1 Crank Arms
• Crank Arm Fixing Bolt
• Chainring Lockring

Weight : 628 gr in 32 T
