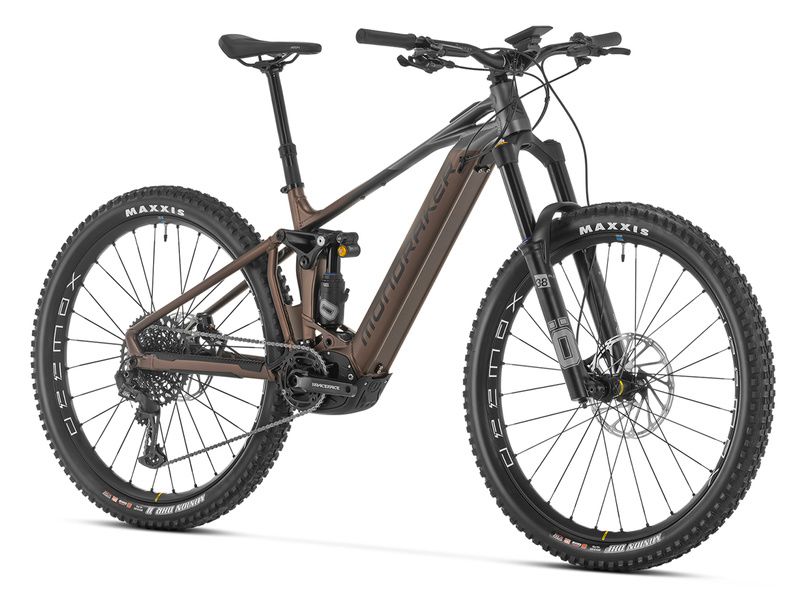

Mondraker Crafty XR - Bronze / Grey 2024

Mondraker 2024 Crafty XR includes ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process. It’s one of Mondraker priorities when it comes to our bikes. What’s more, the bike’s really agile on the trail which is much-needed in an eMTB. It all adds up to maximum fun and excellent value for money. It comes complete with Bosch’s Performance CX Line Smart Control motor, the all-new Mini Remote control and integrated System Controller.

Crafty XR features Ohlins Suspensions with 150 mm rear and 170 mm front travel, Mavic E-Deemax S wheels and Sram GX Eagle 12 speed drivetrain .

Frame

• Material: 6061 Alloy Stealth Evo
• e-Bike Optimized Zero Suspension System
• Non removable battery
• Forward Geometry
• Rear travel : 150 mm
• Headtube: Tapered
• MAX capacity sealed bearings
• Oversize 17mm axles
• Wheel size: 29''
• Brake Mount: PM 7" (Postmount 180 mm)
• Rear axle: Boost 12x148 mm
• Colour: Bronze / Grey

• Sizes:  S - M - L et XL
• Lifetime warranty if registered here https://www.mondraker.com/es/en/warranty

Components

• Motor : Bosh Performance Line CX Gen 4 85Nm Smart System
• Battery: Bosh PowerTube 750Wh
• Computer: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

• Fork : Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

• Rear Shock : Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
• Headset : Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem : Onoff Krypton FG 30mm 0º, CNC alloy, 31.8mm barbore
• Handlebar : Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips : Onoff Desert, 1lock-on, 135mm
• Dropper Seatpost : OnOff Pija, diameter 31.6mm
    - S size: 405 x 95-125 mm
    - M size : 458 x 120-150 mm
    - L size: 498 x 140-170 mm
    - XL size : 558 x 170-200 mm

• Saddle: FIZIK Terra Aidon X5 145mm
• Front brake : Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear brake : Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Front wheel: Mavic E-Deemax S 29 15x110 mm
• Rear wheel: Mavic E-Deemax S 29 12x148 mm
• Front tire : Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• Rear tire : Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
• Crankarms : Race Face Aeffect ebike, 165mm
• Chainring : Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Chain : Sram NX Eagle, 12s, Powerlock
• Cassette : Sram XG-1275, 10-52T, 12s
• Rear derailleur : Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shifters : Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
• Hanger : M068
• Pedals : Whithout

Mondraker weight : 25.3 kg

Size infos

• S : 1.55 a 1.70 m
• M : 1.67 a 1.80 m
• L : 1.75 a 1.88 m
• XL :  1.85 a 1.98m
